Balanta preambalare KERN IFC 6K1DM-PREPACK

The complete solution for prepack processes, with optional verification

Capacitate de cantarire [Max]: 3000 g; 6000 g

Precizie [d]: 1 g; 2 g

Greutate minima numarare piese: 10 g

Suprafata de cantarire: 150×170 mm

Greutate minima [Min]: 100 g; 200 g

Material platan de cantarire: stainless steel

Repetabilitate: 1 g; 2 g

Linearitate: ± 1 g; 2 g

Timp de stabilizare: 3 s

SPECIFICATII TEHNICE: Fisa Tehnica

BROSURA PRODUS: Brosura Produs

Categorie de produse: Pachet balanta si software

Clasa de precizie: III

Dimensiuni carcasa (fara piese detasabile): 163×245×80 mm

Greutate neta: 2,8 kg

Cod Produs: IFC 6K1DM-PREPACK Ai nevoie de ajutor? 0799938183 / 0729668980

Standard:

GLP/ISO Protocol
Alibi memory
Percentage determination function
Units switchable
Hold function (average value)
Universal plug-in power supply
Weighing principle Strain gauges
Data interface KERN Universal Port (KUP)
Interface command set KERN Communication Protocol (KCP)
Sum function
Measuring with tolerance range (checkweighing function)
Data Interface USB
Value & time
Package shipment 1 day
EasyTouch compatible
Load Cell: Protection against dust and water splashes IP65
External adjustment
Piece counting function

Optionale:

Rechargeable battery
Accredited calibration (DKD)
Data interface RS-232
Data Interface Bluetooth
Data Interface WiFi
Network interface
Analogue interface

Fabrica:

Descriere

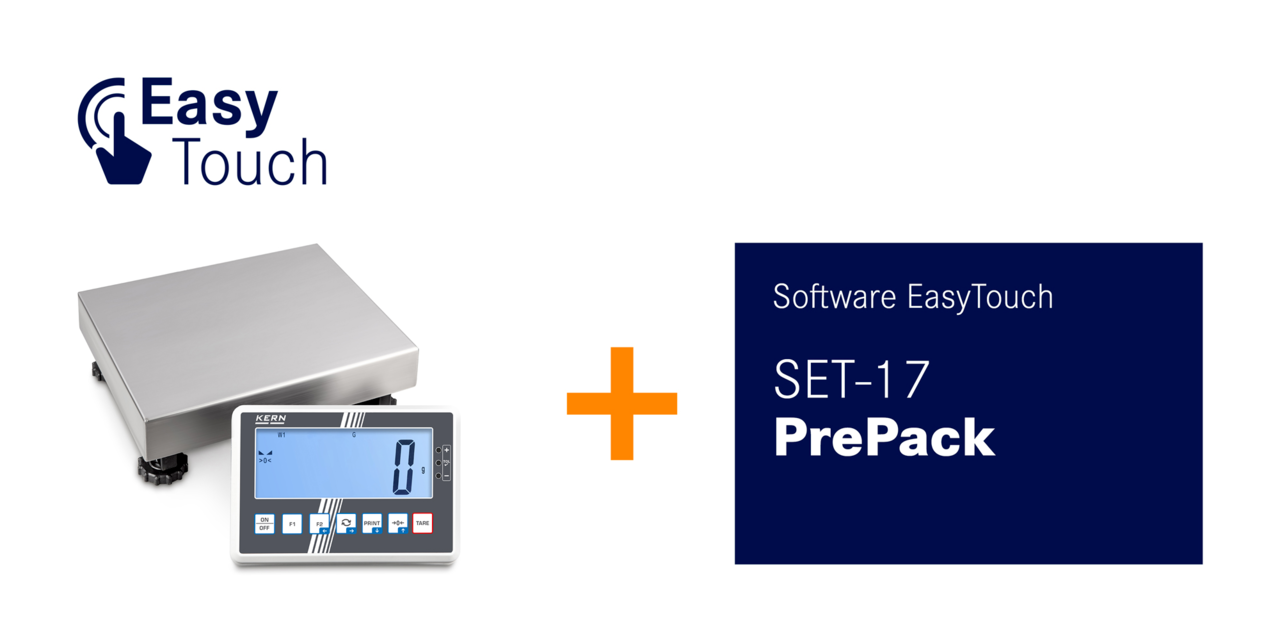

  • When used together, the KERN IFC IoT-Line platform scale and EasyTouch PrePack offer the ideal solution for prepack processes. Legal regulations mean that you only have to check random samples rather than having to check the weights of all mechanically packaged foodstuffs. This requires an accurate balance and a complex statistical calculation. This complete solution for prepack processes combines both requirements in one user-friendly operation
  • With EasyTouch SET-17 PrePack you can carry out all kinds of prepack processes. After every check, the software clearly indicates whether the result is “OK” or “NOK”. In addition, it allows you to adjust the filling or bottling quantity in order reduce losses due to ovefilling to a minimum.
  • As an alternative to random sampling checks, the software also enables full checking of all filled products, including individual price labelling. For this purpose, EasyTouch offers a powerful label printing function which runs automatically in the background in production mode
  • The bundle contains:
    - IoT-Line platform scale KERN IFC
    - Software EasyTouch SET-01 Base
    - Software EasyTouch SET-17 PrePack
    - USB interface adapter KERN KUP-03
    - Memory module (alibi memory) KERN YMM-04
Vezi mai mult

Temperatura ambientala (max): 35 °C

Dimensiune platan: 300×240×109 mm

Latimea carcasei: 163 mm

Adancimea carcasei: 245 mm

Inaltimea carcasei: 80 mm

Latime platforma de cantarire: 300 mm

Inaltime platforma de cantarire: 109 mm

Latime suprafata de cantarire: 150 mm

Adancime suprafata de cantarire: 240 mm

Sistem de cantarire: Strain gauge

Timp de incarcare baterie: 8 h

Tip baterie: 3 V CR2032

Tensiune de intrare alimentare: 100 V - 240 V, 50 / 60 Hz

Tip adaptor alimentare: EURO,UK,US,CH

Tip sursa de alimentare: Power adapter

Umiditate ambientala (max): 80 %

Greutate bruta: 3,4 kg

Dimensiuni ambalaj: 415×695×228 mm
