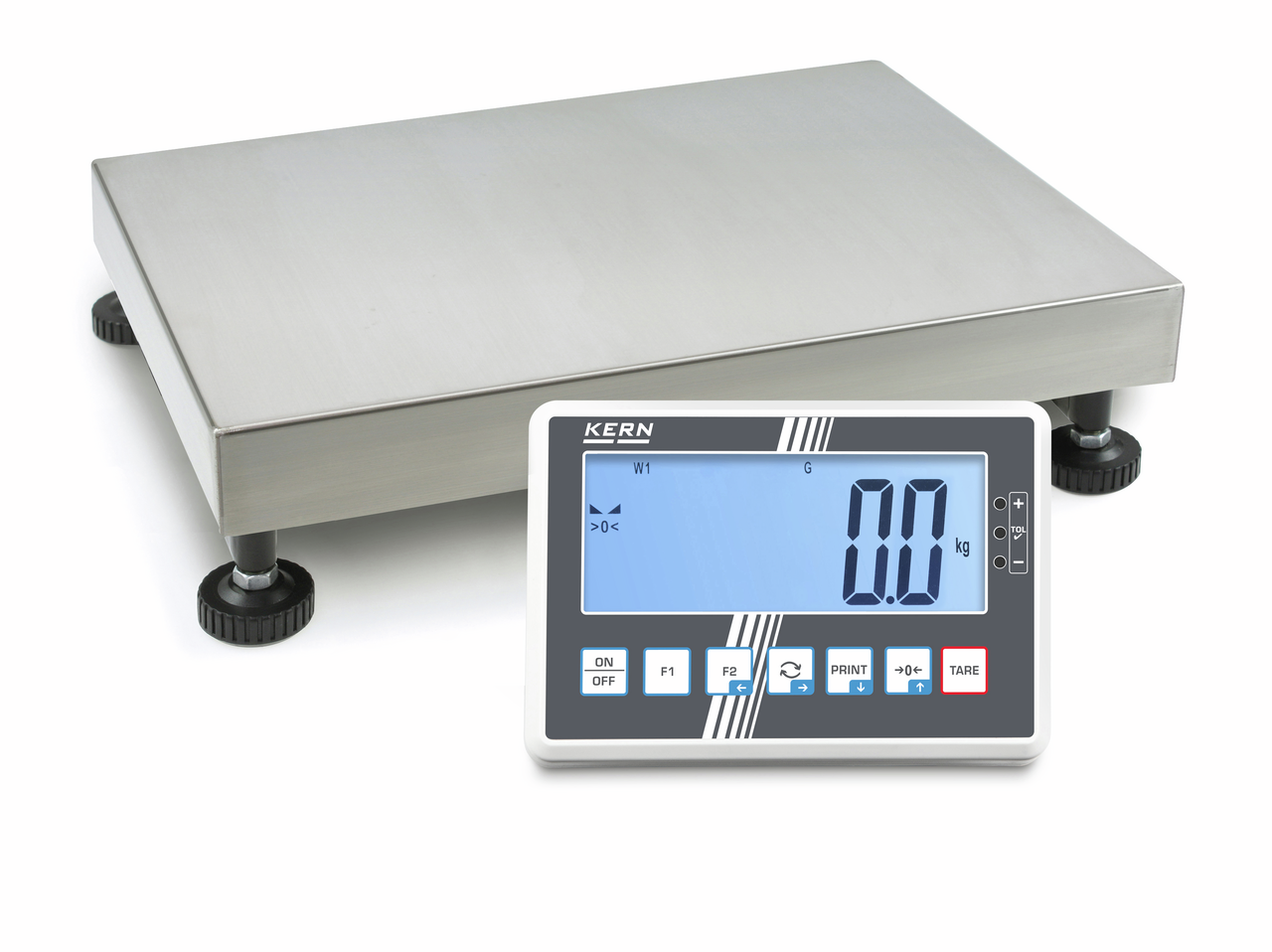

Cantar cu platfoma IoT-Line KERN IFC 300K50DM
Economisesti: 294,03 RON
Capacitate de cantarire [Max]: 300 kg, 150 kg
Greutate minima numarare piese: 100 g
Suprafata de cantarire: 650×500 mm
Greutate minima [Min]: 2 kg, 1 kg
Unitati de masura: kg, ffa, PCS, %, g
Material platan de cantarire: stainless steel
Repetabilitate: 0,1 kg, 0,05 kg
Linearitate: ± 0,05 kg, 0,1 kg
Timp de stabilizare: 3 s
SPECIFICATII TEHNICE:
BROSURA PRODUS:
MANUAL DE OPERARE:
Categorie de produse: Cantare industriale
Clasa de precizie: III
Greutate neta: 18 kg
Posibilitate Verificare Metrologica [M]: Da
Durata de livrare: Consulta pagina informatii livrare!
Standard:
Optionale:
Fabrica:
Descriere
- Tough industry standard suitable for use in harsh industrial applications
- Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
- Industry 4.0: Data and control commands can be exchanged through the KERN Universal Port (KUP) using one interface, which can be connected to the housing, or through three parallel interfaces using the KUP Extension box. The following interfaces are available as an option: RS-232, USB, Ethernet, WiFi, Bluetooth
- Each interface can be set up separately, e.g.:
- Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
- Interface 2 (RS-232): Print stable weight
- Interface 3 (analogue module): Controlling a device when the target weight is reached - With Real Time Clock as standard: Enables you to log the weighing results with accurate time information. Even if the power supply is interrupted, the balance can continue to work with the correct time
- Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
- Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol
- Simplified battery replacement through easily-accessible housing. Particularly advantageous for models with optional verification, as the verification seal remains intact
- Platform: weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell with protection against dust and water splashes IP65
- Benchtop stand incl. wall mount for display device as standard
- Protective working cover included with delivery
Temperatura ambientala (max): 40 °C
Dimensiune platan: 650×500×139 mm
Latime platforma de cantarire: 650 mm
Inaltime platforma de cantarire: 139 mm
Latime suprafata de cantarire: 650 mm
Adancime suprafata de cantarire: 500 mm
Sistem de cantarire: Strain gauge
Timp de incarcare baterie: 8 h
Tip baterie: 3 V CR2032
Tensiune de intrare alimentare: 100 V - 240 V, 50 / 60 Hz
Tip adaptor alimentare: EURO,UK,US,CH
Tip sursa de alimentare: Power adapter
Umiditate ambientala (max): 80 %
Greutate bruta: 22 kg
Dimensiuni ambalaj: 1050×670×250 mm
