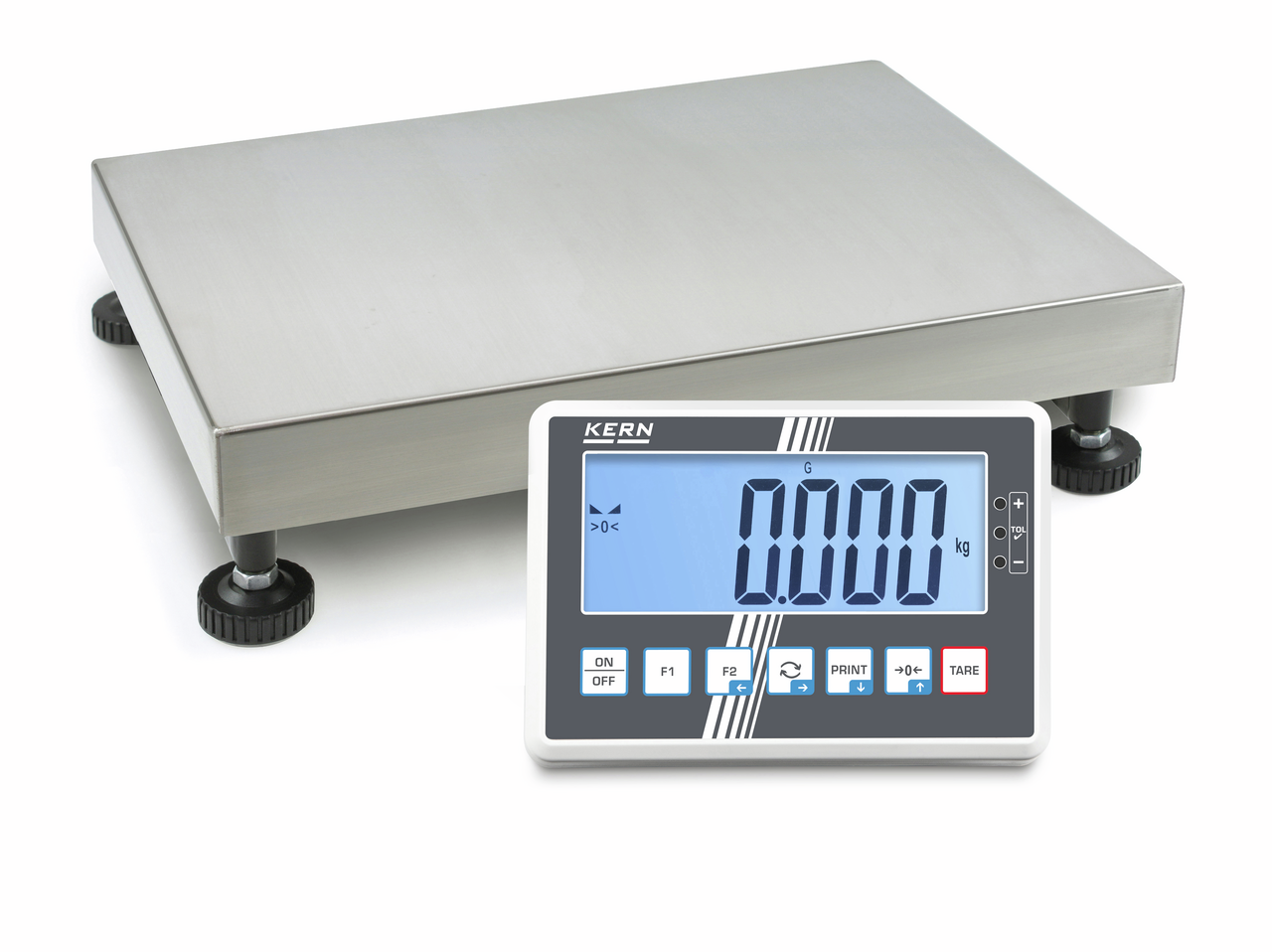

Cantar cu platfoma IoT-Line KERN IFC 150K-3L

Name: Cantar cu platfoma IoT-Line KERN IFC 150K-3L
SKU: IFC 150K-3L
Price: 5319.88 RON
Availability: InStock

~~5.599,87 RON~~ 5.319,88 RON
Economisesti: 279,99 RON

The new IFC: Robust industrial scales with up to three interfaces

Capacitate de cantarire [Max]: 150 kg

Precizie [d]: 0,005 kg

Suprafata de cantarire: 650×500 mm

Greutate minima numarare piese: 50 g

Unitati de masura: kg, lb, ffa, PCS, %, g

Material platan de cantarire: stainless steel

Repetabilitate: 0,005 kg

Linearitate: ± 0,02 kg

Timp de stabilizare: 3 s

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

Categorie de produse: Cantare industriale

Greutate neta: 18 kg

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Cod Produs: IFC 150K-3L Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~5.599,87 RON~~ 5.319,88 RON * *plus costuri de livrare, TVA inclus

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Compara

Standard:

Weighing with tolerance range, visual, acoustic

Load Cell: Display device: IP65 dust and spray protection

Optionale:

Descriere

Tough industry standard suitable for use in harsh industrial applications
Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
Industry 4.0: Data and control commands can be exchanged through the KERN Universal Port (KUP) using one interface, which can be connected to the housing, or through three parallel interfaces using the KUP Extension box. The following interfaces are available as an option: RS-232, USB, Ethernet, WiFi, Bluetooth
Each interface can be set up separately, e.g.:
- Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
- Interface 2 (RS-232): Print stable weight
- Interface 3 (analogue module): Controlling a device when the target weight is reached
With Real Time Clock as standard: Enables you to log the weighing results with accurate time information. Even if the power supply is interrupted, the balance can continue to work with the correct time
Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol
Simplified battery replacement through easily-accessible housing. Particularly advantageous for models with optional verification, as the verification seal remains intact
Platform: weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell with protection against dust and water splashes IP65
Benchtop stand incl. wall mount for display device as standard
Protective working cover included with delivery

Temperatura ambientala (max): 40 °C

Dimensiune platan: 650×500×139 mm

Latime platforma de cantarire: 650 mm

Inaltime platforma de cantarire: 139 mm

Latime suprafata de cantarire: 650 mm

Adancime suprafata de cantarire: 500 mm

Sistem de cantarire: Strain gauge

Timp de incarcare baterie: 8 h

Tip baterie: 3 V CR2032

Tensiune de intrare alimentare: 100 V - 240 V, 50 / 60 Hz

Tip adaptor alimentare: EURO,UK,US,CH

Tip sursa de alimentare: Power adapter

Umiditate ambientala (max): 80 %

Greutate bruta: 24 kg

Dimensiuni ambalaj: 1050×670×250 mm

INFORMATII IMPORTANTE:

Conectarea simultana a pana la trei interfete optionale este posibila doar cu Extension Box KUP-A13. Fara Extension Box KUP-A13, poate fi utilizata doar o interfata optionala la un moment dat.
