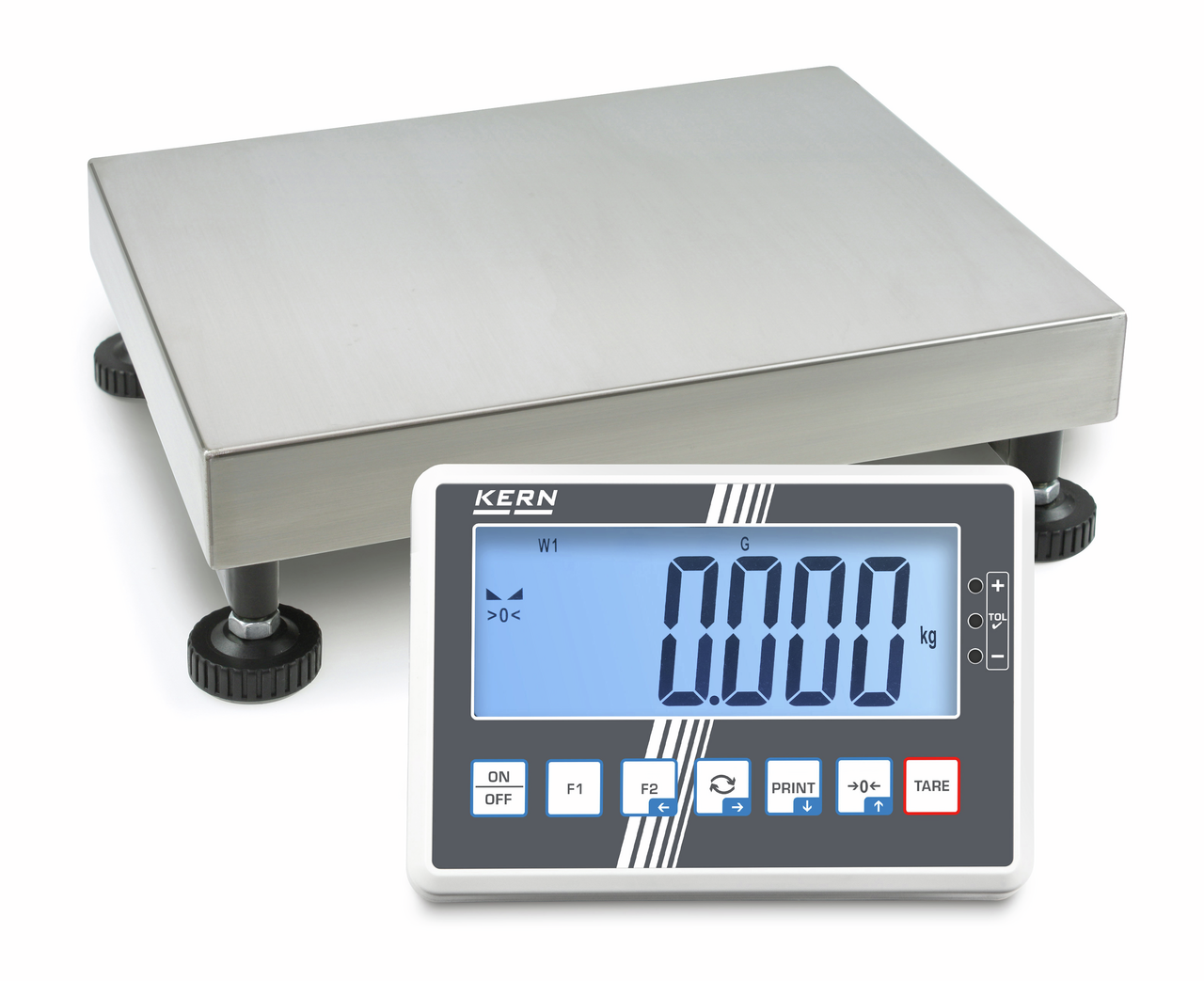

Cantar cu platfoma IoT-Line KERN IFC 15K2DLM

Name: Cantar cu platfoma IoT-Line KERN IFC 15K2DLM
SKU: IFC 15K2DLM
Price: 3287.56 RON
Availability: InStock

~~3.460,59 RON~~ 3.287,56 RON
Economisesti: 173,03 RON

The new IFC: Robust industrial scales with up to three interfaces, with optional verification

Capacitate de cantarire [Max]: 15 kg, 6 kg

Precizie [d]: 0,005 kg 0,002 kg

Suprafata de cantarire: 400×300 mm

Greutate minima numarare piese: 5 g

Greutate minima [Min]: 0,1 kg, 0,04 kg

Unitati de masura: kg, ffa, PCS, %, g

Material platan de cantarire: stainless steel

Repetabilitate: 0,002 kg, 0,005 kg

Linearitate: ± 0,002 kg, 0,005 kg

Timp de stabilizare: 3 s

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

Categorie de produse: Cantare industriale

Clasa de precizie: III

Greutate neta: 7 kg

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Cod Produs: IFC 15K2DLM Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~3.460,59 RON~~ 3.287,56 RON * *plus costuri de livrare, TVA inclus

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Compara

Standard:

Weighing with tolerance range, visual, acoustic

Load Cell: Display device: IP65 dust and spray protection

Optionale:

Fabrica:

Descriere

Tough industry standard suitable for use in harsh industrial applications
Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
Industry 4.0: Data and control commands can be exchanged through the KERN Universal Port (KUP) using one interface, which can be connected to the housing, or through three parallel interfaces using the KUP Extension box. The following interfaces are available as an option: RS-232, USB, Ethernet, WiFi, Bluetooth
Each interface can be set up separately, e.g.:
- Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
- Interface 2 (RS-232): Print stable weight
- Interface 3 (analogue module): Controlling a device when the target weight is reached
With Real Time Clock as standard: Enables you to log the weighing results with accurate time information. Even if the power supply is interrupted, the balance can continue to work with the correct time
Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
Data query and remote control of the balance using a computer or CRM/ERP systems using the KERN Communication Protocol
Simplified battery replacement through easily-accessible housing. Particularly advantageous for models with optional verification, as the verification seal remains intact
Platform: weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell with protection against dust and water splashes IP65
Benchtop stand incl. wall mount for display device as standard
Protective working cover included with delivery

Temperatura ambientala (max): 40 °C

Dimensiune platan: 400×300×117 mm

Latime platforma de cantarire: 400 mm

Inaltime platforma de cantarire: 117 mm

Latime suprafata de cantarire: 400 mm

Adancime suprafata de cantarire: 300 mm

Sistem de cantarire: Strain gauge

Timp de incarcare baterie: 8 h

Tip baterie: 3 V CR2032

Tensiune de intrare alimentare: 100 V - 240 V, 50 / 60 Hz

Tip adaptor alimentare: EURO,UK,US,CH

Tip sursa de alimentare: Power adapter

Umiditate ambientala (max): 80 %

Greutate bruta: 9 kg

Dimensiuni ambalaj: 820×470×235 mm

INFORMATII IMPORTANTE:

Pentru dispozitivele care necesita verificare (Verificarea / Evaluarea conformitatii in conformitate cu NAWI (2014/31/EU)), va rugam sa adaugati acest serviciu la plasarea comenzii, deoarece aceasta verificare nu poate fi efectuata dupa livrare. Va rugam sa furnizati adresa completa a locului de utilizare.
Conectarea simultana a pana la trei interfete optionale este posibila doar cu Extension Box KUP-A13. Fara KUP-A13, poate fi utilizata doar o interfata optionala la un moment dat.
