Cantar drive-through IoT-Line KERN NFC 600K-1M

Name: Cantar drive-through IoT-Line KERN NFC 600K-1M
SKU: NFC 600K-1M
Price: 11476.59 RON
Availability: PreOrder

~~12.080,62 RON~~ 11.476,59 RON
Economisesti: 604,03 RON

Networkable drive-through scale (IP67), verification optional

Capacitate de cantarire [Max]: 600 kg

Precizie [d]: 0,2 kg

Suprafata de cantarire: 1000×1000 mm

Greutate minima numarare piese: 2 kg

Greutate minima [Min]: 4 kg

Unitati de masura: kg, ffa, PCS, %, g

Material platan de cantarire: steel, powder-coated

Repetabilitate: 0,2 kg

Linearitate: ± 0,4 kg

Timp de stabilizare: 3 s

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

Categorie de produse: Cantare industriale

Clasa de precizie: III

Greutate neta: 130 kg

Precomanda

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Precomanda

Cod Produs: NFC 600K-1M Ai nevoie de ajutor? 0799938183 / 0729668980

Adauga la Favorite

~~12.080,62 RON~~ 11.476,59 RON * *plus costuri de livrare, TVA inclus

Precomanda

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Precomanda

Compara

Standard:

Platform: IP67 dust and spray protection

Data interface KERN Universal Port (KUP)

Interface command set KERN Communication Protocol (KCP)

Measuring with tolerance range (checkweighing function)

Load Cell: Protection against dust and water splashes IP67

Platform: Protection against dust and water splashes IP67

Load Cell: Display device: IP67 dust and spray protection

Optionale:

Fabrica:

Descriere

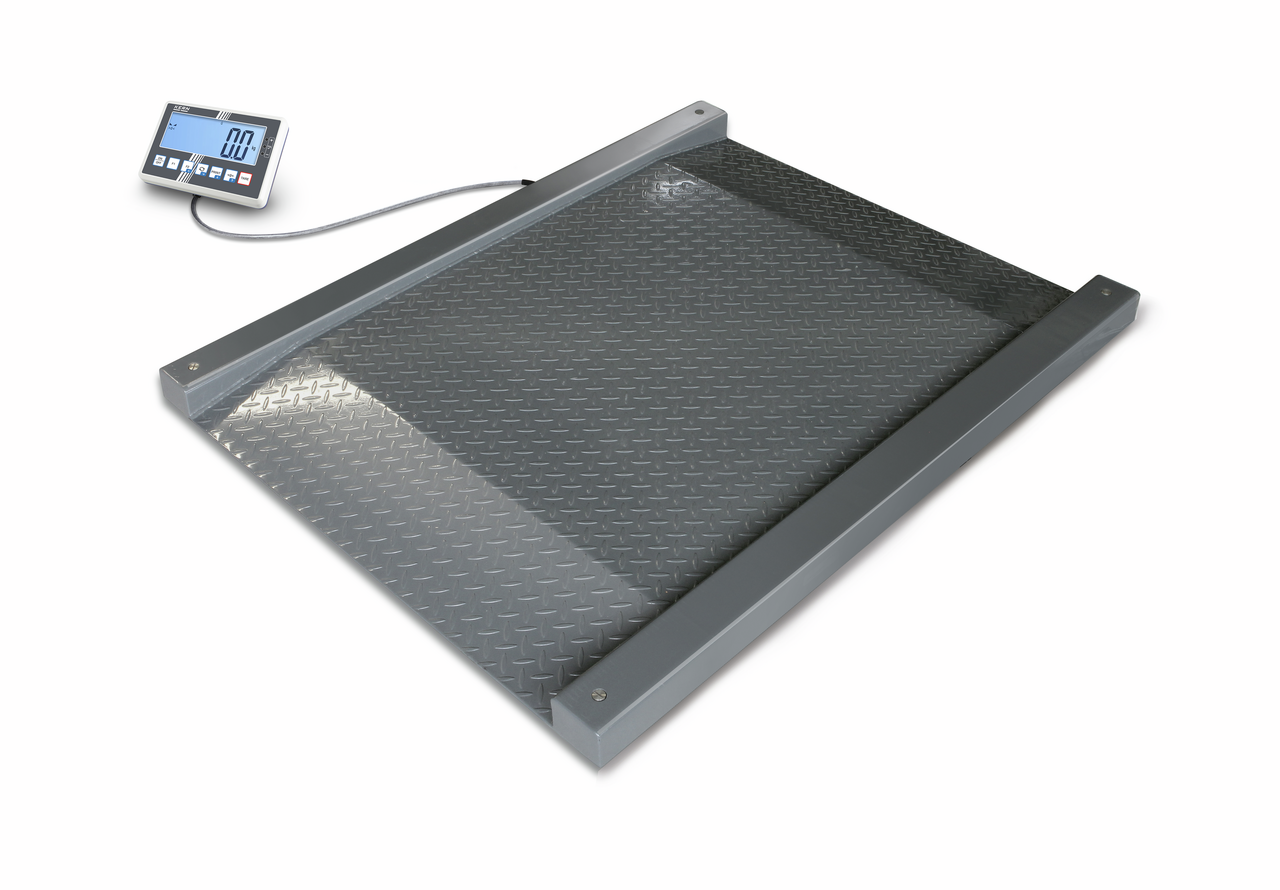

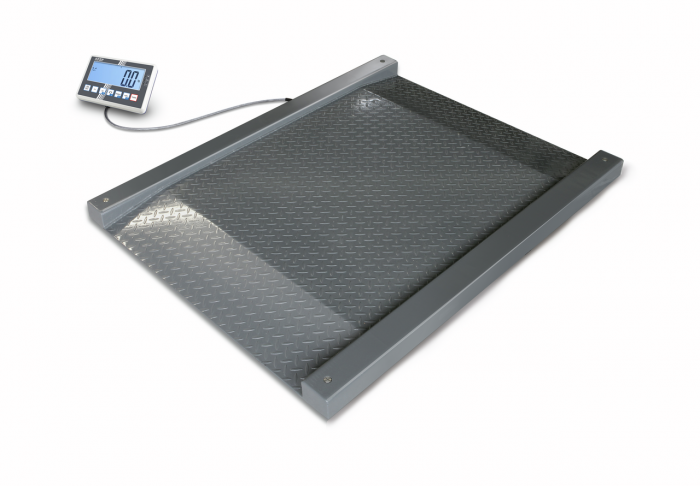

Drive-through scale for rapid weighing of e.g. wire cage trolleys, shelf trolleys, transpallets, mobile containers, containers refuse etc.
Weighing bridge: out of anti-slip corrugated steel, 4 silicone-coated steel load cells, IP67 dust and spray protection
Display device: for details see KERN KERN KFC-TM
IoT line: networkable balances with user-friendly concept of operation
Industry 4.0: Data and control commands can be exchanged through the KERN Universal Port (KUP) using one interface, which can be connected to the housing, or through three parallel interfaces using the KUP Extension box, for details see KERN KFC-TM
With Real Time Clock as standard: Enables you to log the weighing results with accurate time information. Even if the power supply is interrupted, the balance can continue to work with the correct time
Protective working cover included with delivery

Temperatura ambientala (max): 40 °C

Dimensiune platan: 1600×1220×95 mm

Latime platforma de cantarire: 1600 mm

Inaltime platforma de cantarire: 95 mm

Latime suprafata de cantarire: 1000 mm

Adancime suprafata de cantarire: 1000 mm

Sistem de cantarire: Strain gauge

Timp de incarcare baterie: 8 h

Tip baterie: no battery

Tensiune de intrare alimentare: 100 V - 240 V, 50 / 60 Hz

Tip adaptor alimentare: EURO,UK,US,CH

Tip sursa de alimentare: Power adapter

Umiditate ambientala (max): 80 %

Greutate bruta: 195 kg

Dimensiuni ambalaj: 1666×1320×380 mm

INFORMATII IMPORTANTE:

Pentru dispozitivele care necesita verificare (Verificarea / Evaluarea conformitatii in conformitate cu NAWI (2014/31/EU)), va rugam sa adaugati acest serviciu la plasarea comenzii, deoarece aceasta verificare nu poate fi efectuata dupa livrare. Va rugam sa furnizati adresa completa a locului de utilizare.
Pentru cantarele verificate, podul de cantarire trebuie sa fie fixat la podea. Optional, cu o rampa de acces, un set de talpi sau un cadru pentru incastrare in pardoseala.
