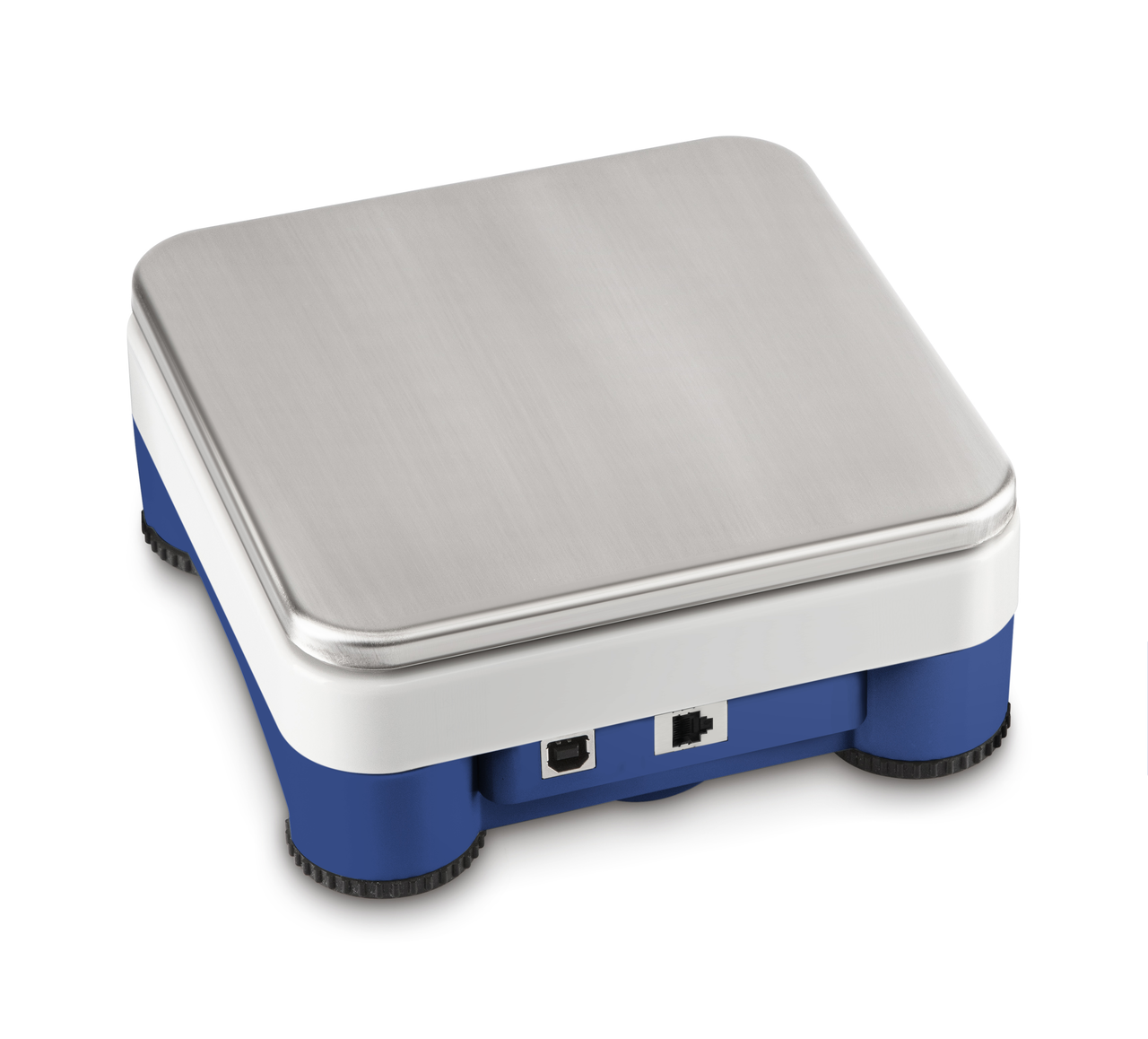

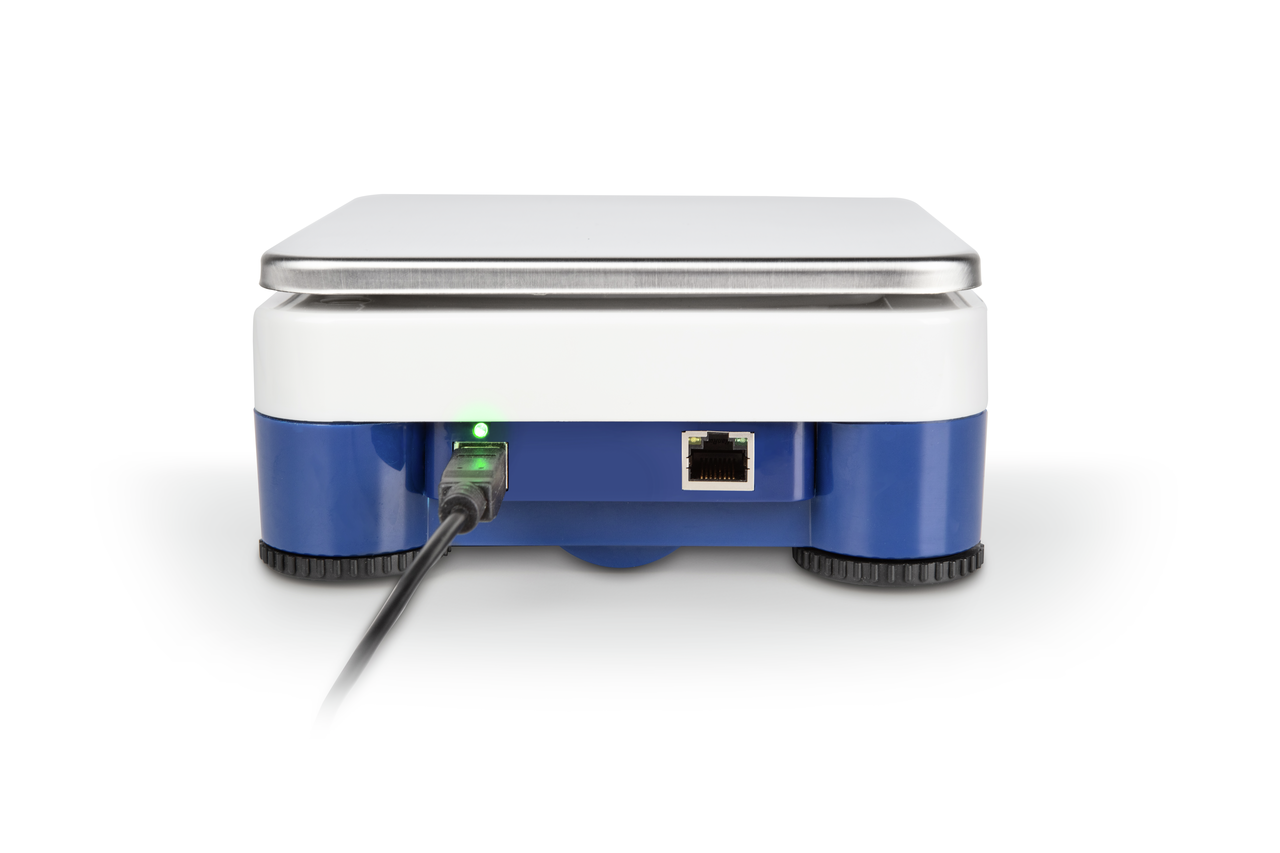

Platforma Digitala KERN KDP 10K-4

~~2.894,32 RON~~ 2.749,60 RON
Economisesti: 144,72 RON

Searching and remote control of the balance
PRE-TARE function
Freely programmable weighing unit
Software BalanceConnection

Capacitate de cantarire [Max]: 10 kg

Precizie [d]: 0,1 g

Suprafata de cantarire: 160×160 mm

Material platan de cantarire: stainless steel

Repetabilitate: 100 mg

Linearitate: ± 300 mg

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

Categorie de produse: Aplicatii

Dimensiuni carcasa (fara piese detasabile): 165×166×75 mm

Greutate neta: 1,4 kg

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Cod Produs: KDP 10K-4 Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~2.894,32 RON~~ 2.749,60 RON * *plus costuri de livrare, TVA inclus

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Compara

Optionale:

Descriere

Industry 4.0 process chains: these weighing platforms can be easily integrated into your process chain. All recorded values can be easily transferred and processed further in your system as digital data and data that has already been compared using the many interfaces available. This saves cost, time and resources and ensures even more effective working
Connecting the balance with a tablet or PC offers the advantage of being able to use the apps and programs which are on that device. These apps and programs are usually already tailored to your needs, are easy and convenient to use and can often be expanded as needed. This offers you the maximum level of flexibility when displaying, processing and saving the recorded weighing data
Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol.
PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m², or similar
included with the delivery: Software BalanceConnection for adjusting and managing the KERN KDP, for large-format display of the values collected on the PC as well as transfer of this data to other Apps and programs

Temperatura ambientala (max): 35 °C

Dimensiune platan: 165×165×73 mm

Latimea carcasei: 165 mm

Adancimea carcasei: 166 mm

Inaltimea carcasei: 75 mm

Latime platforma de cantarire: 165 mm

Inaltime platforma de cantarire: 165 mm

Latime suprafata de cantarire: 160 mm

Adancime suprafata de cantarire: 160 mm

Sistem de cantarire: Strain gauge

Tip sursa de alimentare: USB including power supply

Umiditate ambientala (max): 80 %

Greutate bruta: 2,2 kg

Dimensiuni ambalaj: 250×355×160 mm

Servicii

Certificat de calibrare DAkkS - KERN 963-128

963-128

780,21 RON *

Accesorii

Interfata date KERN YMI-A01

YMI-A01

597,74 RON *

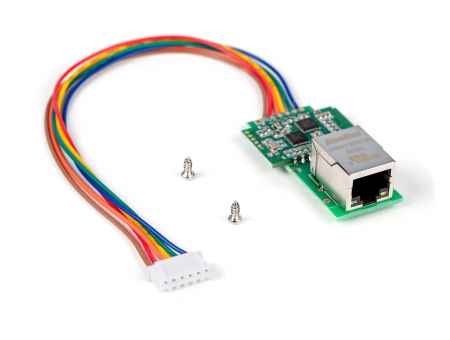

Interfata modul KDP-A02

KDP-A02

692,12 RON *

Modul analog KDP-A03

KDP-A03

339,77 RON *

Greutate KERN 326-14

326-14

3.347,34 RON *
