Platforma industriala cu transmitator digital pentru cantarireKERN KGP 100K-3L

Name: Platforma industriala cu transmitator digital pentru cantarireKERN KGP 100K-3L
SKU: KGP 100K-3L
Price: 4901.46 RON
Availability: InStock

~~5.159,43 RON~~ 4.901,46 RON
Economisesti: 257,97 RON

Robust industrial platform scale with digital weighing transmitter, ideal for varied range of applications for Industry 4.0

Capacitate de cantarire [Max]: 150 kg

Precizie [d]: 5 g

Suprafata de cantarire: 650×500 mm

Greutate minima numarare piese: 50 g

Material platan de cantarire: stainless steel

Repetabilitate: 0,005 kg

Linearitate: ± 0,02 kg

Timp de stabilizare: 2 s

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

Categorie de produse: Componente pentru masurare

Material Carcasa: plastic

Greutate neta: 22 kg

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Cod Produs: KGP 100K-3L Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~5.159,43 RON~~ 4.901,46 RON * *plus costuri de livrare, TVA inclus

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Compara

Standard:

Optionale:

Fabrica:

Descriere

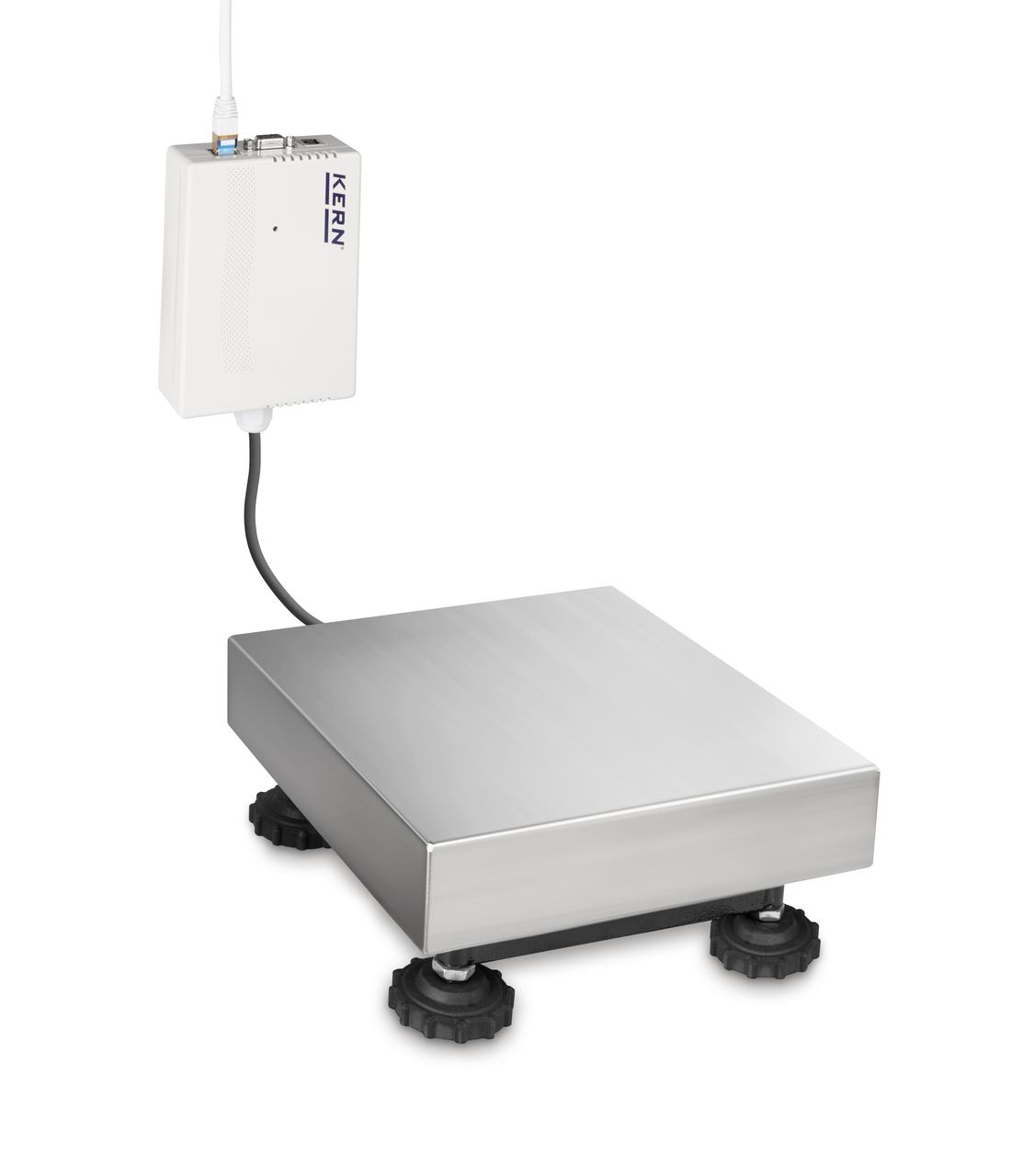

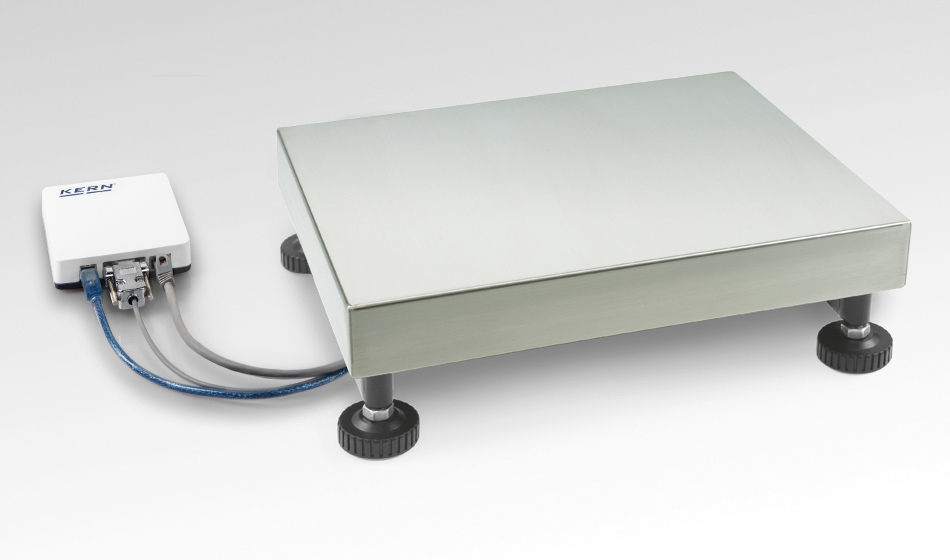

With this combination of platform (KERN KFP V20 IP65) and digital weighing transmitter (KERN YKV-01) your weighing processes are ready for the requirements of Industry 4.0. Simply install the platform, connect the digital weighing transmitter to the network and start weighing
For rapid transfer of weighing data to connected networks, computers, etc.
USB and RS-232 data interface standard, Power supply via USB interface
Transfer formats are freely configurable
Digital weighing transmitter with standard Ethernet data interface on request
Functions: Weighing, taring
Internal resolution 16 million divisions
Measuring frequency 10 Hz
Easy configuration using the software supplied

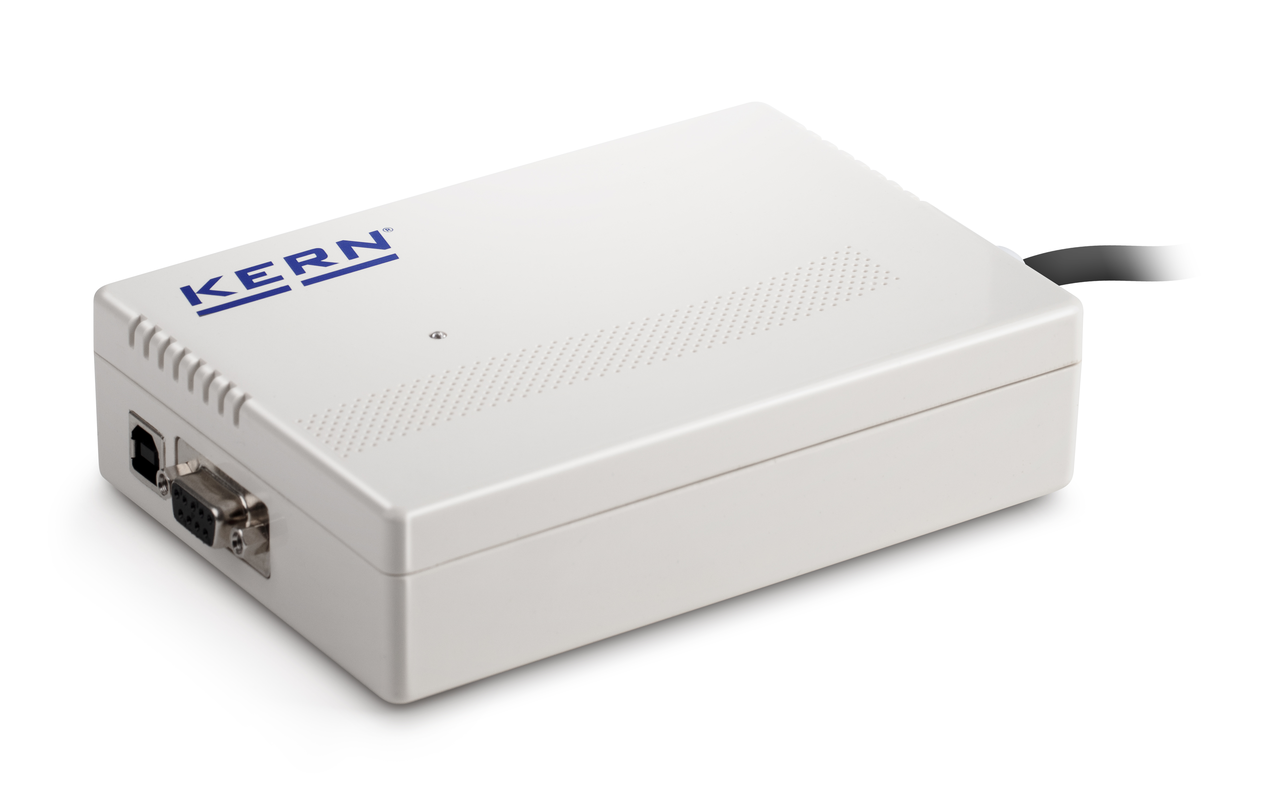

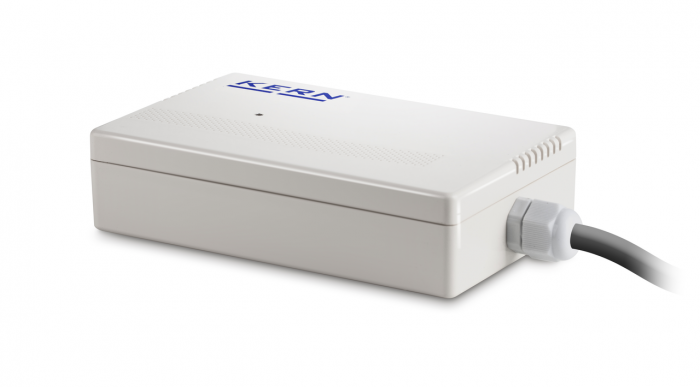

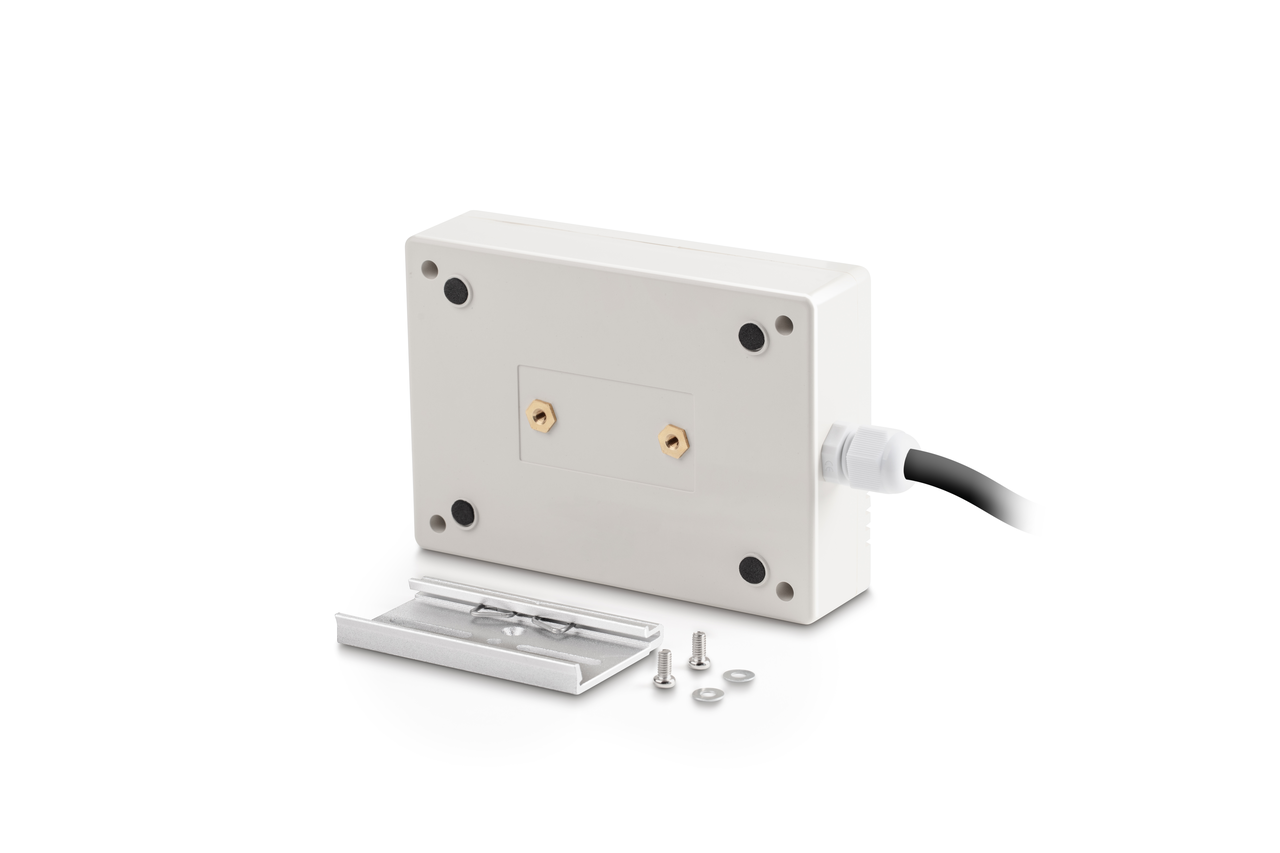

KERN YKV-01: Robust plastic die-cast housing
KERN YKV-01: Suitable for wall mounting and DIN track mount (optional)
included with the delivery:

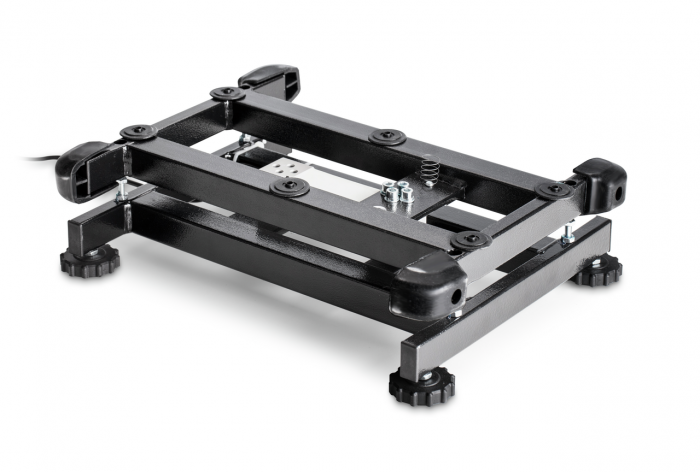

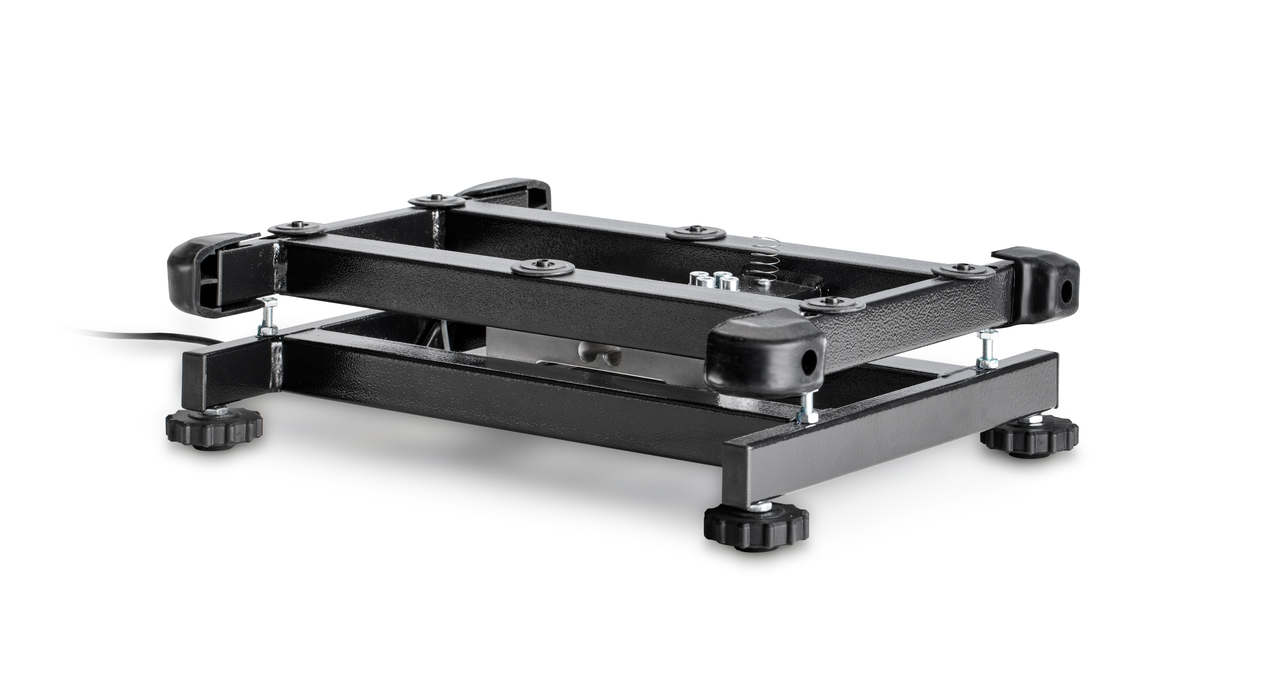

- Industrial platform KERN KFP
- Digital weighing transmitter KERN YKV-01

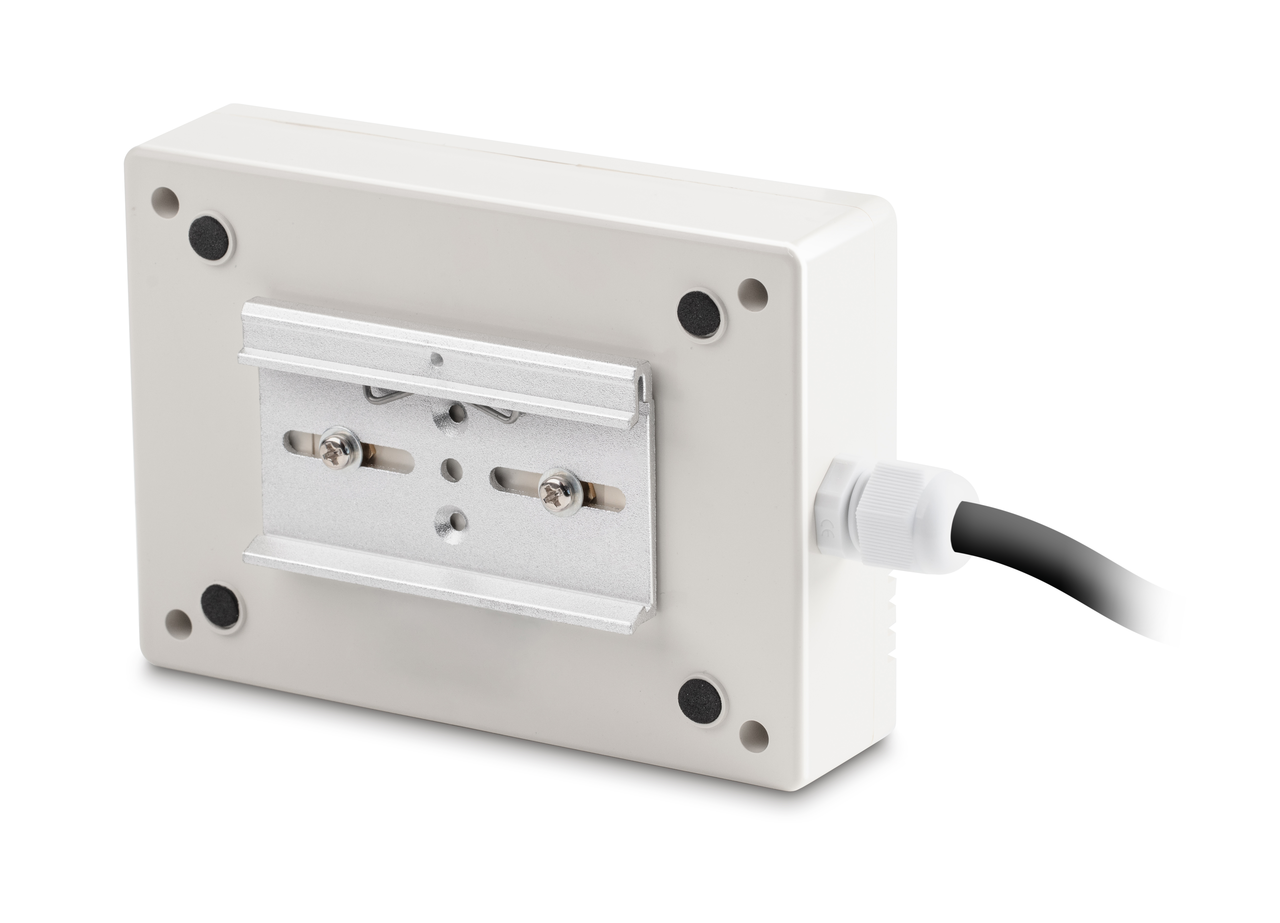

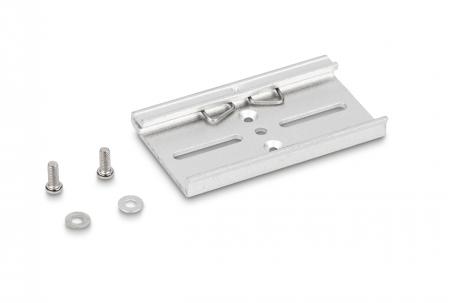

- DIN rail mounting bracket for KERN YKV
- Configuration software for adjusting and managing the KERN KDP, for large-format display of the values collected on the PC as well as transfer of this data to other Apps and programs. The displayed result can therefore be converted to any format for communication with the different user programs, such as, for example, e.g. SAP, Oracle etc.
