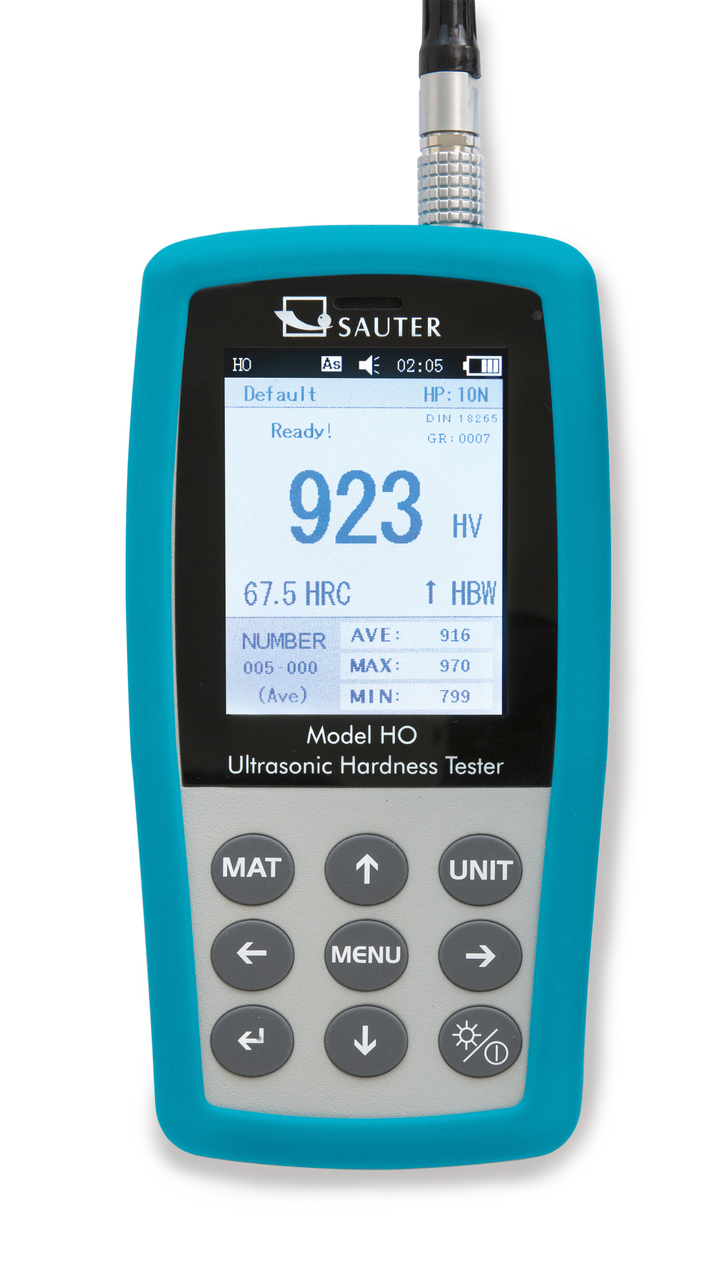

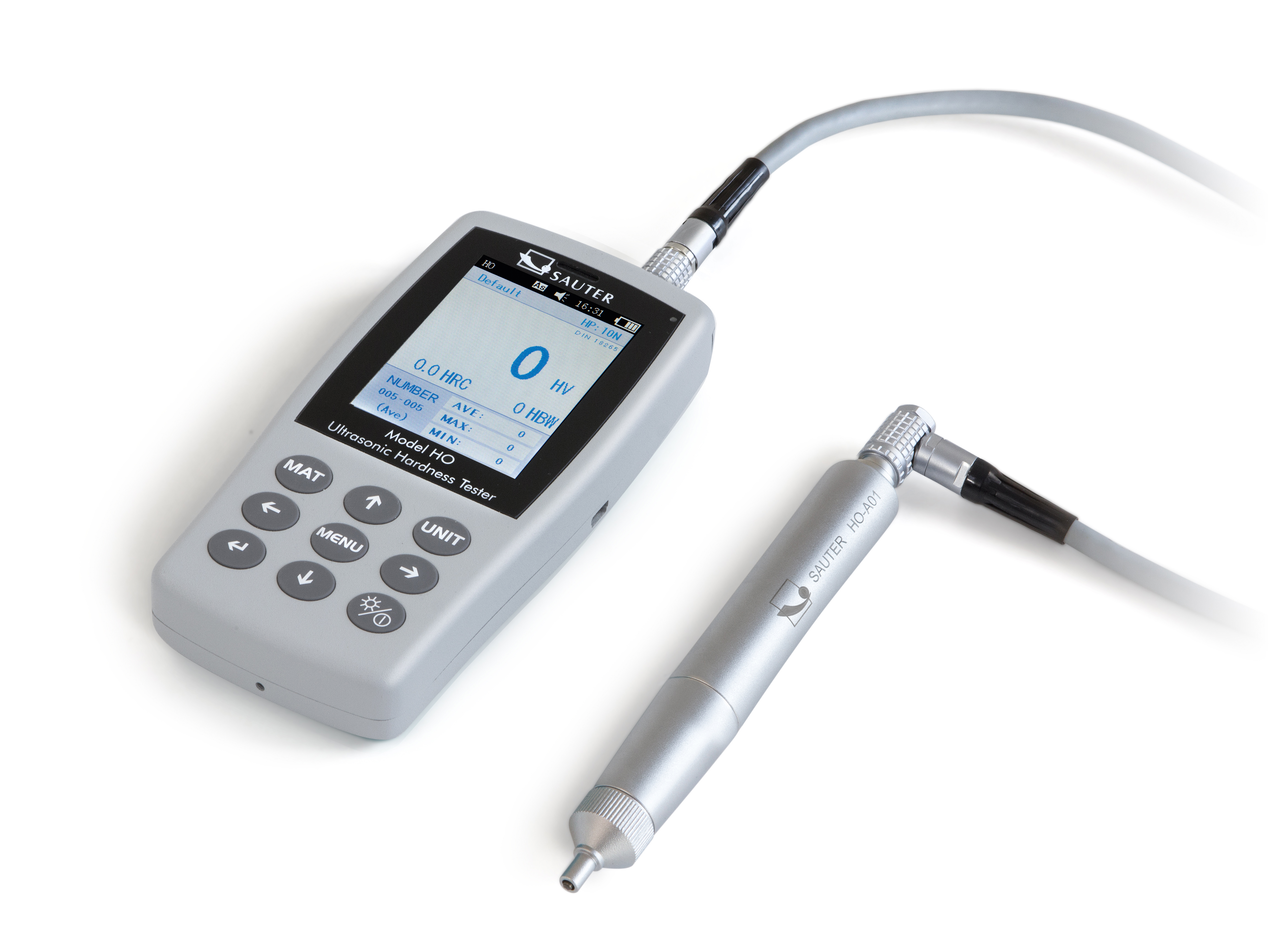

Durometru portabil cu ultrasunete SAUTER HO 5K

Name: Durometru portabil cu ultrasunete SAUTER HO 5K
SKU: HO 5K
Price: 32300.56 RON
Availability: InStock

~~34.731,78 RON~~ 32.300,56 RON
Economisesti: 2.431,22 RON

Premium UCI hardness testing device for Rockwell, Brinell and Vickers

Unitati de masura: HL, HV, HB, HRB, HRC, MPa, HRA

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

FISA DE SECURITATE:

Categorie de produse: Durometre

Material Carcasa: metal, lacquered

Dimensiuni carcasa (fara piese detasabile): 28×83×160 mm

Greutate neta: 0,95 kg

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Cod Produs: HO 5K Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~34.731,78 RON~~ 32.300,56 RON * *plus costuri de livrare, TVA inclus

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Compara

Standard:

Measuring with tolerance range (function to set limits)

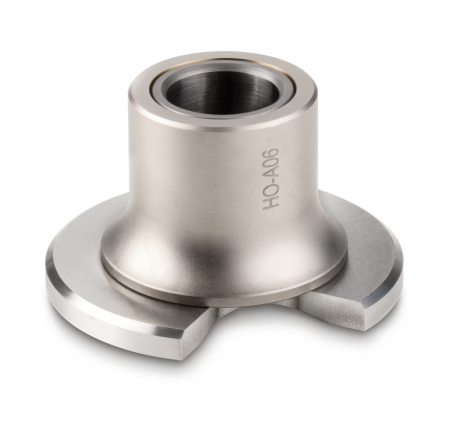

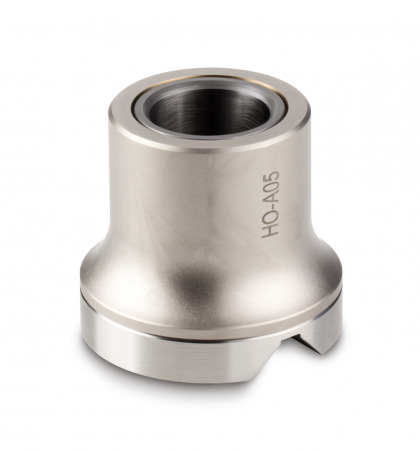

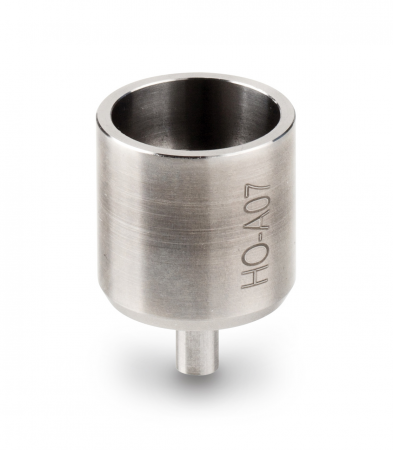

Optionale:

Descriere

Application: This ultrasound hardness testing device is ideally suited for mobile hardness testing, where the main emphasis is on obtaining rapid and precise results

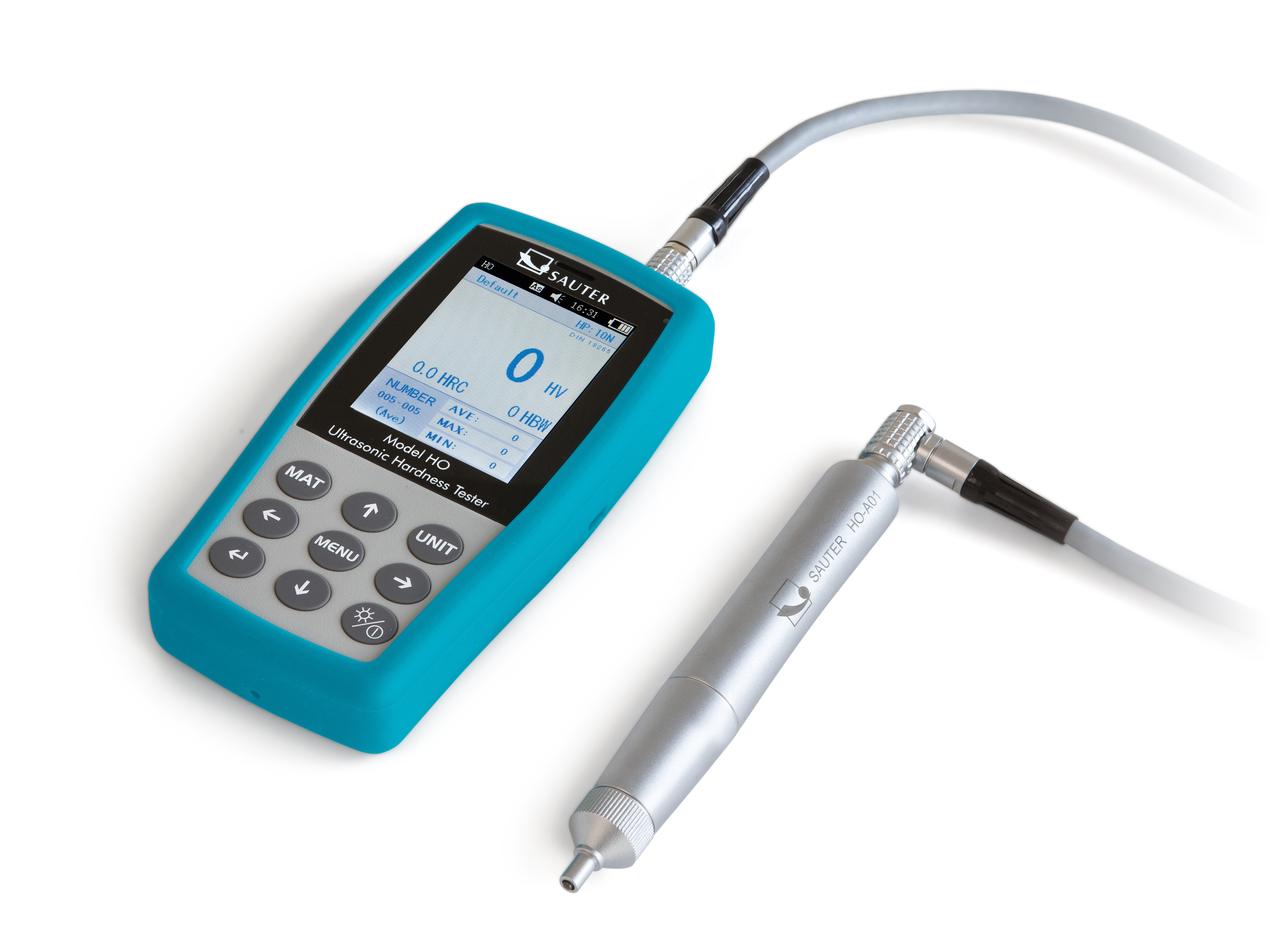

Principle: The SAUTER HO measures by using a vibrating rod which vibrates at ultrasonic frequency and is pressed onto the sample at a defined test force. At the lower end there is a Vickers indenter. Its resonant frequency increases, as soon as an indentation is created when it comes into contact with the sample. Through appropriate adjustment of the device, the resulting change in resonant frequency is matched with the corresponding Vickers hardness
Examples: The SAUTER HO ultrasound hardness testing system is primarily used for measuring small forgings, castings, welding points, punched parts, casting tools, ball bearings and the flanks of gear wheels as well as for measuring the influence of warmth or heat
Advantages compared with Rockwell and Brinell: Almost non-destructive testing by smaller test force and thus only microscopic indentation craters
Advantages compared with Vickers: Demanding optical measuring is not required. You can therefore carry out measurements directly on-site, for example, on a permanently installed workpiece
Advantages compared with Leeb: The high requirements concerning the proper weight of the test object can be widely omitted
Standards: The device meets following technical standards: DIN 50159-1; ASTM-A1038-2005; JB/T9377-2013
Measurement data memory saves up to 1000 measurement groups each with 20 individual values

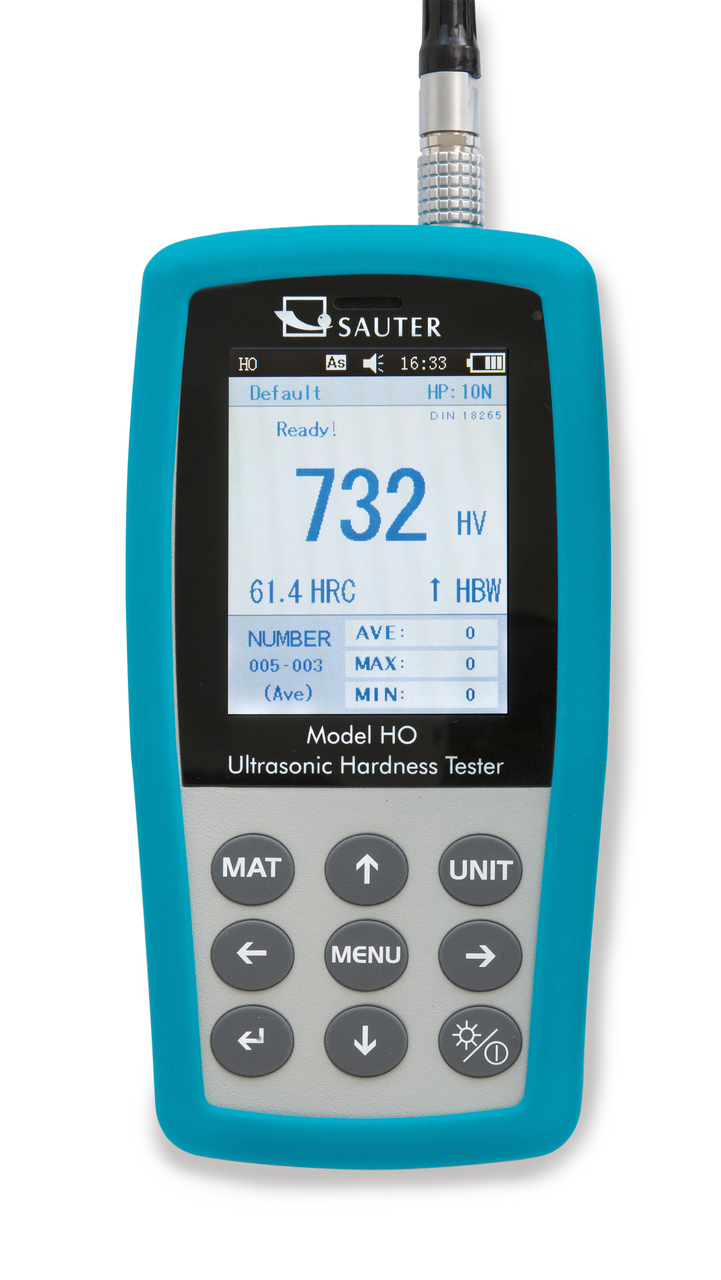

Mini statistics function: Display of the measuring result, the number of measurements, the maximum and minimum value as well as the average value and the standard deviation
Calibration: The device can be set to both standard hardness test blocks as well as to up to 20 reference calibration values. When doing this it is possible to measure different materials quickly, without having to re-adjust the device to the individual materials

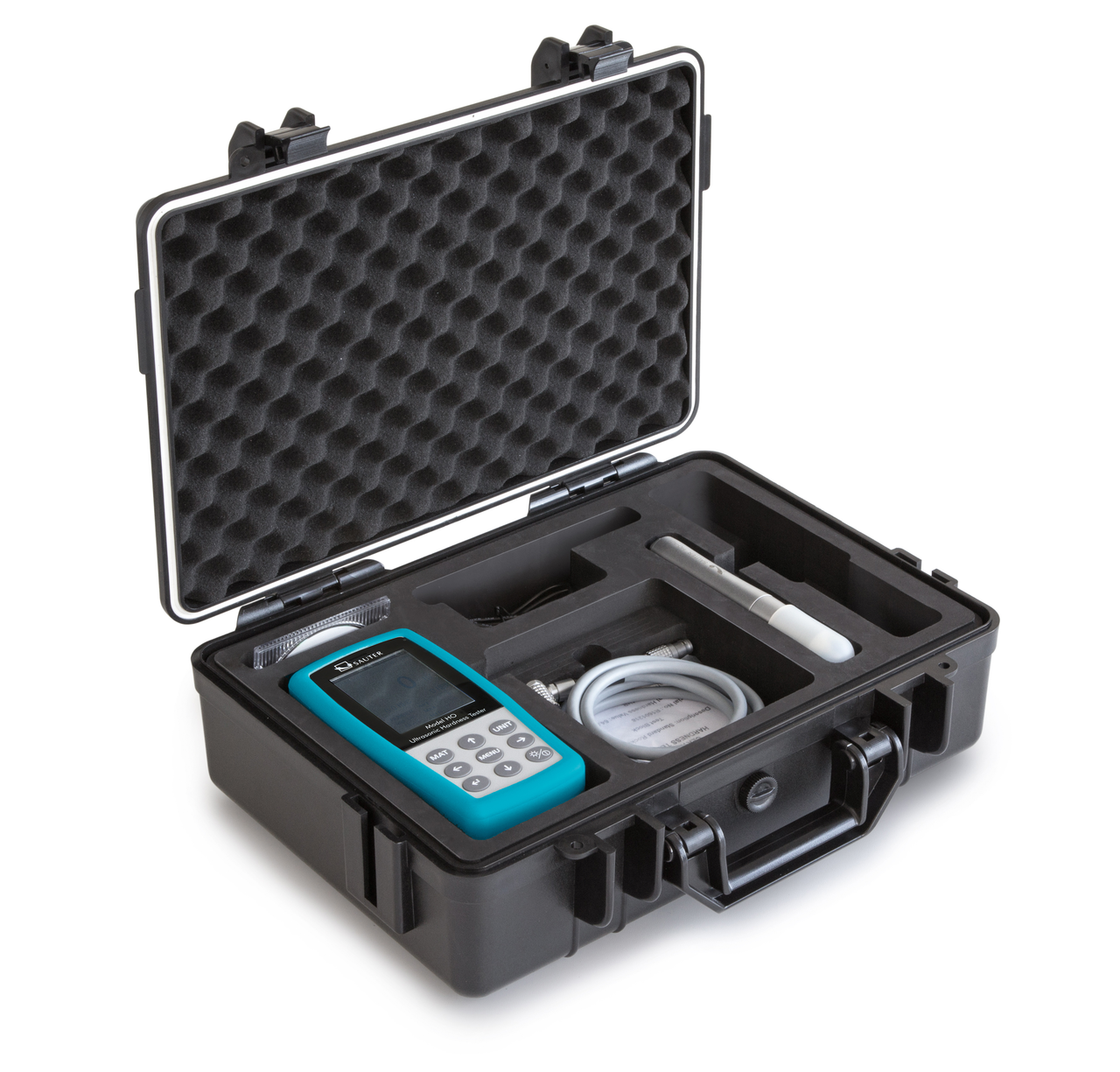

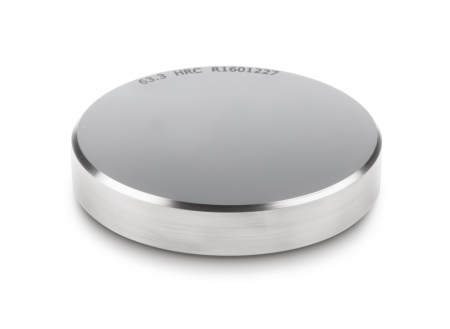

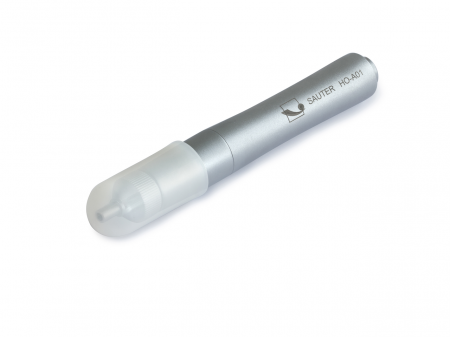

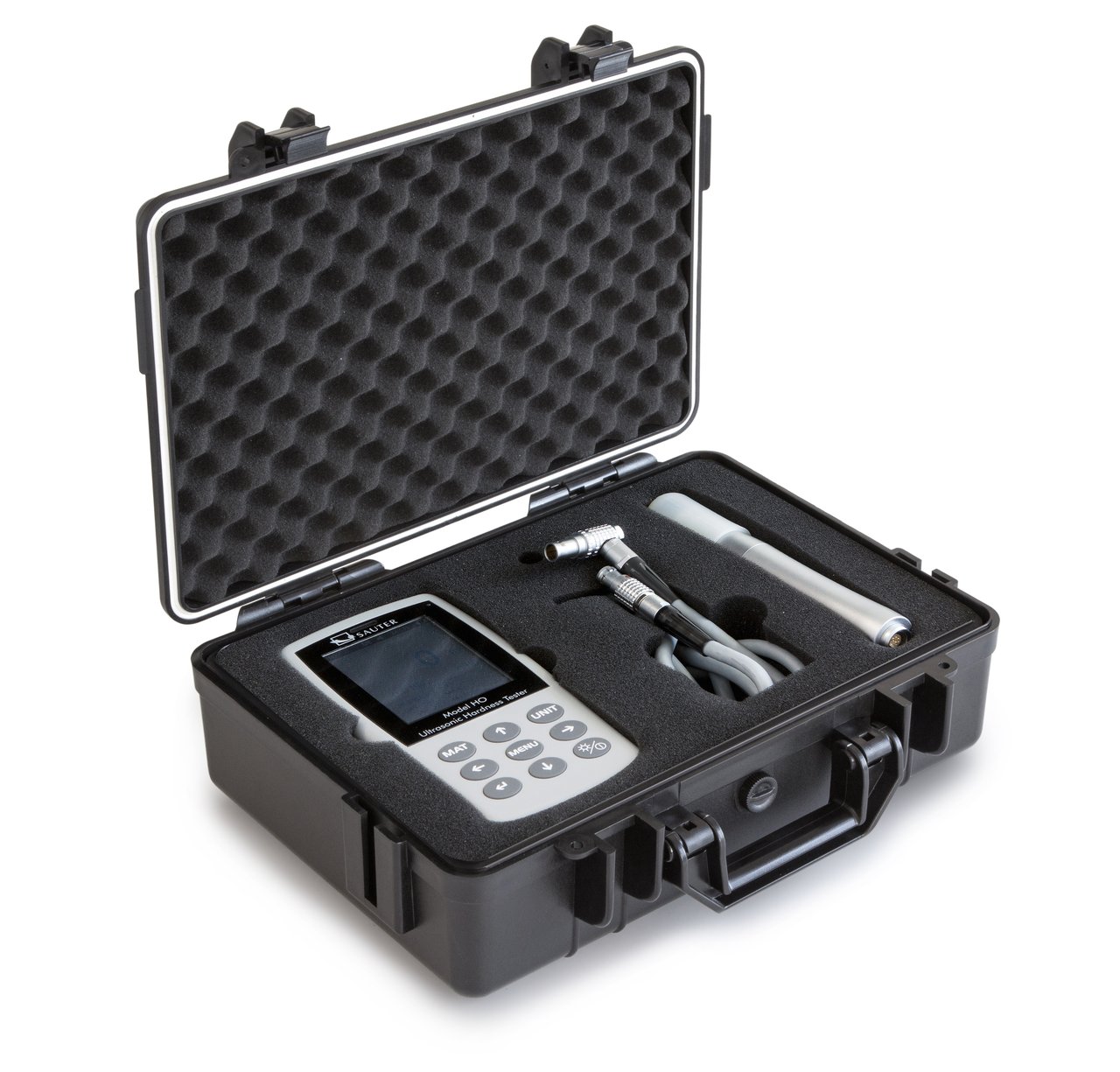

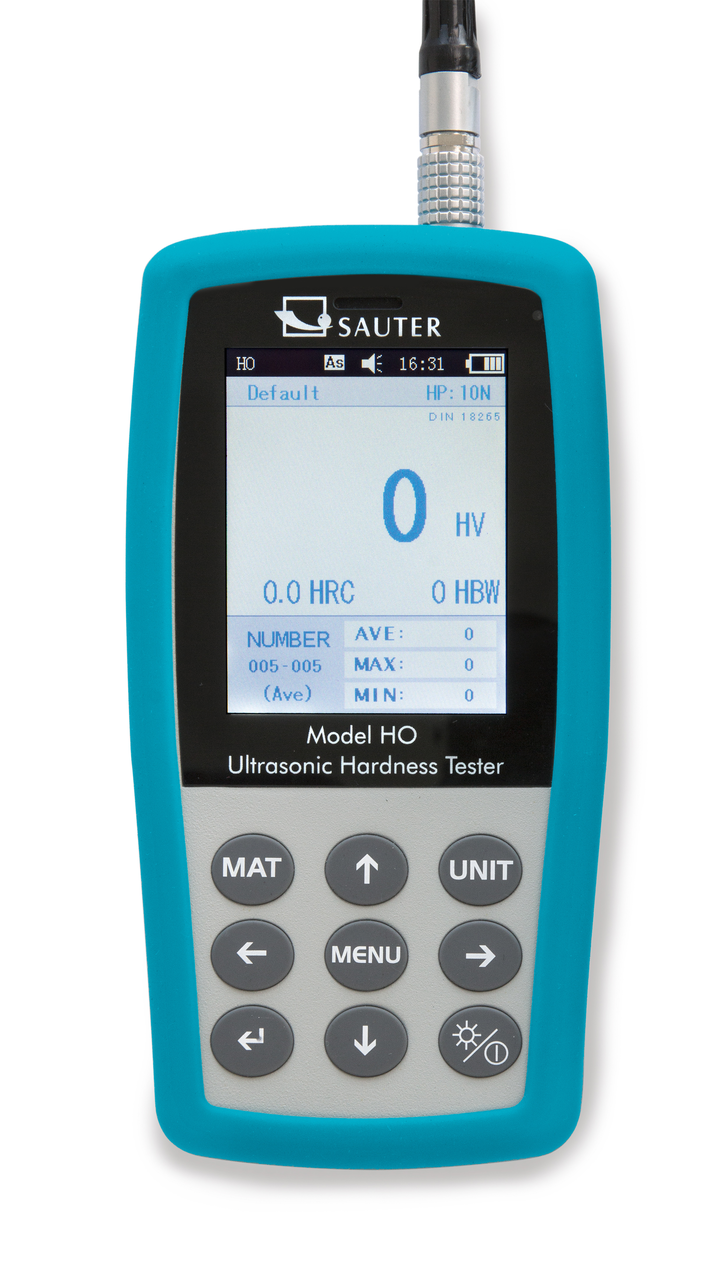

Scope of delivery: Standard block for calibration (approx. 61 HRC), USB cable, Display unit, UCI sensor unit, transport case, software to transfer the saved data to the PC, protective case (turquoise), further accessories

Latimea carcasei: 28 mm

Adancimea carcasei: 83 mm

Inaltimea carcasei: 160 mm

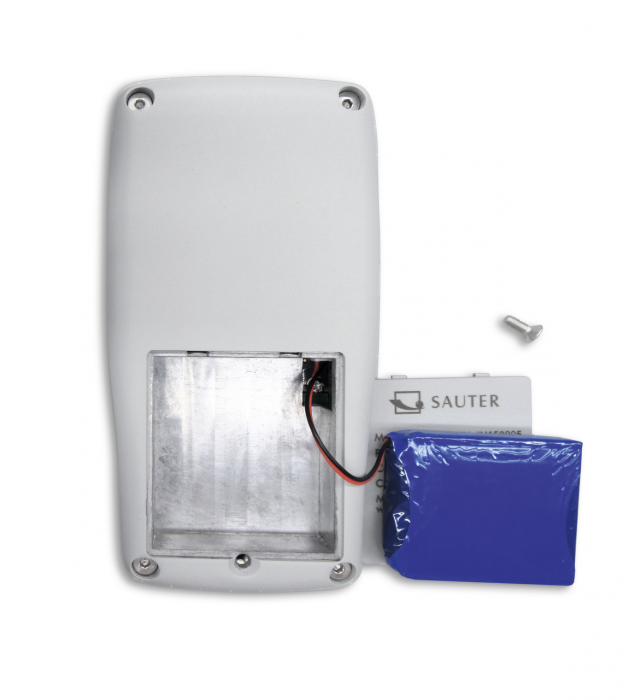

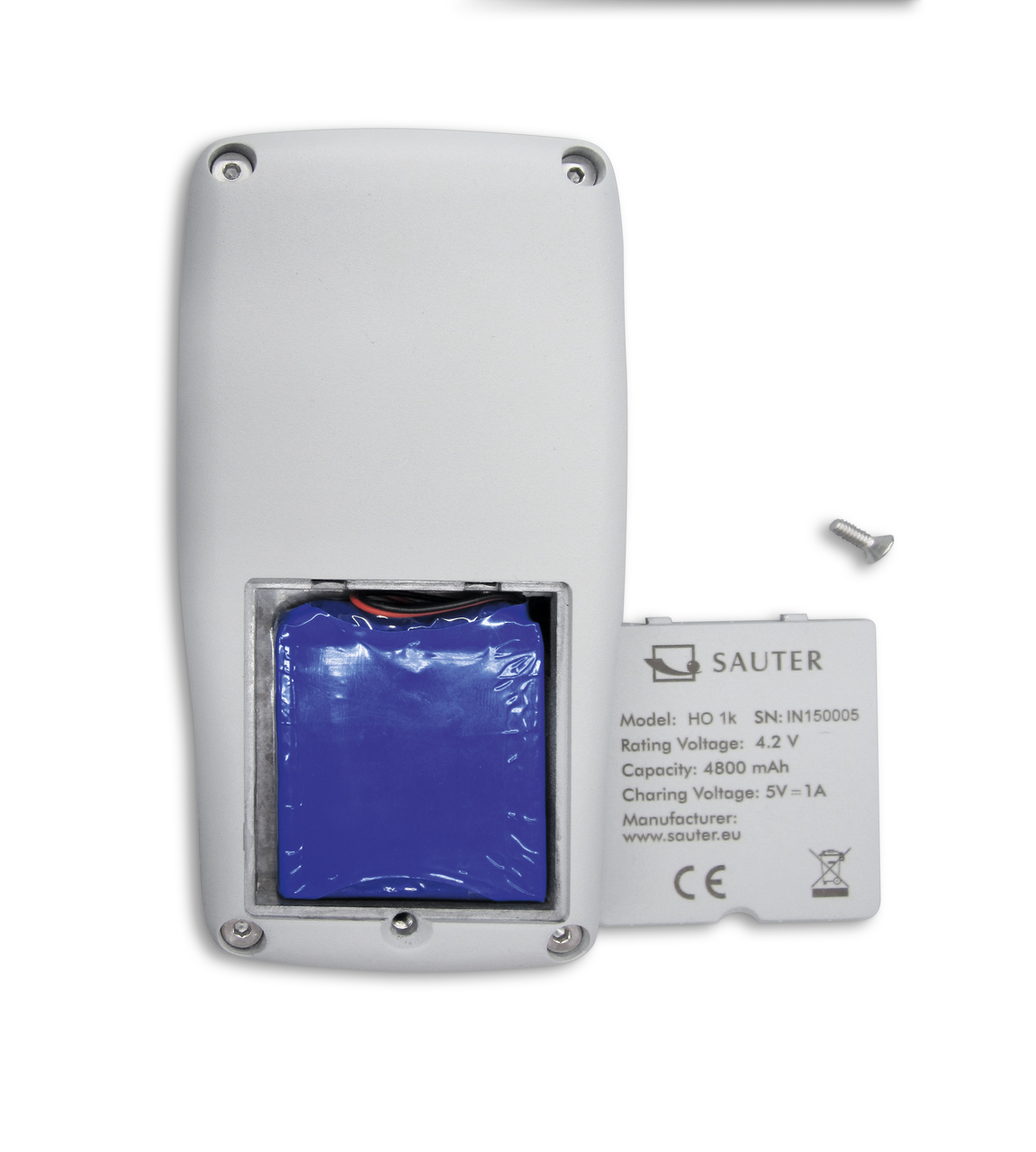

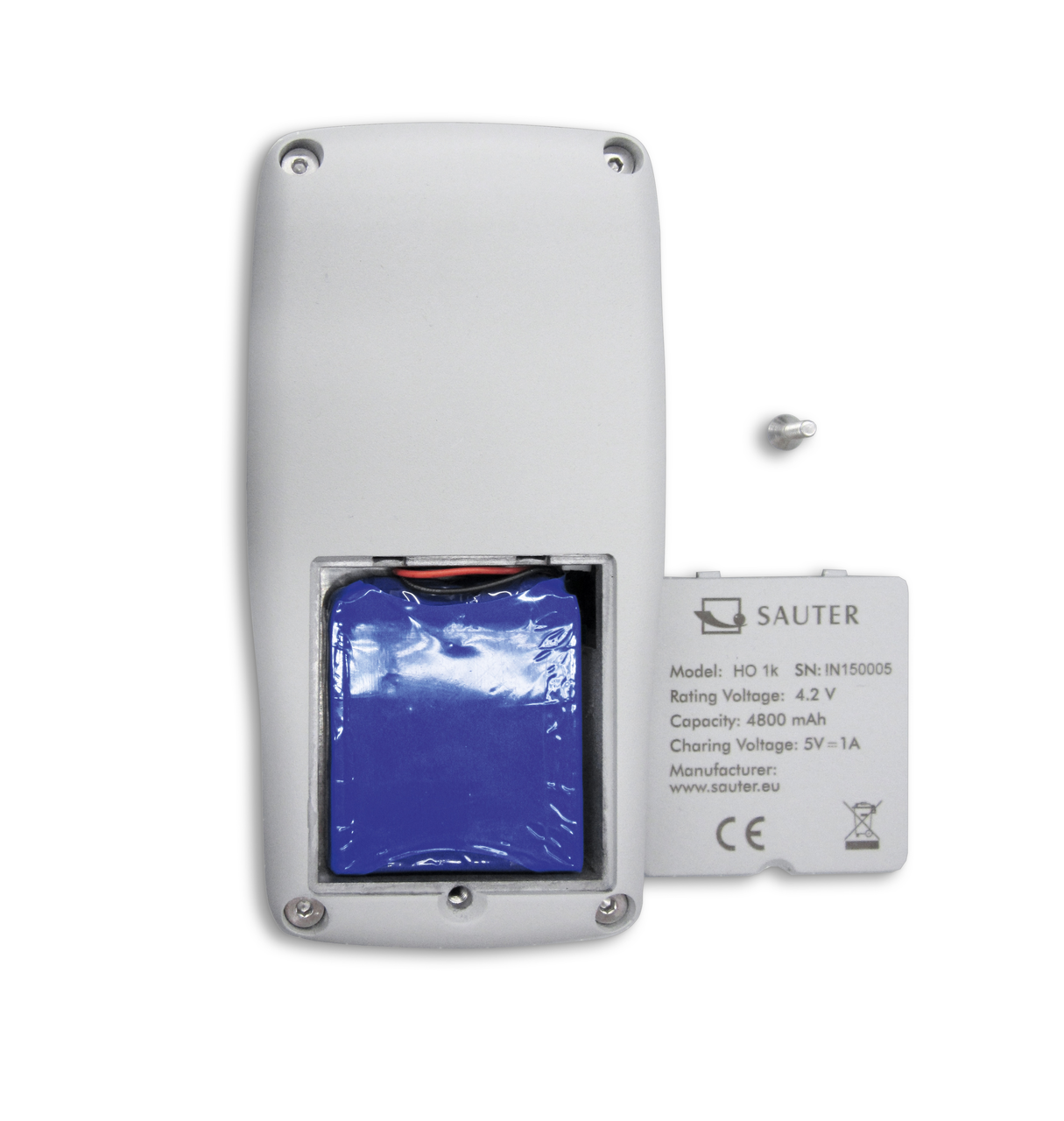

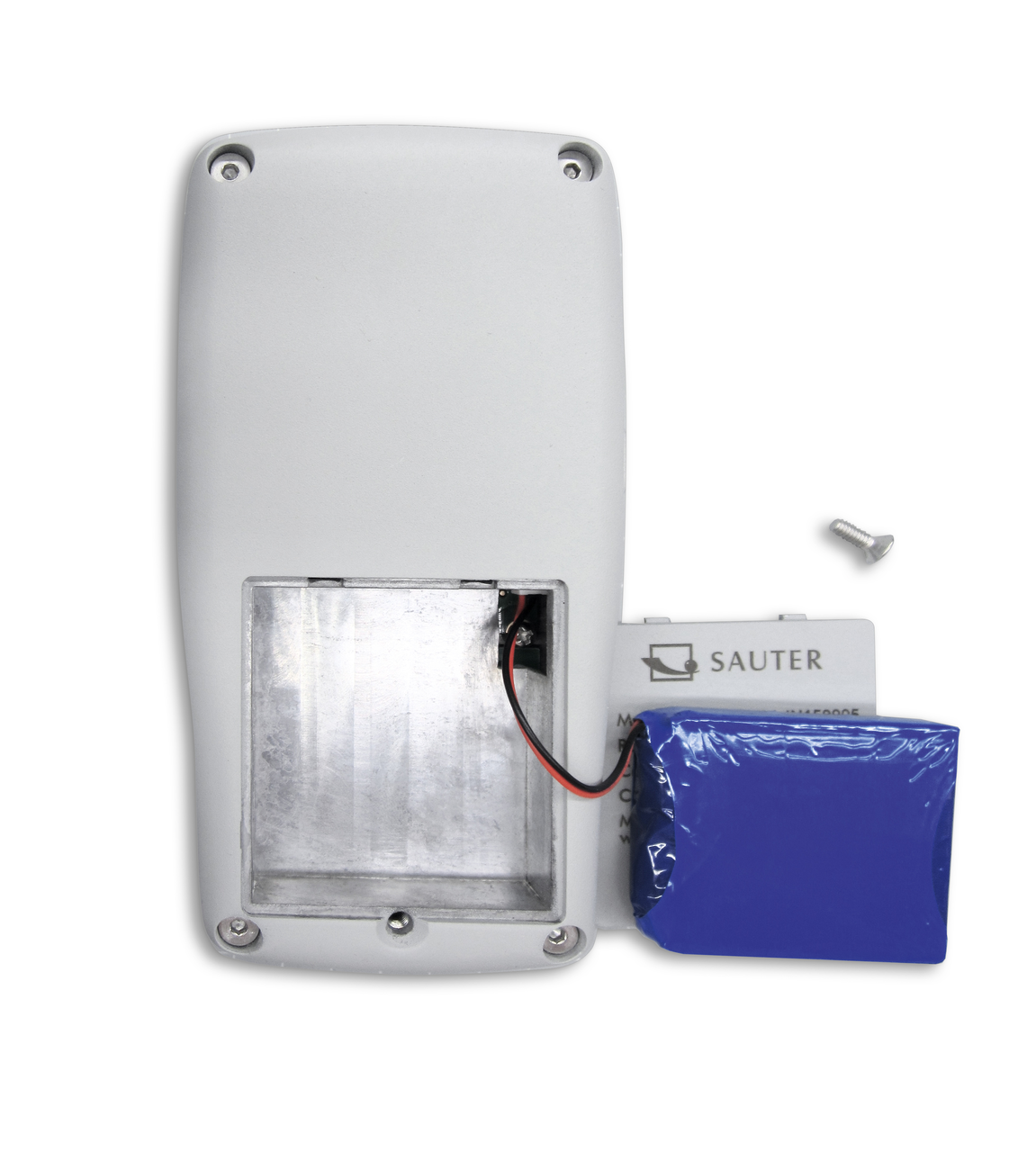

Timp de incarcare baterie: 8 h

Timp de functionare baterie: 6 h

Tip adaptor alimentare: EURO

Tip sursa de alimentare: USB including power supply

Numar UN: 3481

Greutate bruta: 4,4 kg

Dimensiuni ambalaj: 395×320×140 mm
