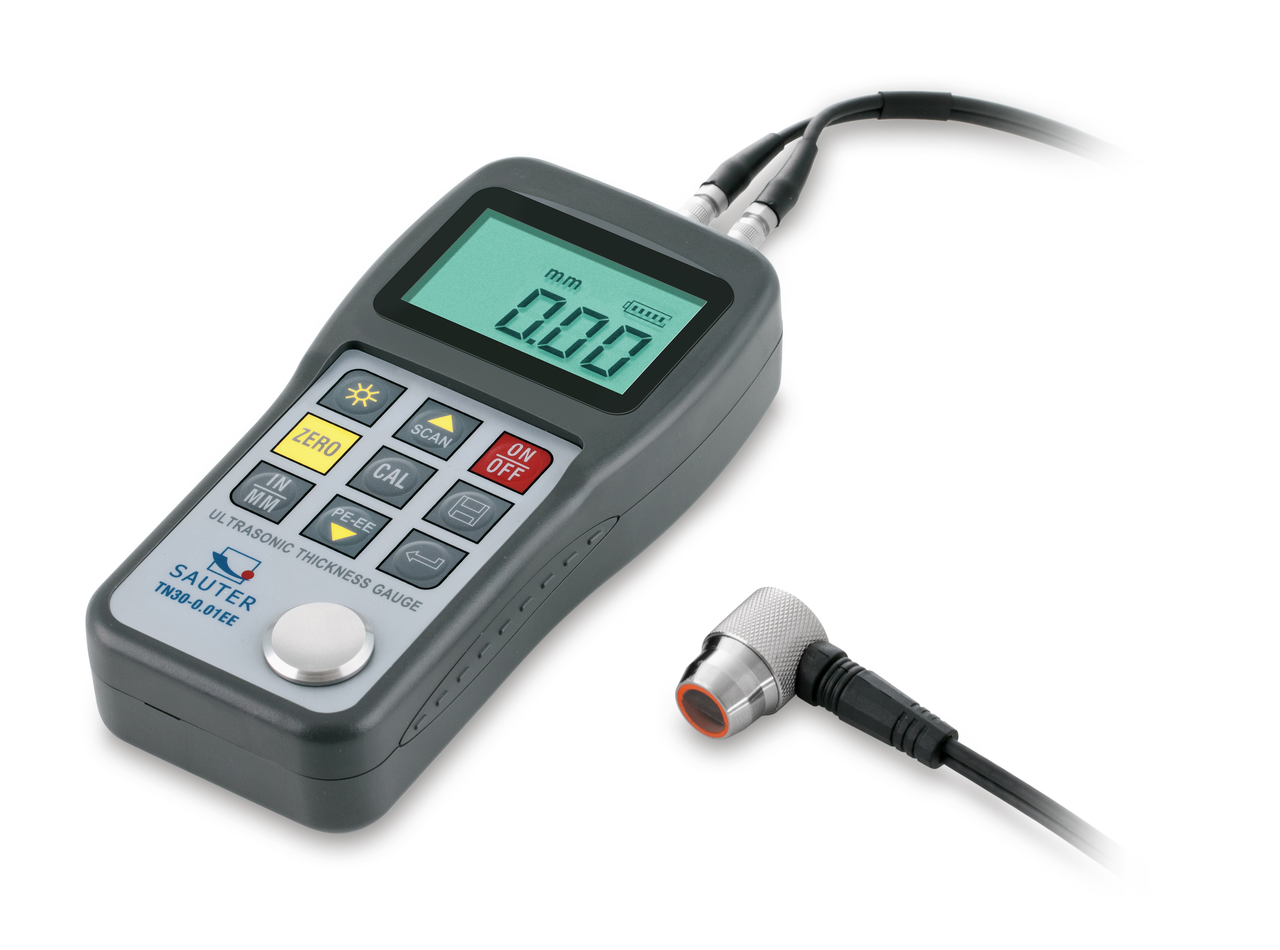

Dispozitiv ultrasonic pentru masurarea grosimii SAUTER TN 30-0.01EE

Name: Dispozitiv ultrasonic pentru masurarea grosimii SAUTER TN 30-0.01EE
SKU: TN 30-0.01EE
Price: 5734.52 RON
Availability: InStock

~~6.166,15 RON~~ 5.734,52 RON
Economisesti: 431,63 RON

Hand-held measuring device for ultrasonic material thickness testing in Echo-Echo principle

Unitati de masura: inch, mm

Grosimea materialului (Max): 600 mm

Grosimea materialului (Min): 0,65 mm

Afisare grosime material: 0,01 mm

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

FISA DE SECURITATE:

Categorie de produse: Masurarea grosimii materialului

Timp de operare baterie: 100 h

Material Carcasa: plastic

Dimensiuni carcasa (fara piese detasabile): 150×74×32 mm

Greutate neta: 0,25 kg

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Cod Produs: TN 30-0.01EE Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~6.166,15 RON~~ 5.734,52 RON * *plus costuri de livrare, TVA inclus

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Standard:

Optionale:

Descriere

External measuring head

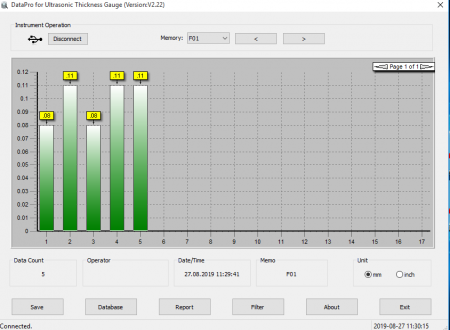

USB data interface, as standard
Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100} values per file)
Selectable measuring units: mm inch
Two measuring modes to determine material thickness:
- Pulse-Echo mode
- Echo-Echo mode
Echo-Echo measuring: Determining the actual thickness of materials irrespective of any coating which might be present. In this way, the wall thickness of pipes, for example, can be determined in a non-destructive manner, without having to remove the coating and the measurement can be shown on the display, with the adjustment for the coating thickness already taken into account
Echo-Echo measurements are only possible with the measuring head included as part of the delivery (SAUTER ATU-US12, see accessories)

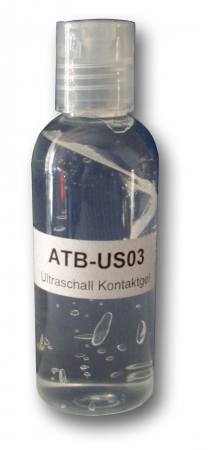

Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel

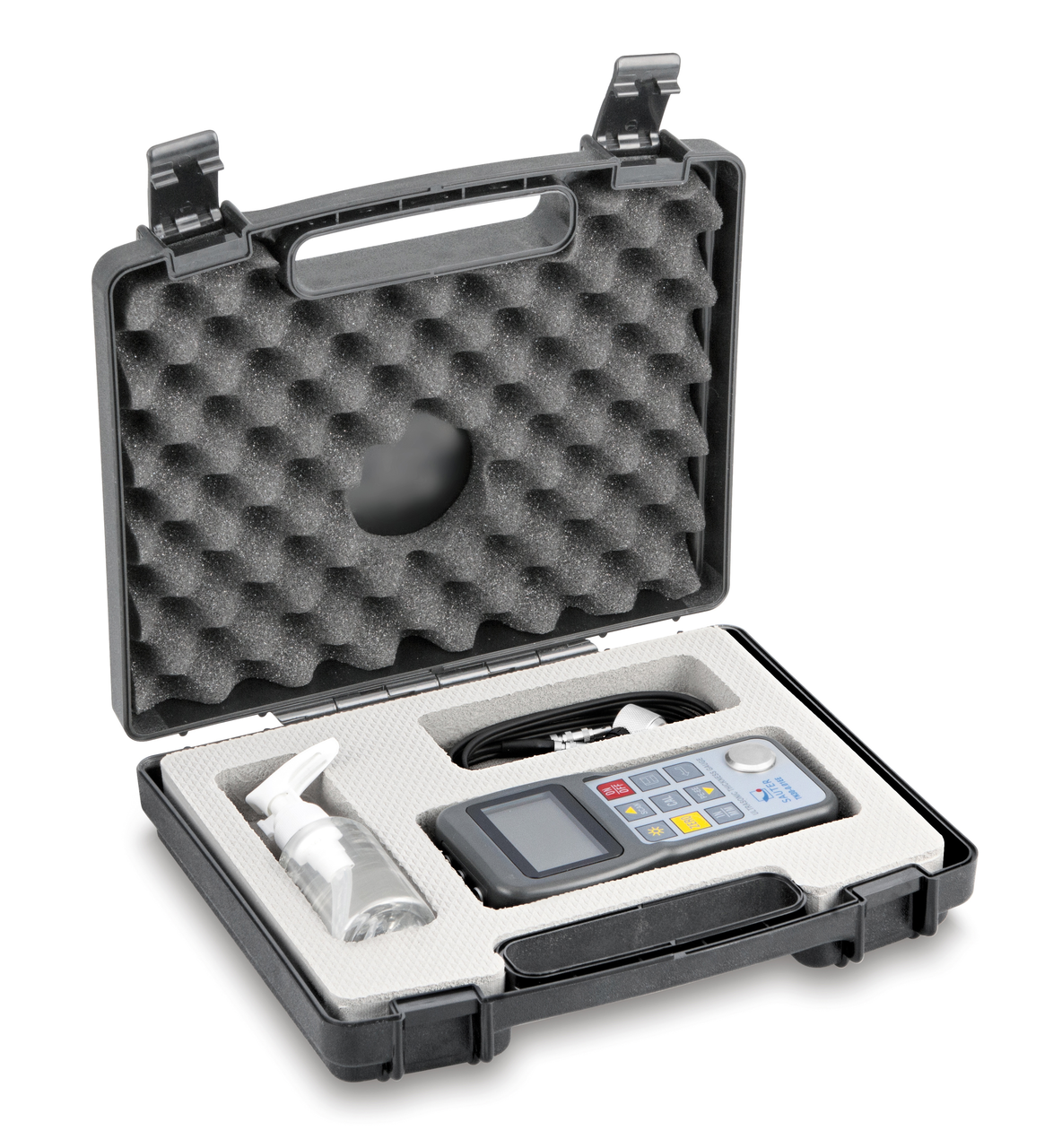

Delivered in a robust carrying case

Temperatura ambientala (max): 40 °C

Latimea carcasei: 150 mm

Adancimea carcasei: 74 mm

Inaltimea carcasei: 32 mm

Tip baterie: 2×1.5 V AA

Greutate bruta: 1,4 kg

Dimensiuni ambalaj: 320×248×85 mm
