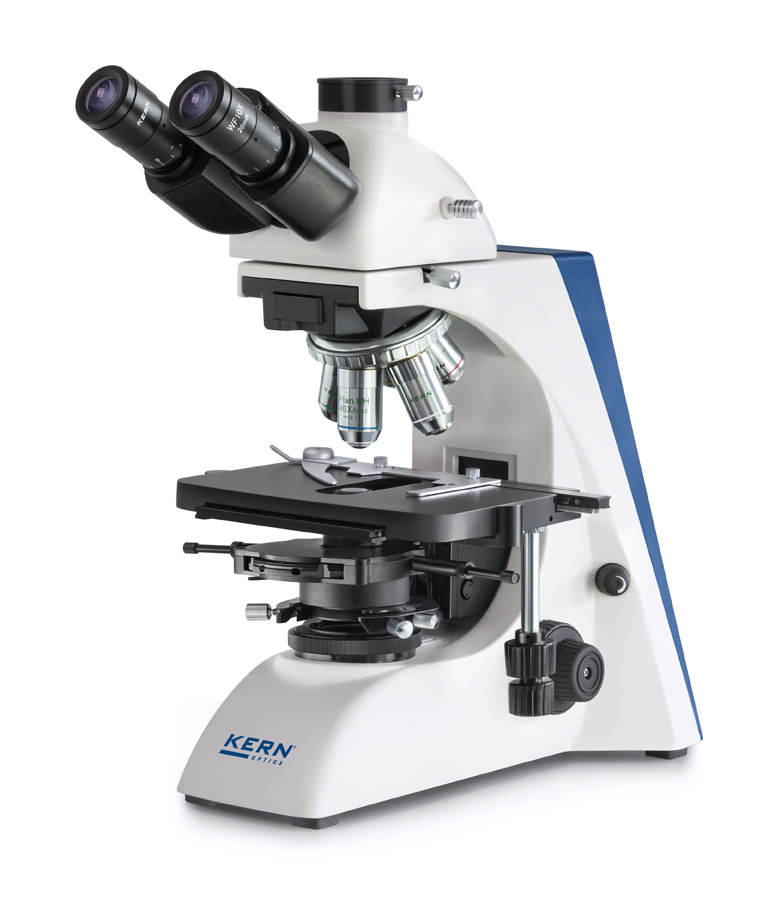

Microscop cu lumina transmisa KERN OBN 158

18.687,21 RON 16.818,49 RON
Economisesti: 1.868,72 RON
Professionalism and versatility united in one microscope – with Koehler illumination for demanding applications

Sistem optic: Infinity

Tip de tub: Trinocular

Tip de iluminare incidenta: none

Tip de iluminare transmisa: Halogen

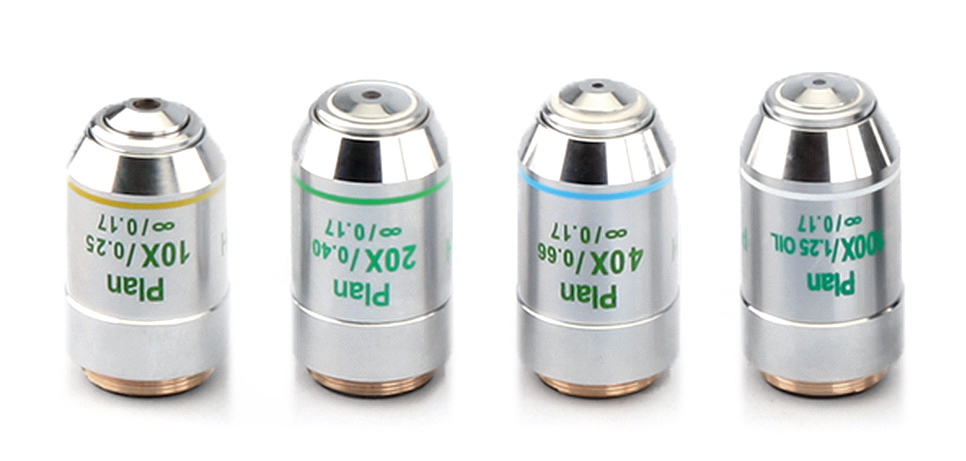

Obiective: 4 x / 10 x / 20 x / 40 x / 100 x

SPECIFICATII TEHNICE: Fisa Tehnica

BROSURA PRODUS: Brosura Produs

MANUAL DE OPERARE: Instructiuni Operare

Tip de obiectiv: Eyepiece HWF 10 x / Ø 20mm with anti-fungus, high eye point

Categorie de produse: Microscoape

Dimensiuni carcasa (fara piese detasabile): 390x200x400 mm

Greutate neta: 10 kg

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc
Adauga in cos
Cod Produs: OBN 158 Ai nevoie de ajutor? +40799 938 183 / +40729 668 980
Adauga la Favorite Cere informatii
18.687,21 RON 16.818,49 RON * *plus costuri de livrare, TVA inclus
In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc
Adauga in cos

Standard:

Delivery_Express_1_day
Trinocular microscope
360° rotating microscope head
Halogen lighting
Infinity system
Power supply 230 V
Phase-contrast unit
Abbe condenser

Optionale:

Darkfield condenser/unit
Length measurement
Polarisation unit
Fluorescent lighting for reflected light microscopes

Descriere

  • The OBN- series stands out because of its unbeatable and consistently high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user.
  • 20 W halogen illumination (Philips) (transmitted light)

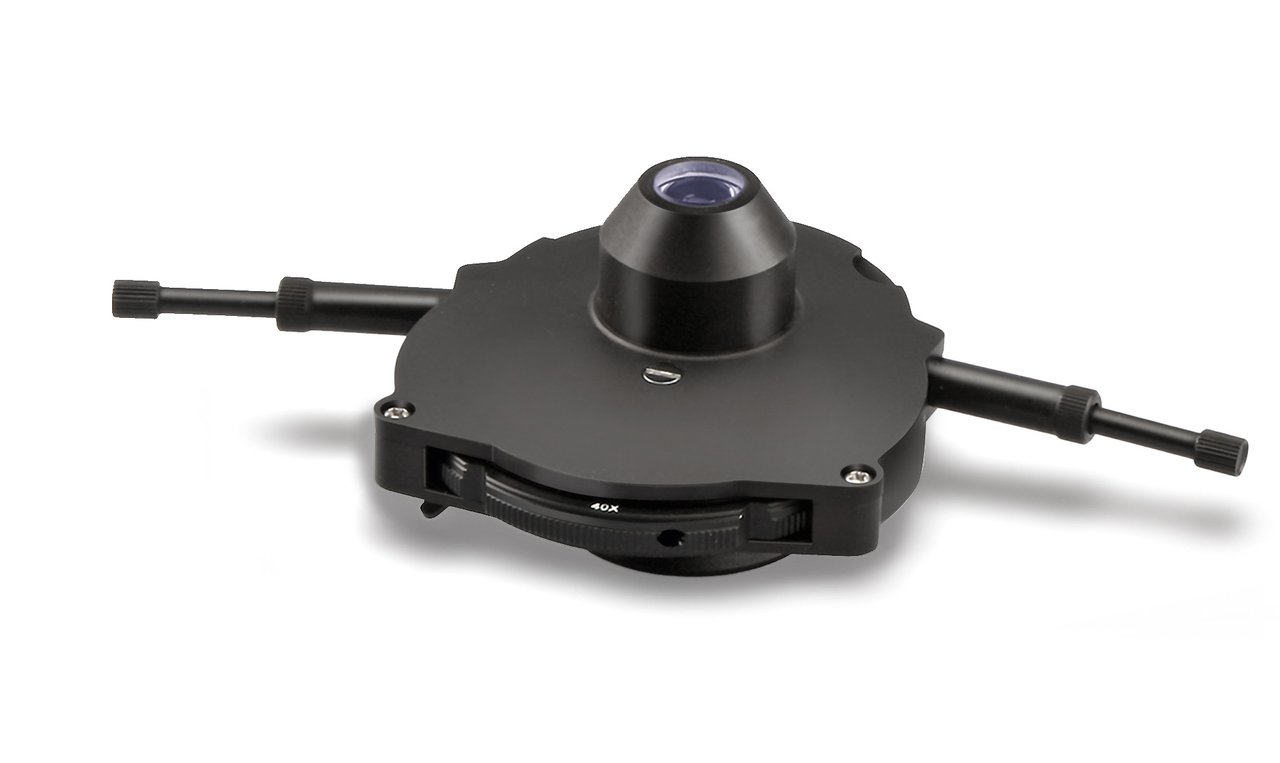

  • Pre-configured phase contrast microscope, which, through the combination of a professional quintuple condenser wheel, phase contrast condenser and Infinity Plan phase contrast objectives makes it a high-quality, fully-equipped microscope for all applications related to this contrasting method
  • This series has a professional Koehler illumination unit with an adjustable field diaphragm as well as a height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diaphragm.

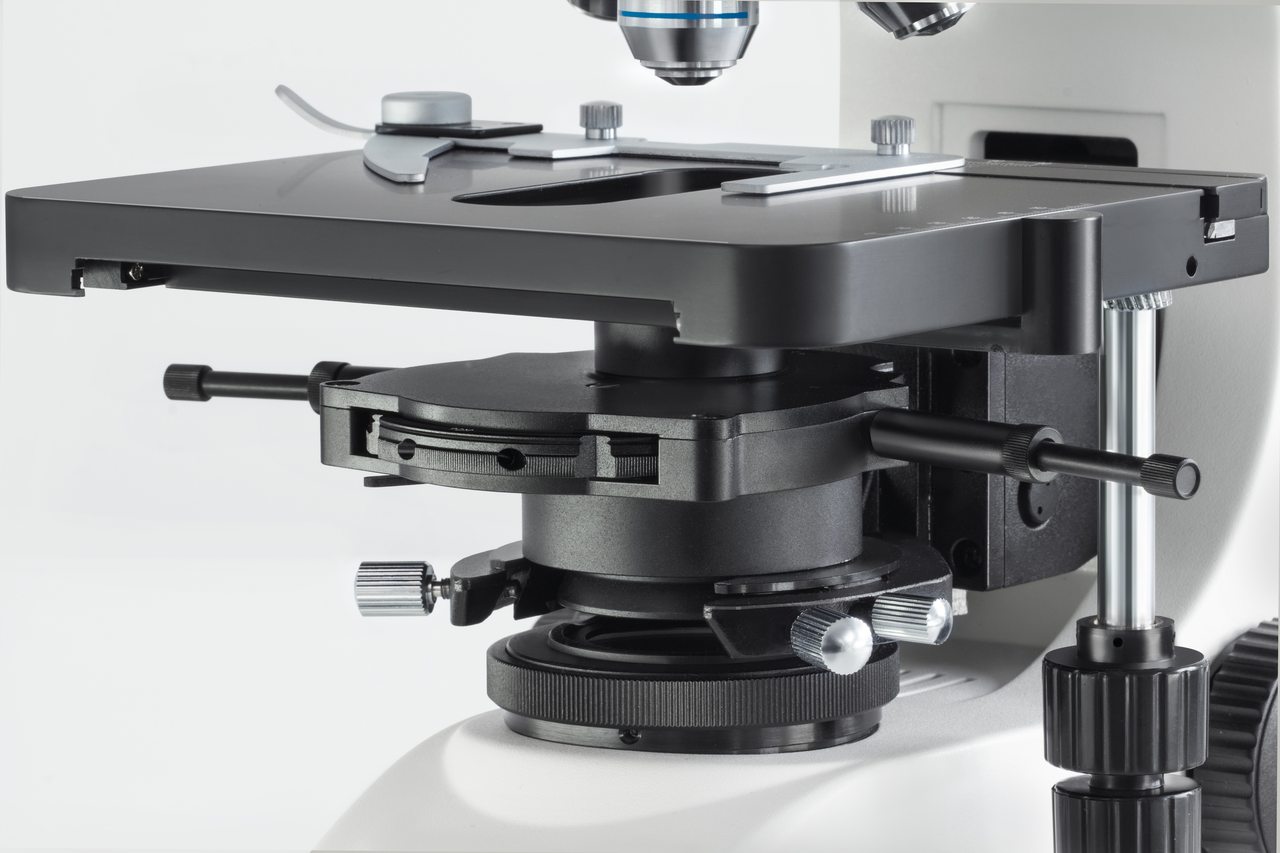

  • The extremely large mechanical stage with ergonomic, coaxial coarse and fine focusing knob on both sides enables you to adjust and focus your sample rapidly and accurately
  • A wide variety of modular systems, such as, for example, a swing-out condenser, various eyepieces, objectives, colour filters, phase contrast units, a darkfield condenser, a simple polarising unit, a Butterfly Tube, through to complete fluorescence units are available to you as accessories

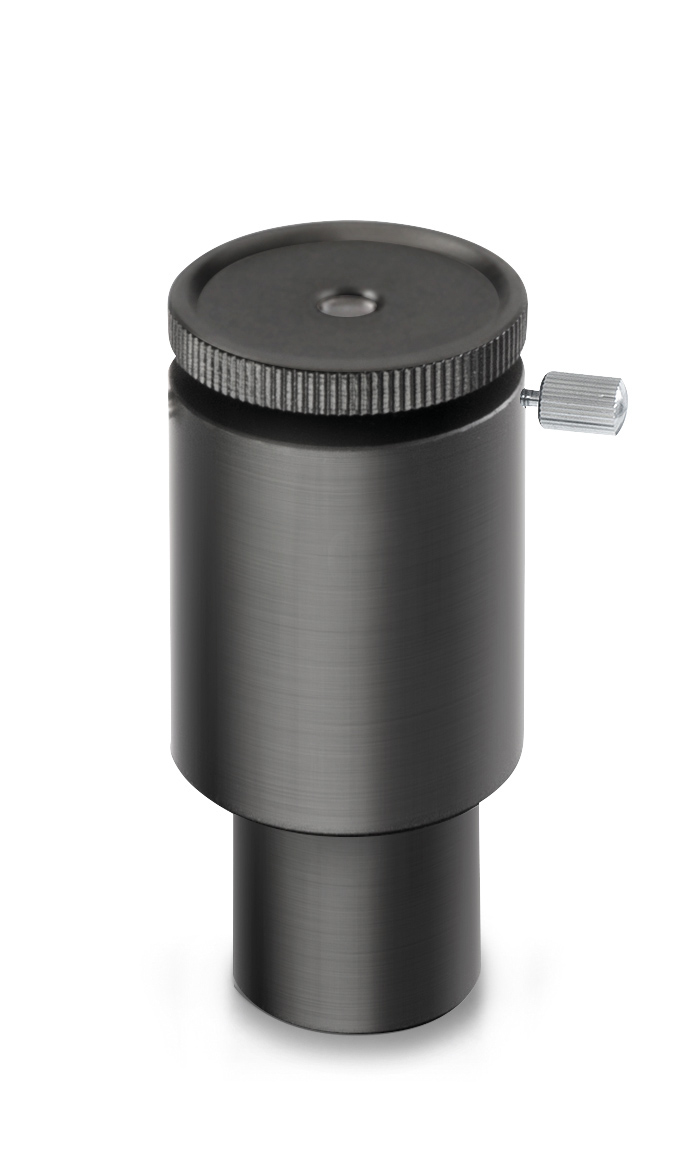

  • This centring eyepiece for adjusting the phase contrast, a protective dust cover, eye cups as well as multi-lingual user instructions are included in the scope of delivery
  • A C-mount adapter is required to connect a camera
Vezi mai mult

Latimea carcasei: 390x200x400 mm mm

Adancimea carcasei: mm

Tip adaptor alimentare: EURO

Tip sursa de alimentare: Built-in power supply

Greutate bruta: 11 kg

Dimensiuni ambalaj: 535×370×270 mm

INFORMATII IMPORTANTE:

  • Este necesar un adaptor C-mount pentru a conecta o camera (vezi accesorii)
