Software de transfer de date SAUTER AFH FD

Name: Software de transfer de date SAUTER AFH FD
SKU: AFH FD
Price: 4243.95 RON
Availability: PreOrder

~~4.467,31 RON~~ 4.243,95 RON
Economisesti: 223,37 RON

Data transfer software for force-displacement-measurements

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

Categorie de produse: Software SAUTER

Greutate neta: 0,45 kg

Precomanda

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Precomanda

Cod Produs: AFH FD Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~4.467,31 RON~~ 4.243,95 RON * *plus costuri de livrare, TVA inclus

Precomanda

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Precomanda

Compara

Standard:

Descriere

AFH FD software is designed for all applications that require the measurement of forces, depending on the displacement. Typically these are force progression graphs in penetration tests or pullout tests
The program simultaneously requests the measurements from a force measuring device, e.g. SAUTER FH, as well as a length measuring device, e.g. SAUTER LB or SAUTER LD

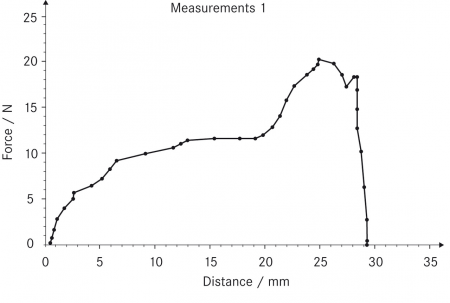

The measurements from both instruments are transferred continuously to the PC, synchronised by the AFH FD software and exported in the form of a graphic, as well as free data format for simple processing in Microsoft Excel®
The software AFH FD is compatible with all instruments of series SAUTER FC, FH, FL

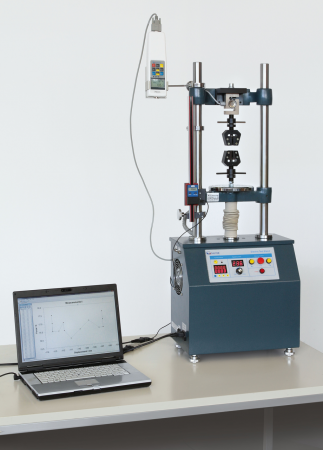

These measuring instruments are usually used with SAUTER test stands, in particular those from the SAUTER TVM-N and TVS range. However, it is also possible to use them with mechanical testing machines
Further analysis functions:
- Extension of the test object
- Tensile and compressive force
- Endurance testing
- Archiving the recorded data
Scope of delivery for SAUTER AFH FD:
- Software AFH FD on DVD
- User manual
- RS-232 interface cable for FH (FH-A01)
- USB interface cable for FL (FL-A01)
- RS-232 interface cable for LB (LB-A01)
Compatible with the following operating system: Microsoft Windows 10, 11®
Order example for a complete test system:
- FH 5K (Digital force gauge)
- LB 300-2 (Digital length measuring device)
- AFH FD (Force-distance evaluation software)
- TVM 5000N230N* (Test stand)
- LB-A02* (Mounting LB on test stands)
- 2× AFH 12 (RS-232/USB adapter)
- AC 04* (Test object holder)
- 963-163* (Force calibration)
- 961-150* (Length calibration)
* not necessarily required for operating the AFH FD software
