BalanceConnection Standard KERN SCD-4.0-DLS05

• Scope of supplies: Download link for 5 licenses
• For operating systems Windows 10 (20H2 and newer) or Windows 11 in combination with .NET Framework 4.8.1
• Full administration rights are required for the installation
• Supports balances and measuring devices with USB, RS-232, RS 485, Bluetooth, LAN or WiFi network (TCP/UDP/IP)
• Highly flexible formatting and design of the output (any order and positioning, formatting and rounding), particularly recording of date and time for every value transferred, if required

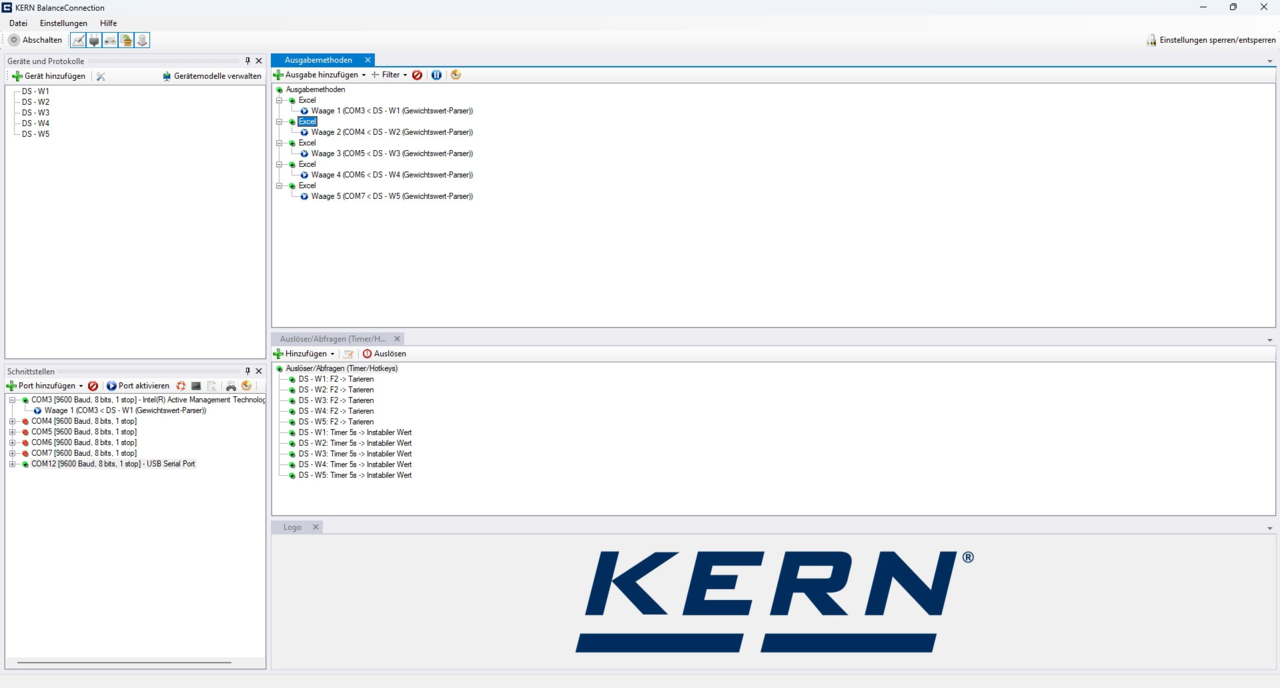

• Any number of devices/interfaces can be connected, as well as simultaneous and synchronised recording of several balances
• Key-activated or time-controlled interrogation of measurements or trigger of device functions, also for continuous recording
• The interface protocols for KERN balances are already predefined (standard configuration). Support of other balances is possible through flexible configuration
• Compatible interface cable included when you order a KERN balance at the same time
• Many different transfer and recording options:

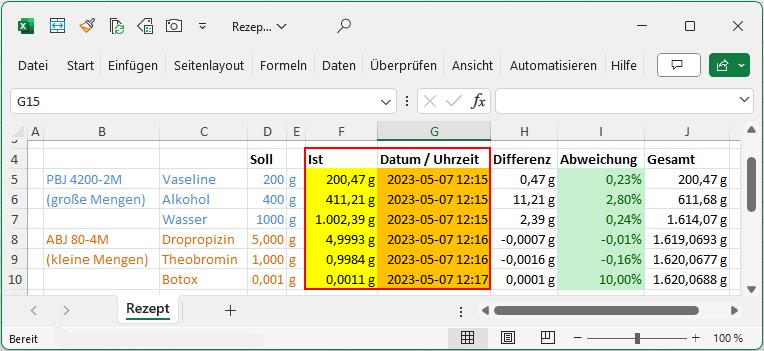

  - MicrosoftR Excel/Access/Word in the foreground or background
  - Other Windows applications (through key simulation), e.g. shipping software or ERP system (SAP, Sage, etc.)
  - File recording (e.g. as text or CSV file)
  - Print out on text or label printer

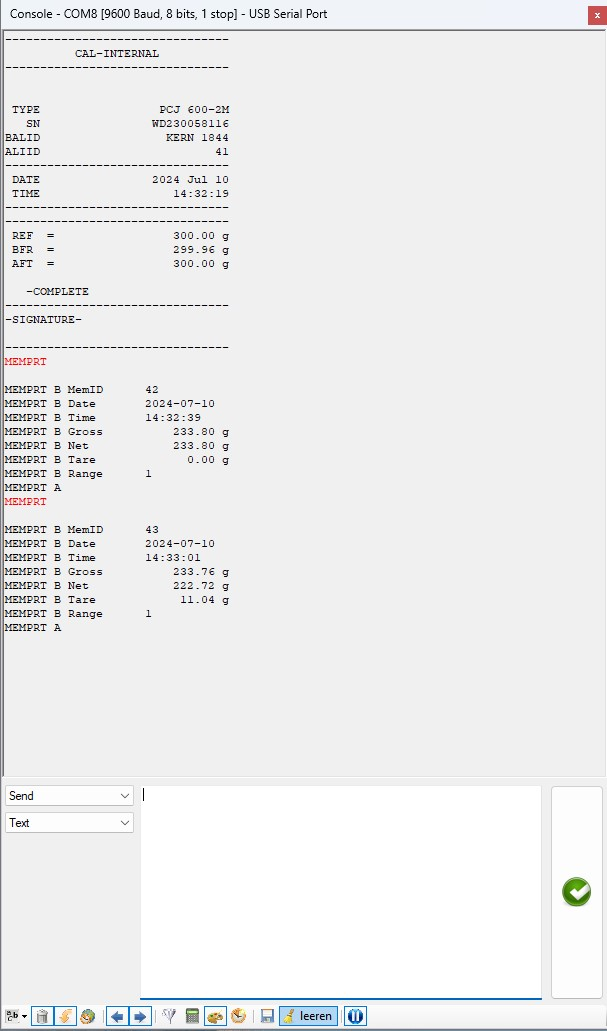

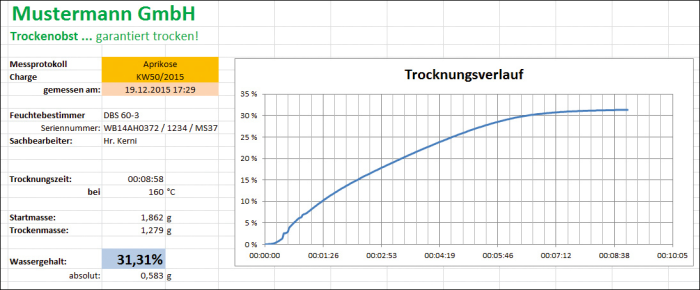

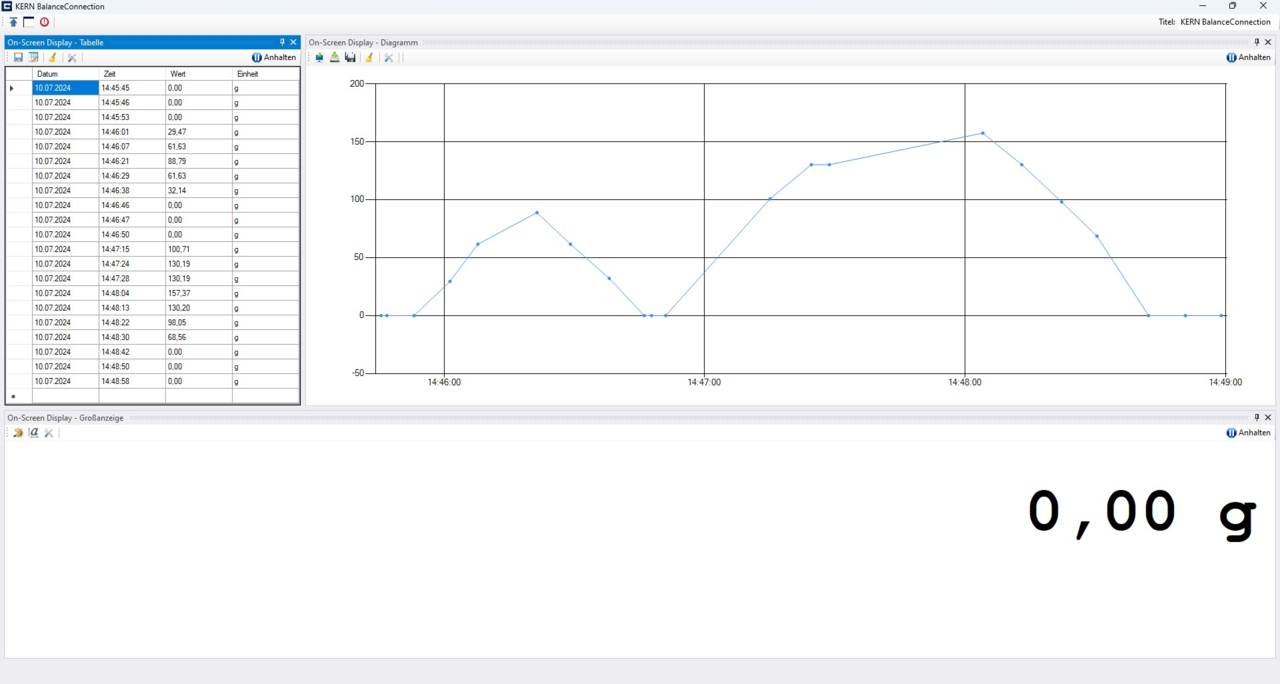

• Screen output such as large display, line chart (drying curve for moisture analyser), histogram, etc.
• Centralised configuration: Shared storage location for settings with access for all users and administrators
• Diagram functions and filters: Cursor information and zoom enable easy navigation and precise data analysis. The X-axis can be switched between runtime and real time – for maximum flexibility with visualisation
• Light/dark design selectable in simple and expert mode. Consistent application across the entire user interface
• Standard devices update: Update the device list via XML file when new devices are published by KERN

Benefits

• Typing errors during manual transfer, for example, are avoided
• Automatic recording, e.g. for long-term tests
• GLP-compliant lab software
• Can be used across different branches and applications
