Bundle BalanceConnection Pro SCD-4.0-PRO-DL-AS05

• Scope of supplies: Download link for 5 licenses
• For operating systems Windows 10 (20H2 and newer) or Windows 11 in combination with .NET Framework 4.8.1
• Full administration rights are required for the installation
• Supports balances and measuring devices with USB, RS-232, RS 485, Bluetooth, LAN or WiFi network (TCP/UDP/IP)
• Highly flexible formatting and design of the output (any order and positioning, formatting and rounding), particularly recording of date and time for every value transferred, if required
• Any number of devices/interfaces can be connected, as well as simultaneous and synchronised recording of several balances
• Key-activated or time-controlled interrogation of measurements or trigger of device functions, also for continuous recording
• The interface protocols for KERN balances are already predefined (standard configuration). Support of other balances is possible through flexible configuration
• Compatible interface cable included when you order a KERN balance at the same time
• Many different transfer and recording options:

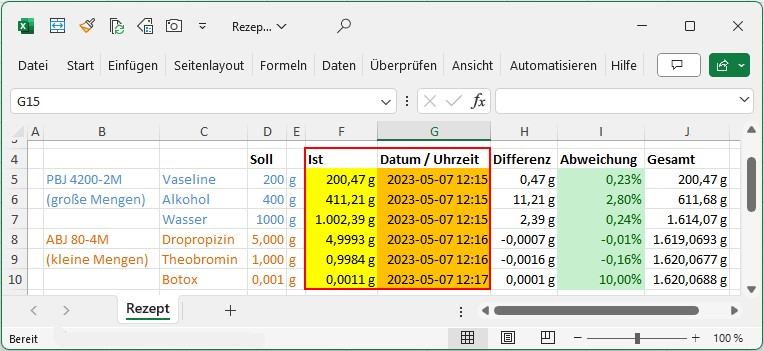

  - MicrosoftR Excel/Access/Word in the foreground or background
  - Other Windows applications (through key simulation), e.g. shipping software or ERP system (SAP, Sage, etc.)
  - File recording (e.g. as text or CSV file)
  - Print out on text or label printer
• Centralised configuration: Shared storage location for settings with access for all users and administrators

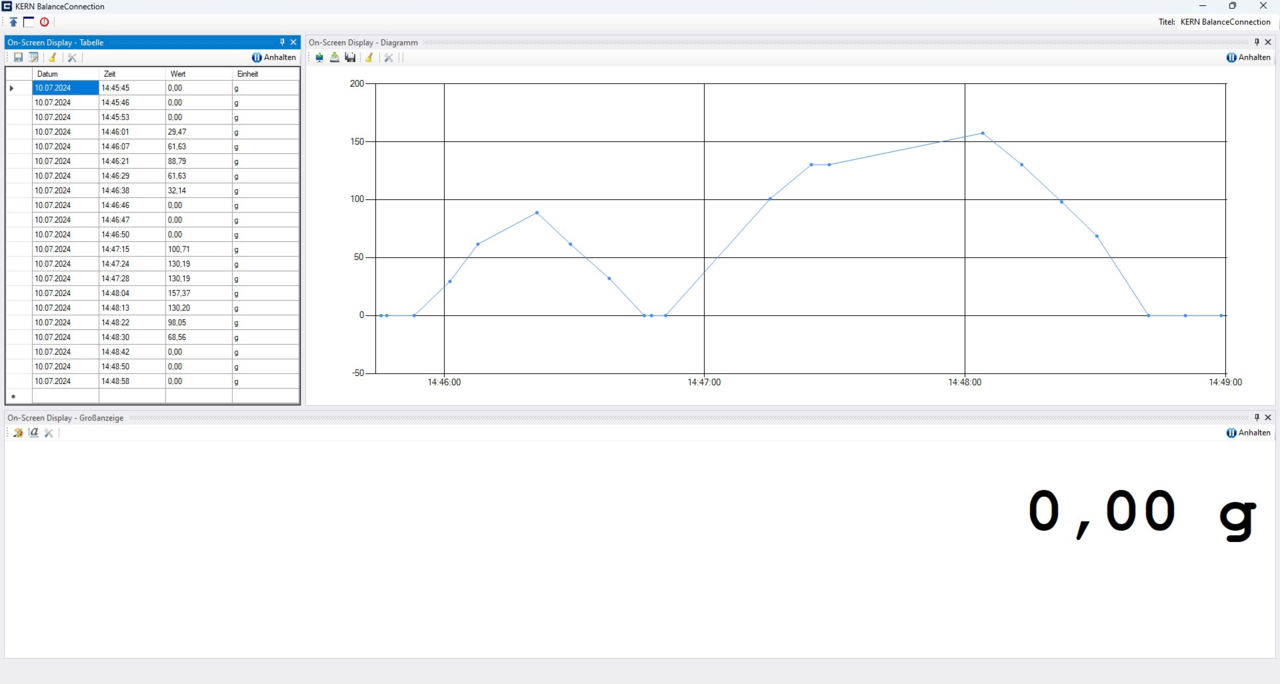

• Diagram functions and filters:
  - Cursor information and zoom enable easy navigation and precise data analysis. The X-axis can be switched between runtime and real time – for maximum flexibility with visualisation
  - Range markers, extended filters such as slope and area calculation, new trend lines and optional display of the last value per data series
• Light/dark design selectable in simple and expert mode. Consistent application across the entire user interface
• Standard devices update: Update the device list via XML file when new devices are published by KERN

Additional features of the BalanceConnection PRO version:

• The data from the diagram, histogram and table can be output in Excel, Word, PDF, CSV and PNG format. The large display is also available as a PNG, Word or PDF file – for a true representation that exactly matches the original
• Windows service for controlling and managing device connections and background processes including time-controlled file recording and printer methods. Centralised and user-specific configuration options
• Device instance table: Clear visualisation and tracking of weight, PC data and time stamps. With precise filtering (right down to the seconds level), sorting, export functions and uniform view for multiple devices
• ODBC/SQL databases such as SQL Server or MySQL
• Transfer to HTTP Webservices/Web forms
• Histogram
• Enables the connection of medical balances to practice EDP systems using the device data transfer protocol (GDT) and also the HL7 protocol, on request
• Implementation of programs/scrips using freely-definable command lines
• Command sequences
• Defining the conditions for specific events and the reaction to these events
• Filter for stability recognition (configurable value storage)
• Central configuration repository, e.g. on the network
• On-screen displays with configurable user interface for flexible balance operation

Benefits

• Ideal software where weighing data which has been collected needs to be transferred to a Windows PC
• Particularly suitable for professional integration of weighing systems into existing networks where there is a high demand for automated data transfer and further processing, for integration of databases
• Automatic recording, e.g. for long-term tests
• GLP-compliant lab software
• For each license, you can use as many balances as you need at one PC/workstation
• Can be used across different branches and applications
