Stand de textare pentru teste de exfoliere SAUTER TPE-N

Name: Stand de textare pentru teste de exfoliere SAUTER TPE-N
SKU: TPE-N
Price: 7665.53 RON
Availability: InStock

~~8.242,51 RON~~ 7.665,53 RON
Economisesti: 576,98 RON

Forta maxima generata: 500 N

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

Categorie de produse: Standuri testare forta

Material Carcasa: metal, lacquered

Dimensiuni carcasa (fara piese detasabile): 215×420×50 mm

Greutate neta: 4,6 kg

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Cod Produs: TPE-N Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~8.242,51 RON~~ 7.665,53 RON * *plus costuri de livrare, TVA inclus

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Descriere

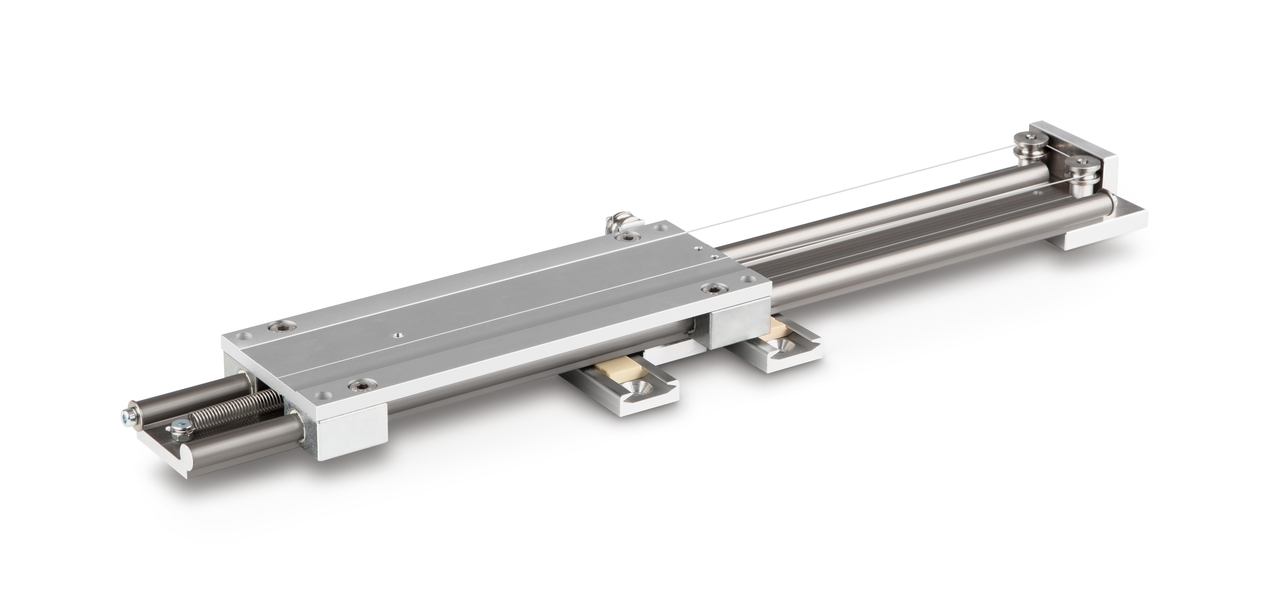

The attachment for peel tests, SAUTER TPE-N has been specially developed for peel testing up to 500 N. Typically this involves pulling a bonded material layer from a base material. As a general rule the significant value in this process is the force required to pull away the top layer from bonded material
The attachment can be fitted onto all SAUTER force measuring test stands quickly and easily and thereby offers the highest level of flexibility in terms of travel path, measuring range, sample fixings, ecc.
The attachment has been designed in the way, that a bonded material, e.g. adhesive tape, plasters, ecc., or an appropriate basic medium can be applied to the moving carriage. The test item is fixed to the force measuring device with a suitable clamp (both not included in the scope of delivery). Then the carriage is aligned such that the start of the test item is vertically directly below the force measuring device. By moving the test stand upwards, the carriage is moved and the test item is peeled off at a 90-degree angle to the surface
Suitable for all SAUTER force measuring device up to 500 N (not included with the delivery)
Suitable for SAUTER test stands TVO 500N300, TVO 1000N500S, TVO 2000N500S, (not included with the delivery)

Latimea carcasei: 215 mm

Adancimea carcasei: 420 mm

Inaltimea carcasei: 50 mm

Greutate bruta: 7 kg

Dimensiuni ambalaj: 580×460×270 mm
