Stand pentru durometru shore SAUTER TI-DL

Name: Stand pentru durometru shore SAUTER TI-DL
SKU: TI-DL
Price: 2603.94 RON
Availability: InStock

~~2.799,94 RON~~ 2.603,94 RON
Economisesti: 196,00 RON

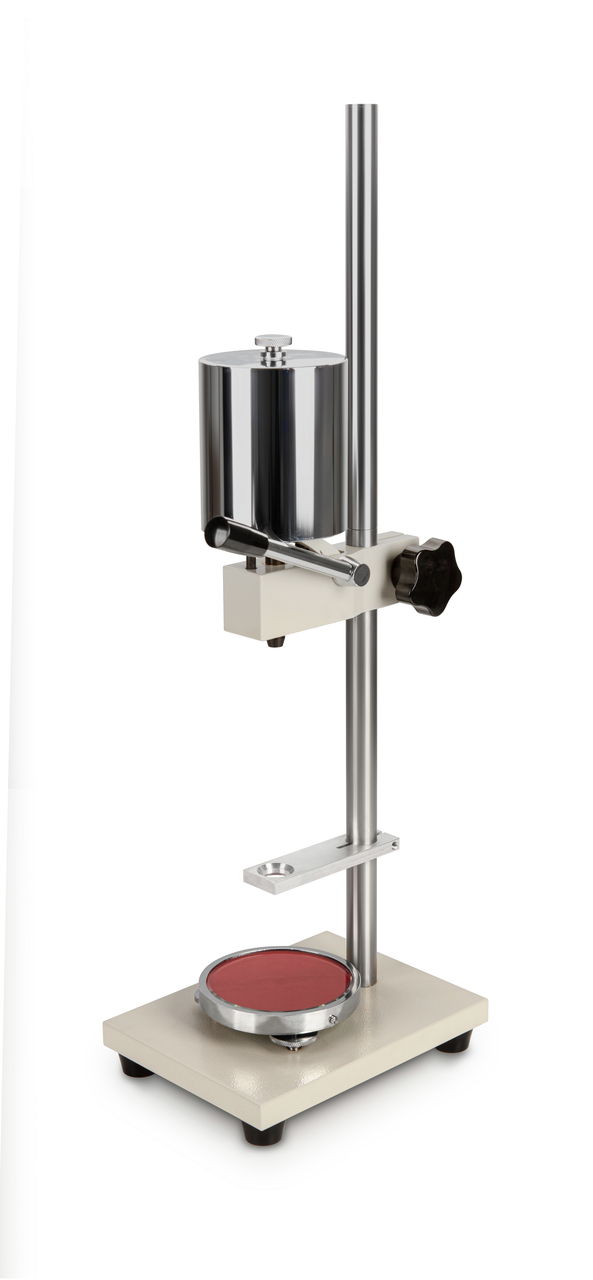

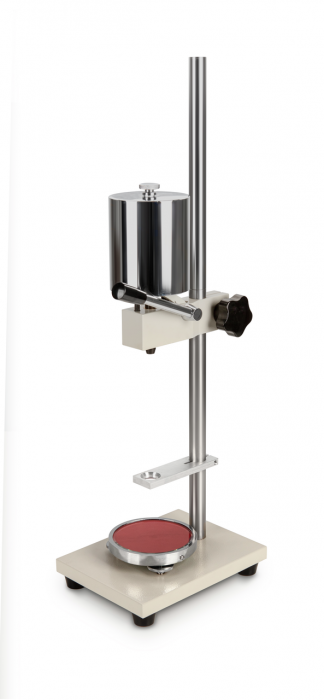

Lever operated test stand for hardness testing with base plate made of glass

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

Categorie de produse: Durometre

Material Carcasa: metal, lacquered

Dimensiuni carcasa (fara piese detasabile): 150×110×380 mm

Greutate neta: 8 kg

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Cod Produs: TI-DL Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~2.799,94 RON~~ 2.603,94 RON * *plus costuri de livrare, TVA inclus

In stoc

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Standard:

Descriere

For Shore hardness testing of plastics, leather etc.

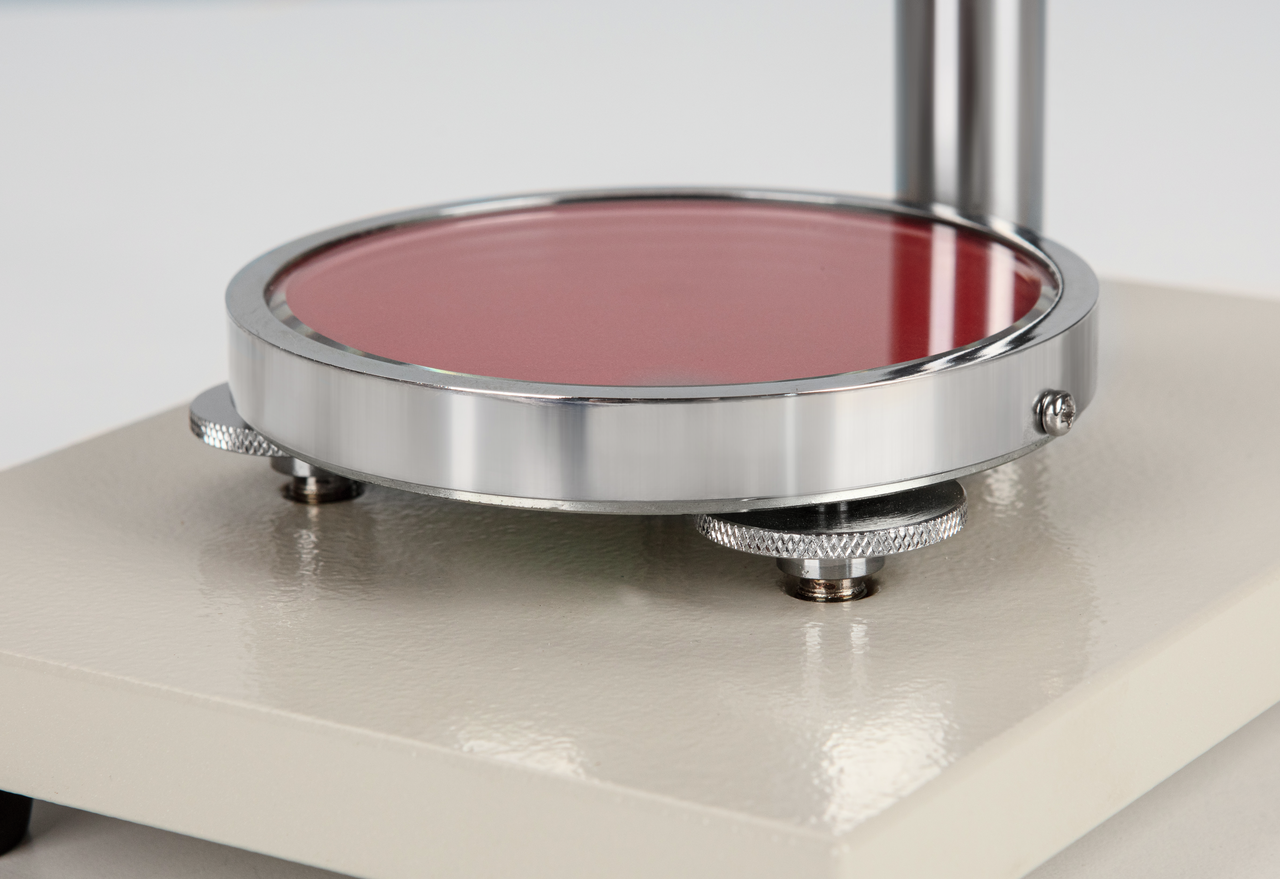

Glass plate: high measurement accuracy by means of superior hardness of the glass plate
Mechanical construction: Robust design enables accurate measuring movements
Level adjustment: For the precise levelling of the base plate, e.g. for the correction of inhomogeneous test objects
with exchangeable longer column for use with digital hardness tester HD
Hardness tester is not included with delivery
Operation:

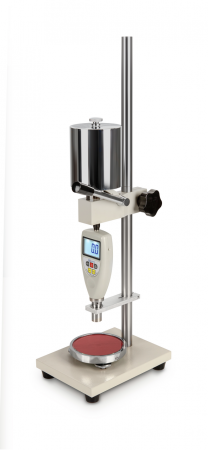

1. The SAUTER hardness testing device HDD is fitted in a suspended position
2. The test object is placed on the round testing table right under the durometer measuring tip
3. By pressing the lever down, the test weight will be released, and this then presses the measuring tip into the test object with its own weight (see test force hardness measurement)
The accuracy of the displayed result is about 25 % higher than in a manual operated test

Latimea carcasei: 150 mm

Adancimea carcasei: 110 mm

Inaltimea carcasei: 380 mm

Greutate bruta: 9 kg

Dimensiuni ambalaj: 355×255×180 mm
