Set celule de forta CW 1500R

Name: Set celule de forta CW 1500R
SKU: CW 1500R
Price: 7021.86 RON
Availability: PreOrder

~~7.550,39 RON~~ 7.021,86 RON
Economisesti: 528,53 RON

Scale kit for individual assembly of floor scales - suitable for use in harsh industrial environments with humid environmental conditions

Capacitate de cantarire [Max]: 1500 kg

SPECIFICATII TEHNICE:

BROSURA PRODUS:

Categorie de produse: Celule de forta

Clasa de precizie: III

Greutate neta: 9 kg

Precomanda

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Cod Produs: CW 1500R Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~7.550,39 RON~~ 7.021,86 RON * *plus costuri de livrare, TVA inclus

Precomanda

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Precomanda

Standard:

Descriere

With SAUTER scale kits, individual weighing solutions can be put together, for example, individual balance manufacturing in industry, automotive manufacturing and agriculture. In this way, a wide range requirements in terms of dimensions, materials, combinations of peripheral devices etc. can be fulfilled. Especially suitable for the manufacture of platform scales, weigh hoppers, silo scales, flush-mounted floor scales and other weighing devices. Area of use: Measuring mass as well as compressive force in harsh environments

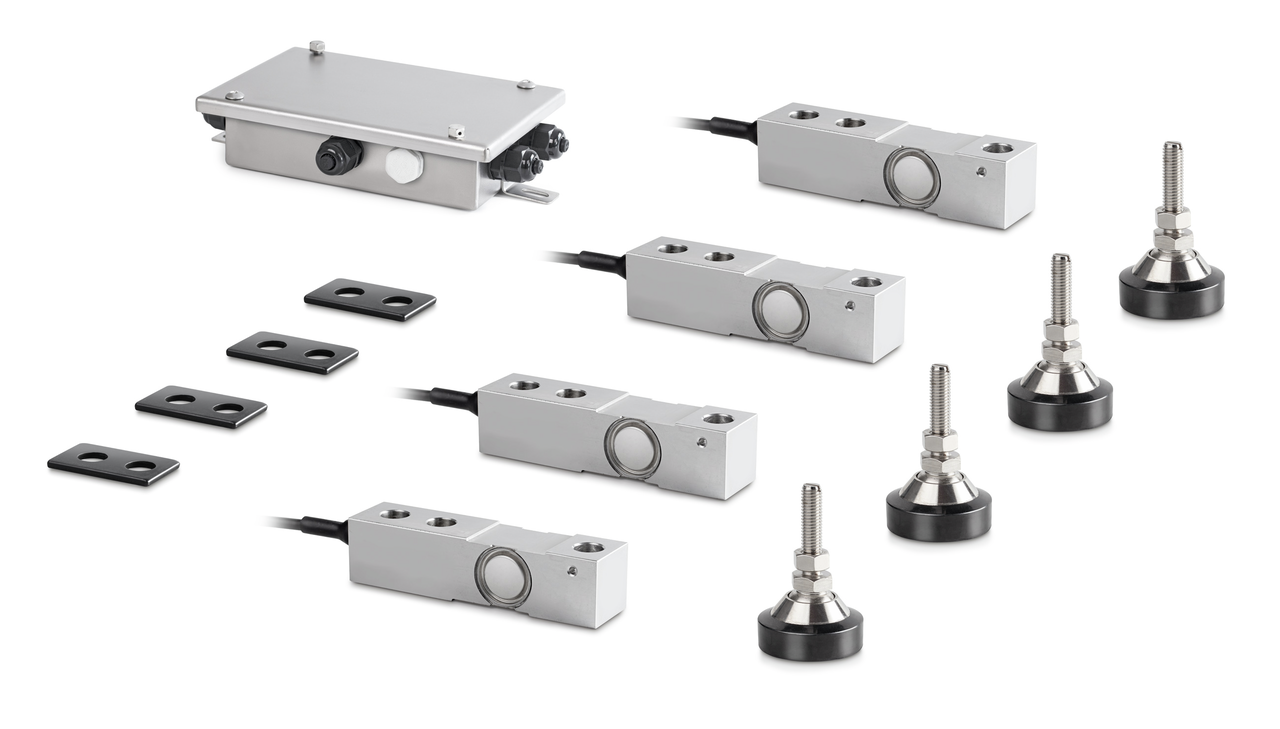

Details for weighing cells (4 × SAUTER CT 500-3Q1):
- Accuracy in accordance with OIML R60 C3
- CE and RoHS compliant
- Protection against dust and water splashes IP68/IP69K
- alloy steel
- 6-wire connection
- Nominal sensitivity: 2 mV/V
Junctionbox SAUTER CJ X467:
- Robust housing made of stainless steel with IP67 dust and spray protection
Note: Use the SAUTER CW R in combination with one of our display devices, for example, KFS-TM, YKV, CE HS

Sistem de cantarire: Strain gauge

Greutate bruta: 10 kg

Dimensiuni ambalaj: 520×430×340 mm

Accesorii
