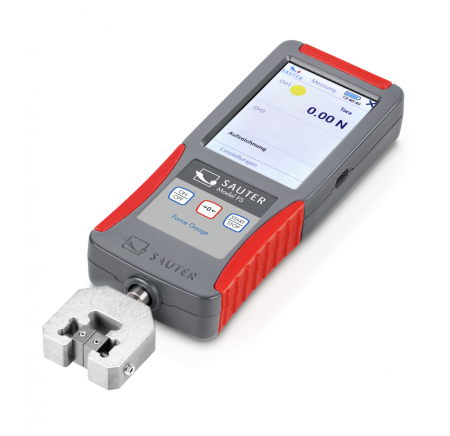

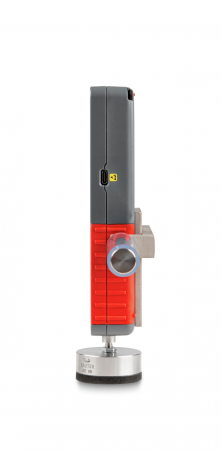

Dispozitiv digital pentru masurarea fortei SAUTER FS 4-50

Name: Dispozitiv digital pentru masurarea fortei SAUTER FS 4-50
SKU: FS 4-50
Price: 6904.83 RON
Availability: InStock

~~7.424,55 RON~~ 6.904,83 RON
Economisesti: 519,72 RON

Premium force gauge with integrated load cell and connection possibility for up to 4 external load cells

Maxim (N): 50 N

Precizie (N): 0,01 N

SPECIFICATII TEHNICE:

BROSURA PRODUS:

MANUAL DE OPERARE:

Categorie de produse: Masurare forta

Material Carcasa: plastic

Dimensiuni carcasa (fara piese detasabile): 71×31×180 mm

Greutate neta: 0,45 kg

Stoc limitat

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Cod Produs: FS 4-50 Ai nevoie de ajutor? +40799 938 183 / +40729 668 980

Adauga la Favorite

~~7.424,55 RON~~ 6.904,83 RON * *plus costuri de livrare, TVA inclus

Stoc limitat

Durata de livrare: Consulta pagina informatii livrare!

Limita stoc

Adauga in cos

Compara

Standard:

Measuring with tolerance range (function to set limits)

Optionale:

Descriere

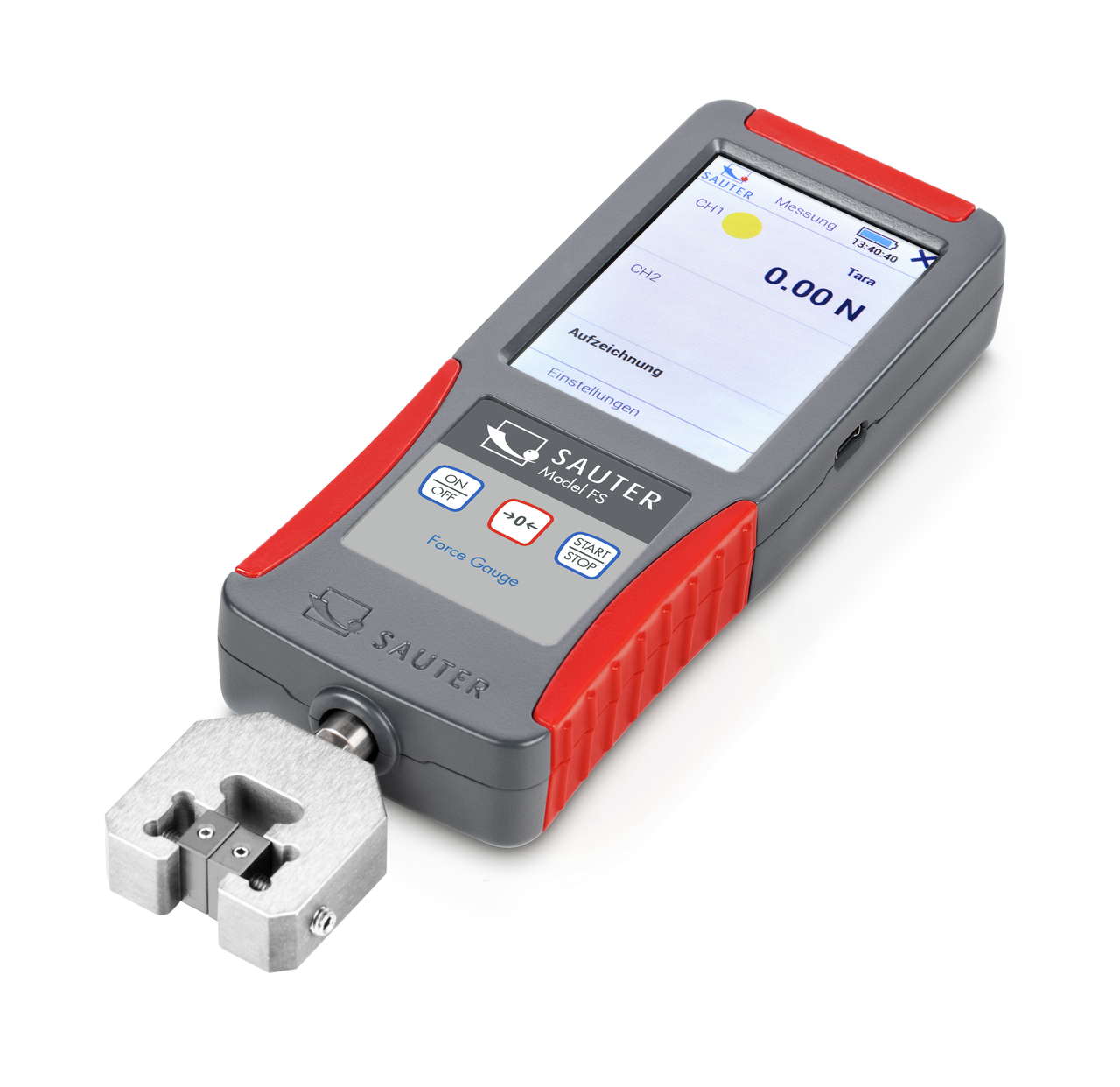

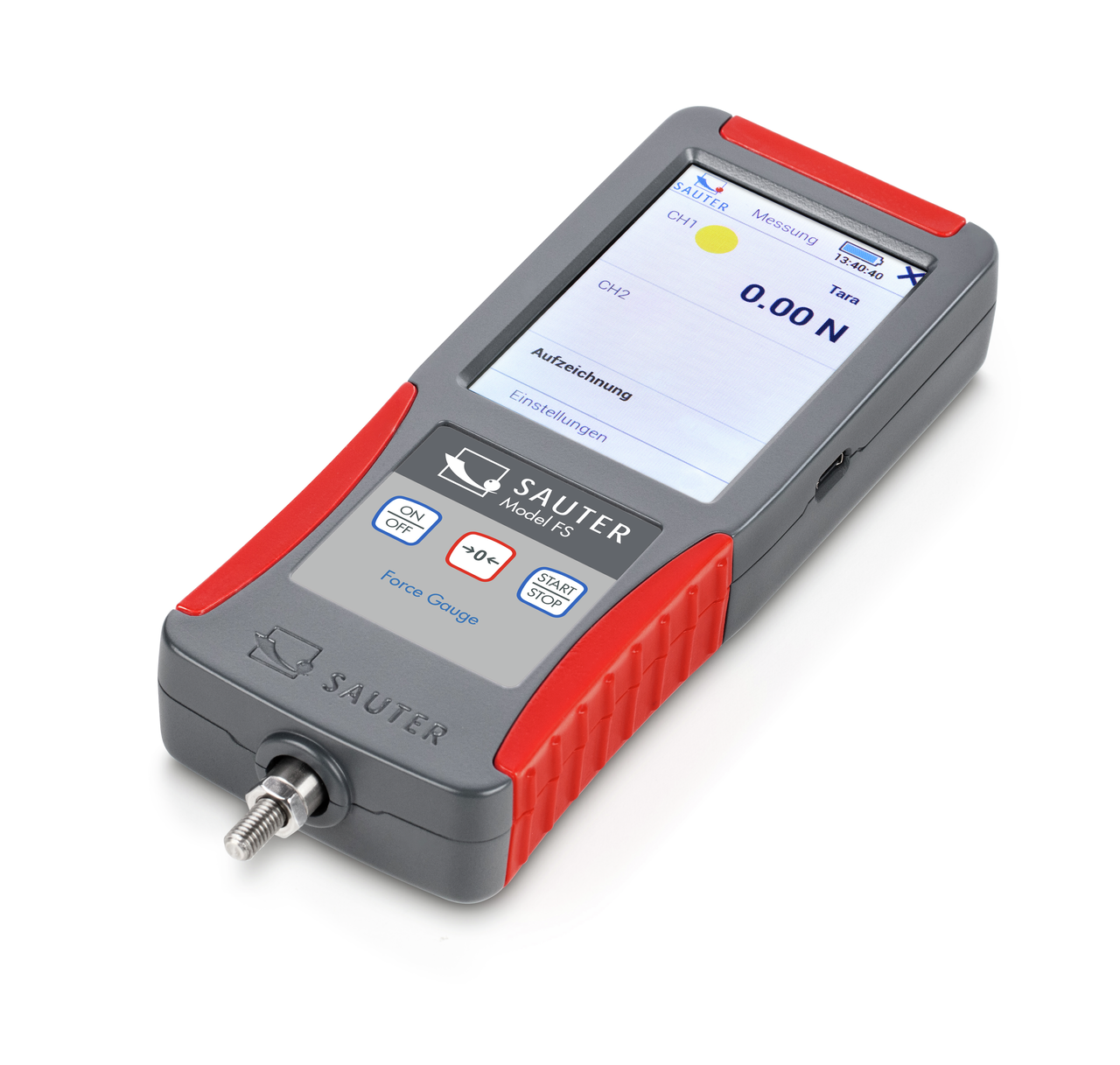

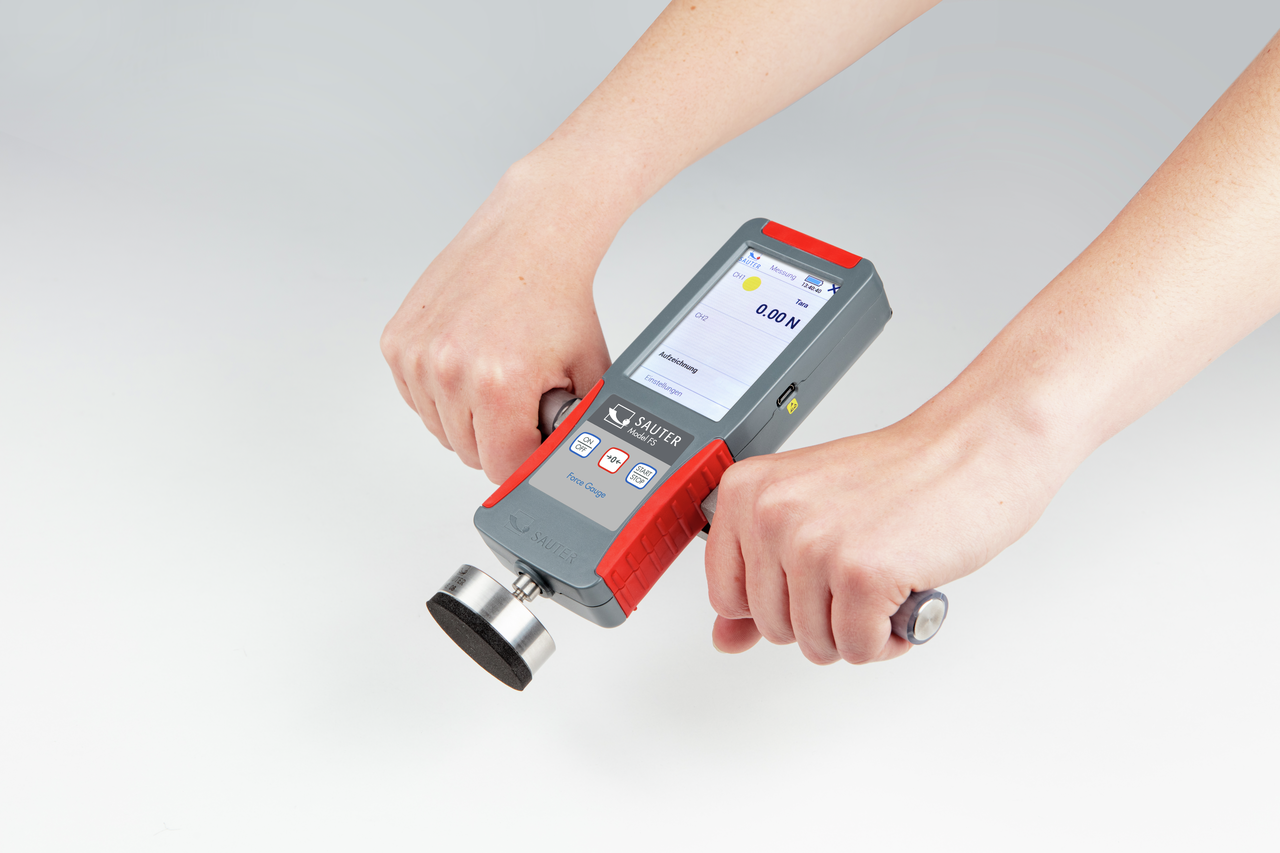

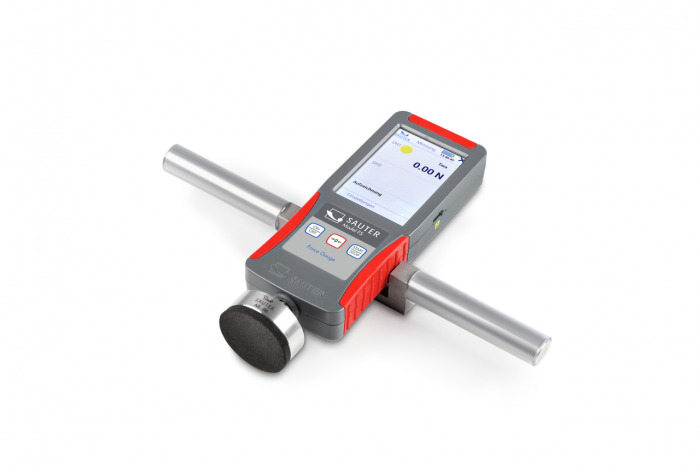

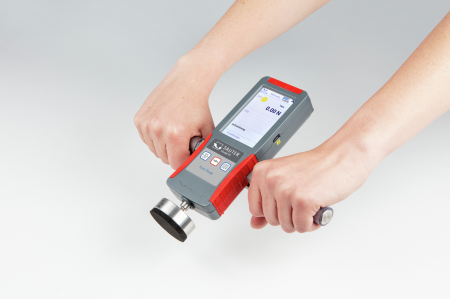

Use with integrated load cell
The SAUTER FS premium force gauge has an load measuring cell for tensile and compressive force applications. Either mobile for rapid testing or stationary integrated into a test stand or production line, the multifunction display allows all the values recorded to be read off at a glance in real time. Via the integrated interface, the data can be sent to a PC or laptop for further processing.

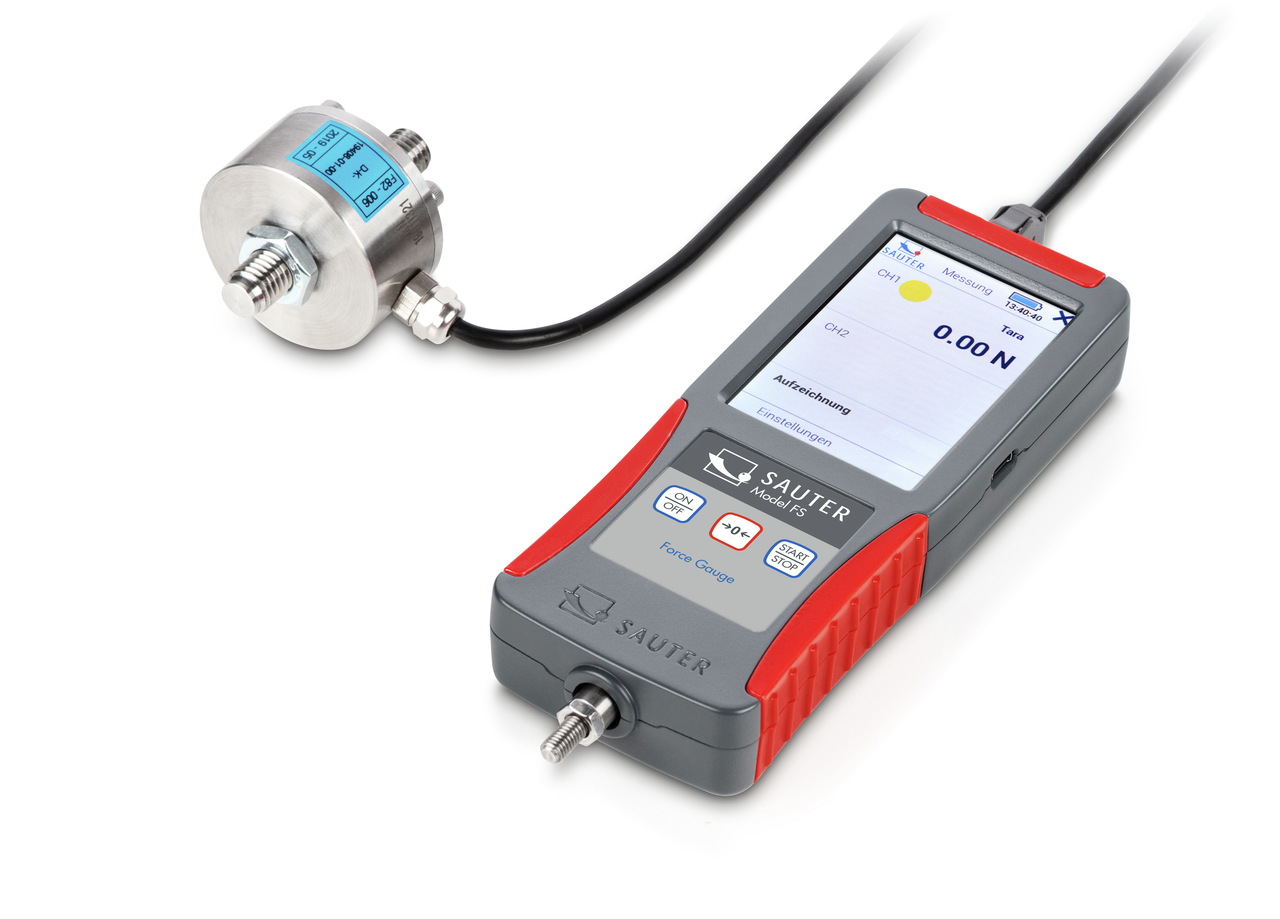

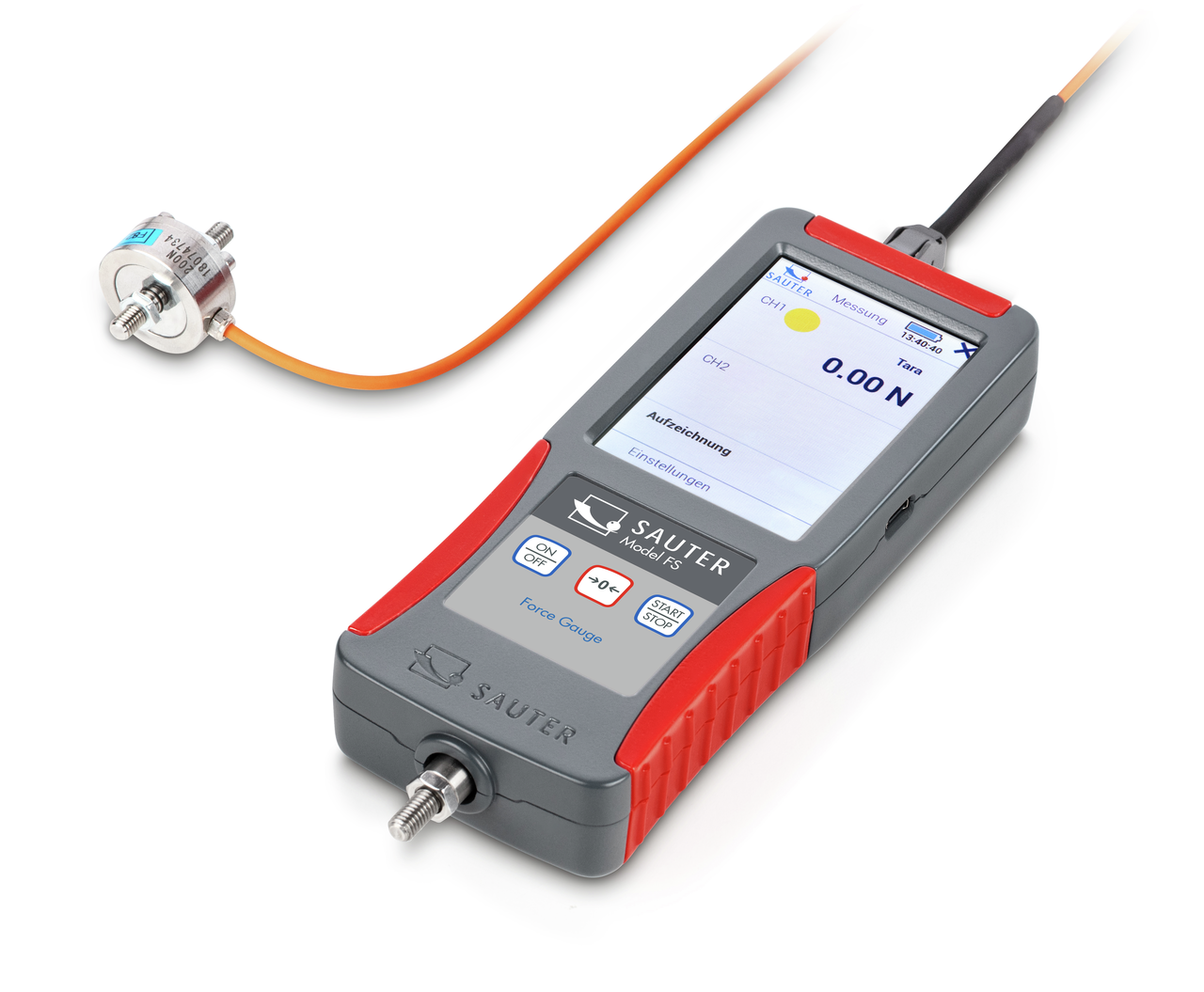

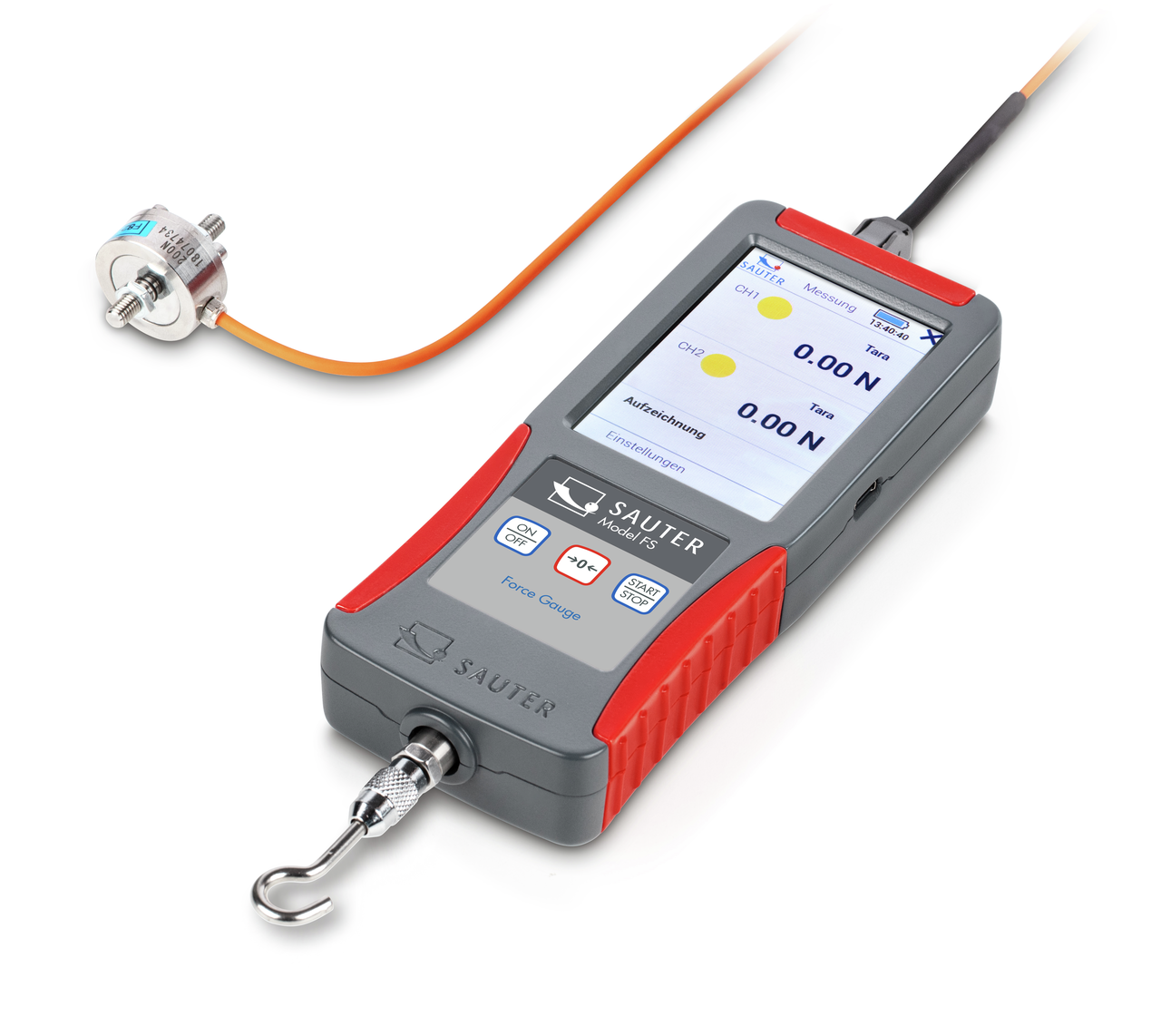

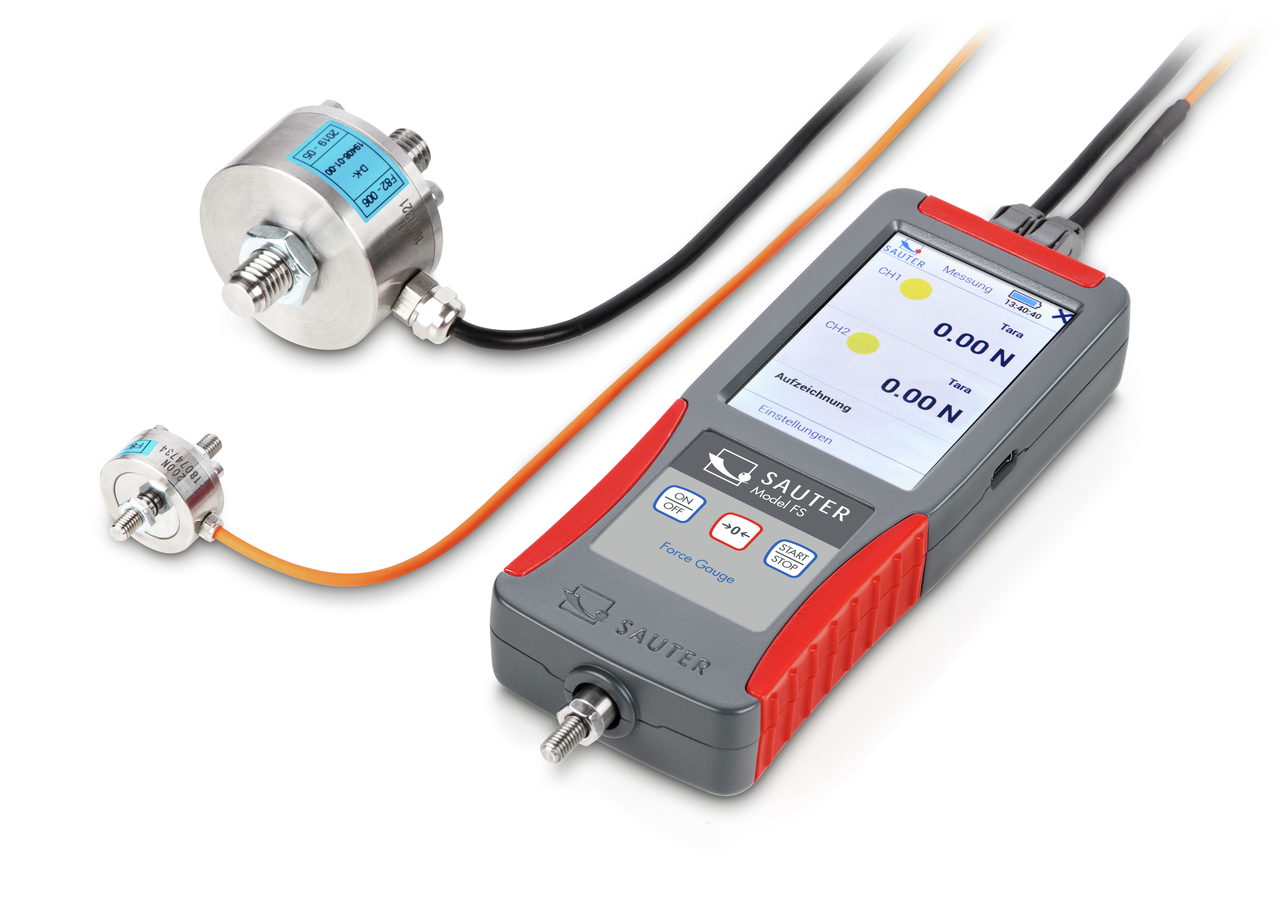

Use with external load cells

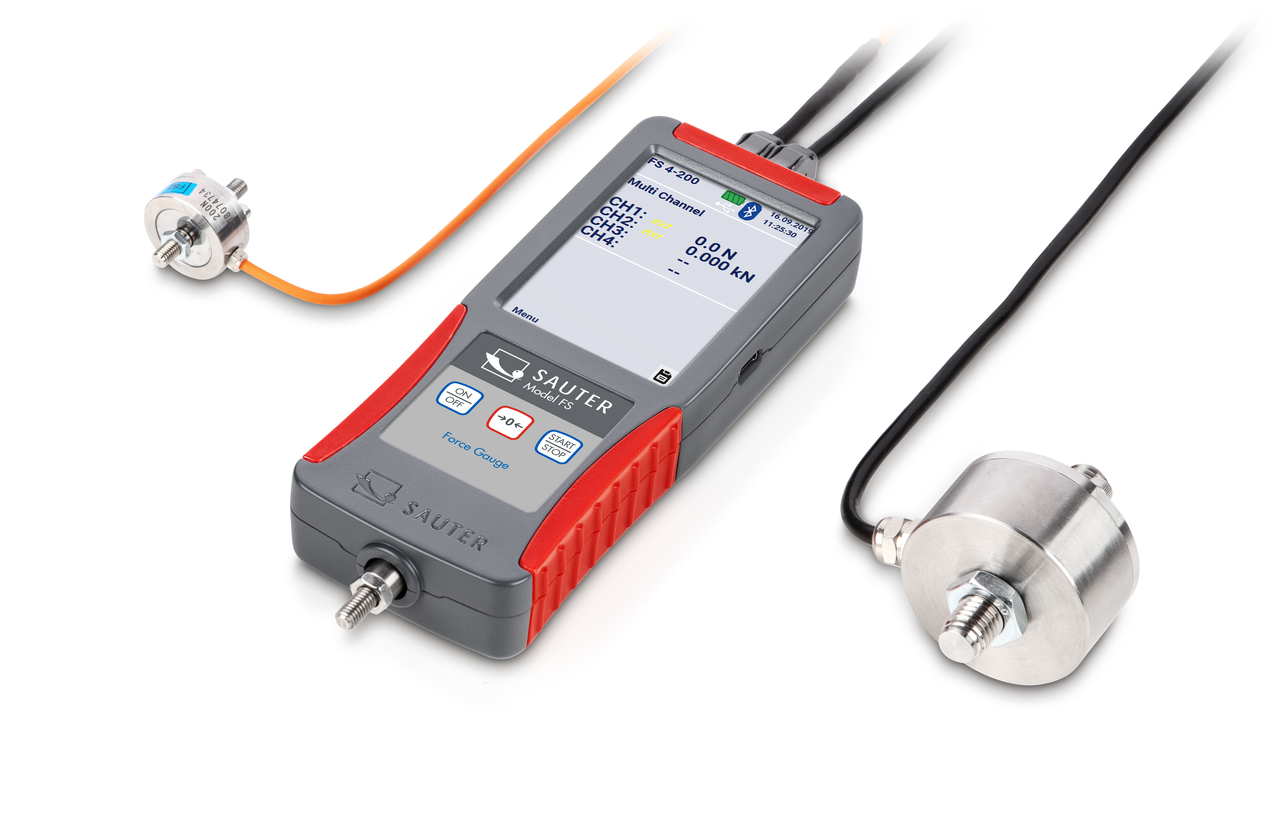

The SAUTER FS premium force gauge is compatible with all SAUTER strain gauge measuring cells, see measuring cells. Up to 4 external measuring cells can be connected simultaneously. If an external measuring channel is used, the internal load cell is deactivated as long as an external load cell is connected.
Measurement of forces in different tensile or compression directions possible with only one measuring device

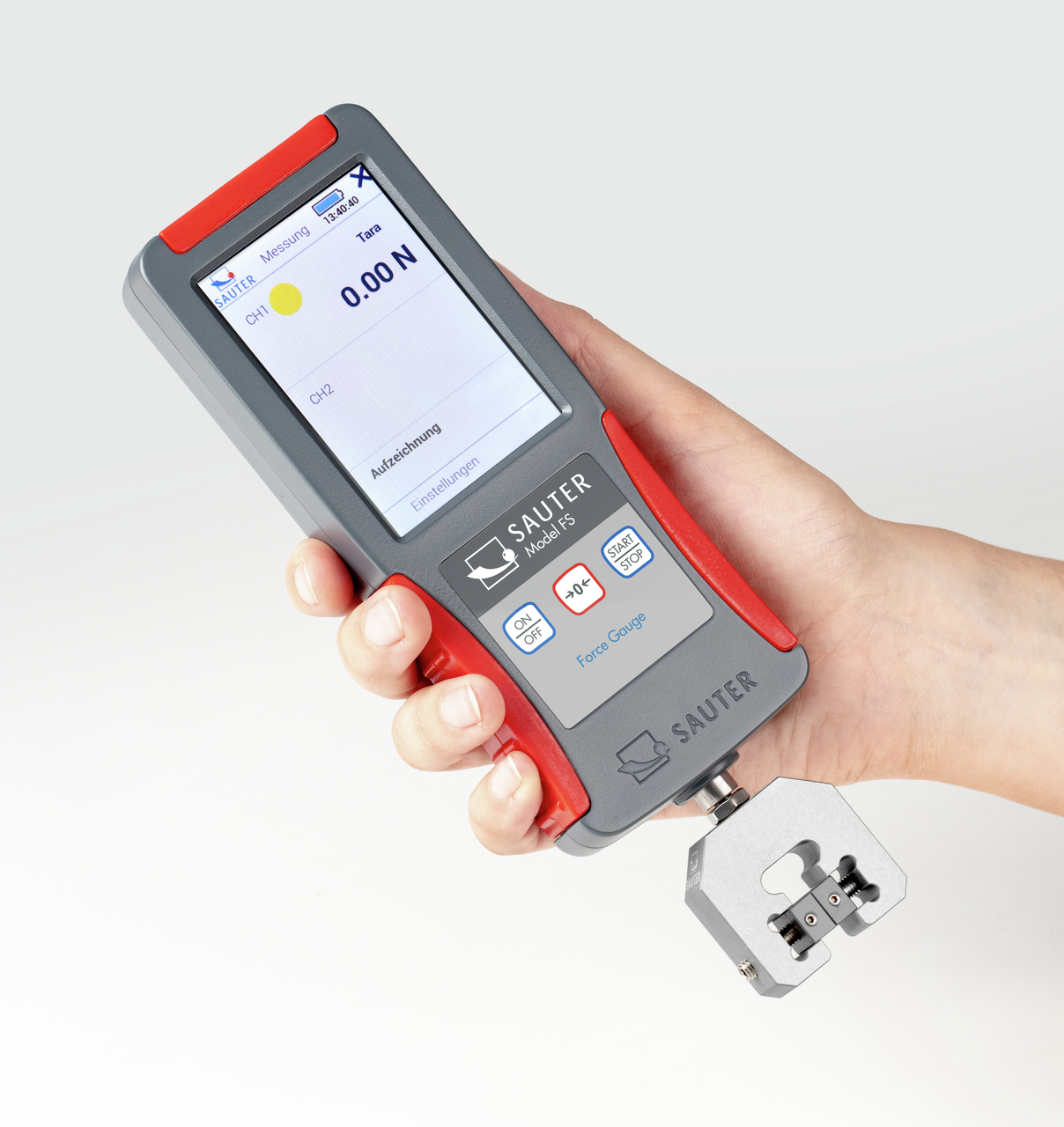

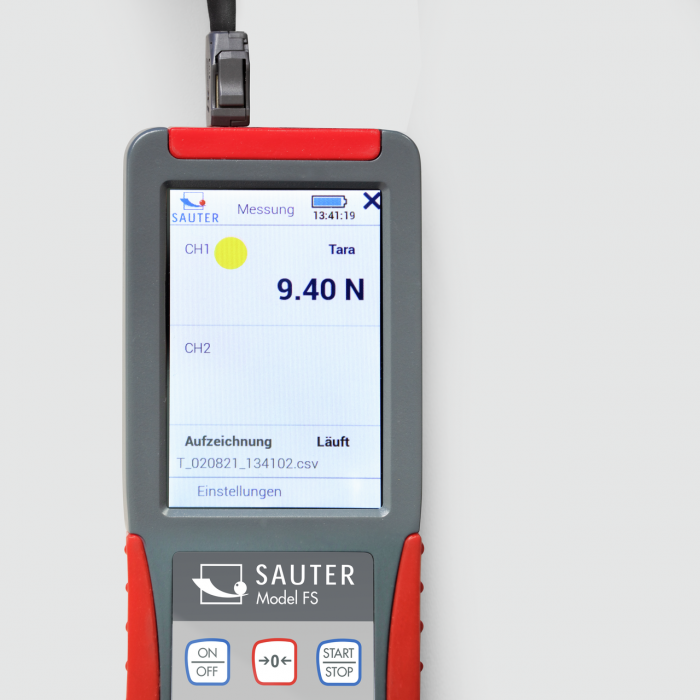

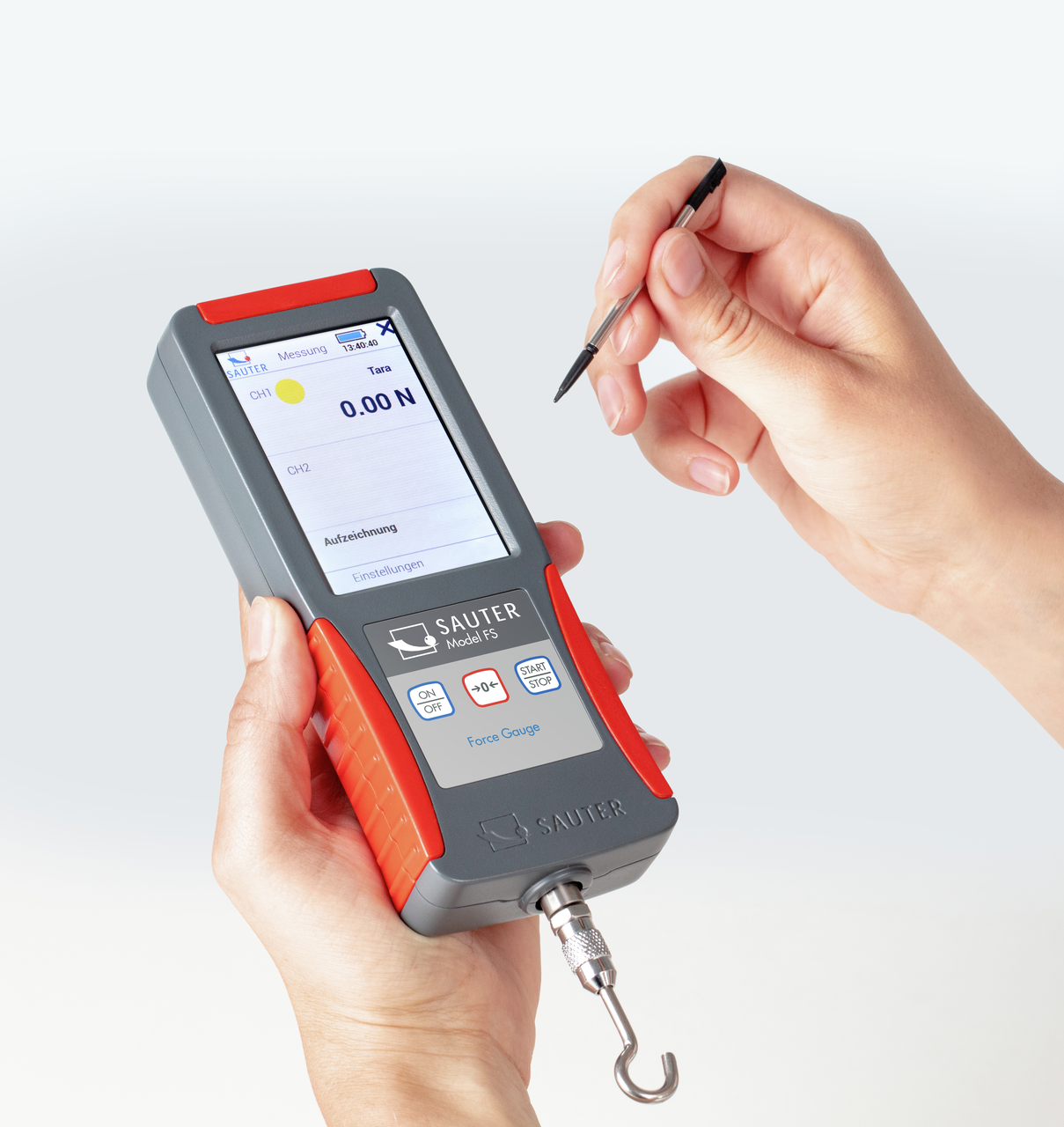

3,5" touchscreen

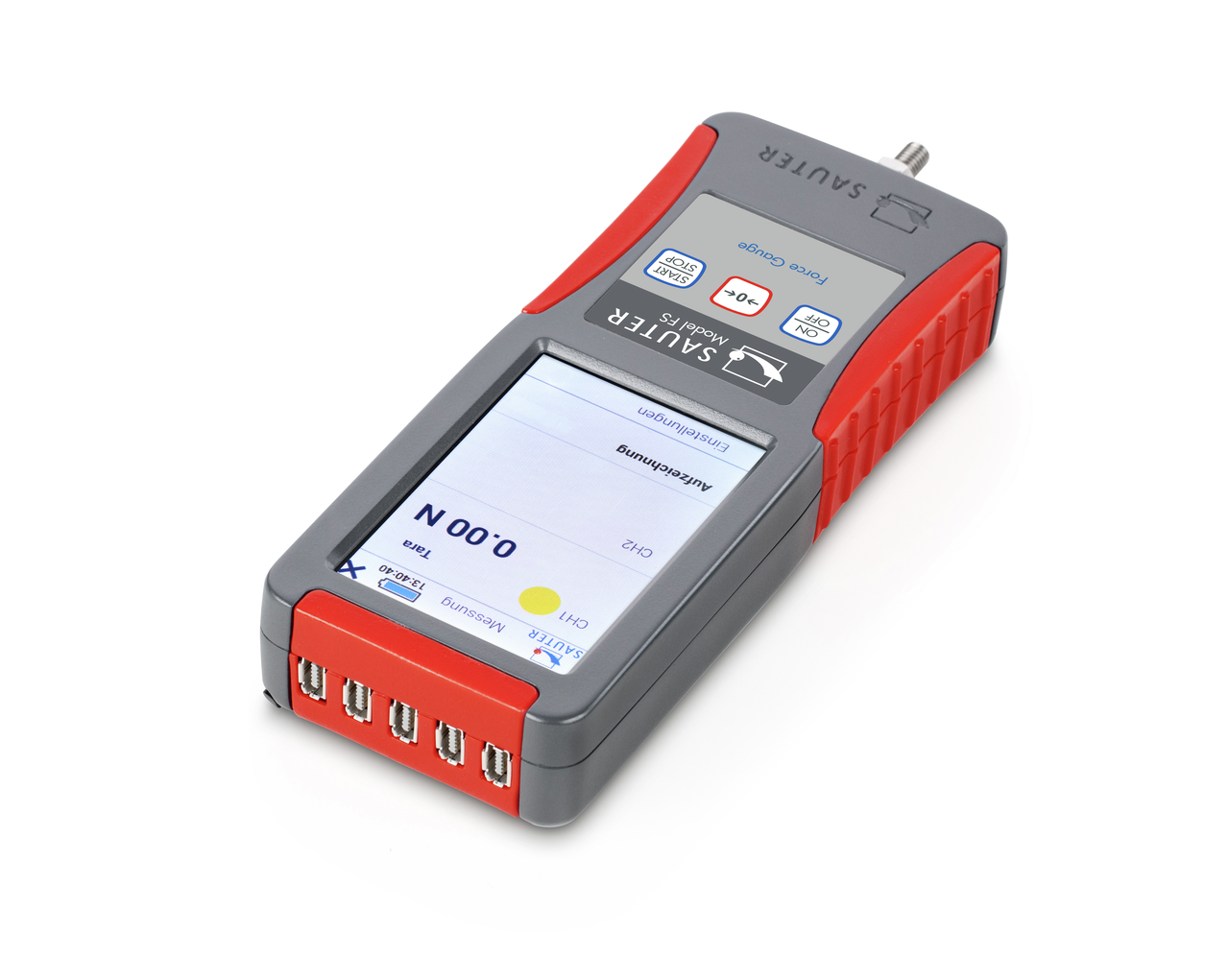

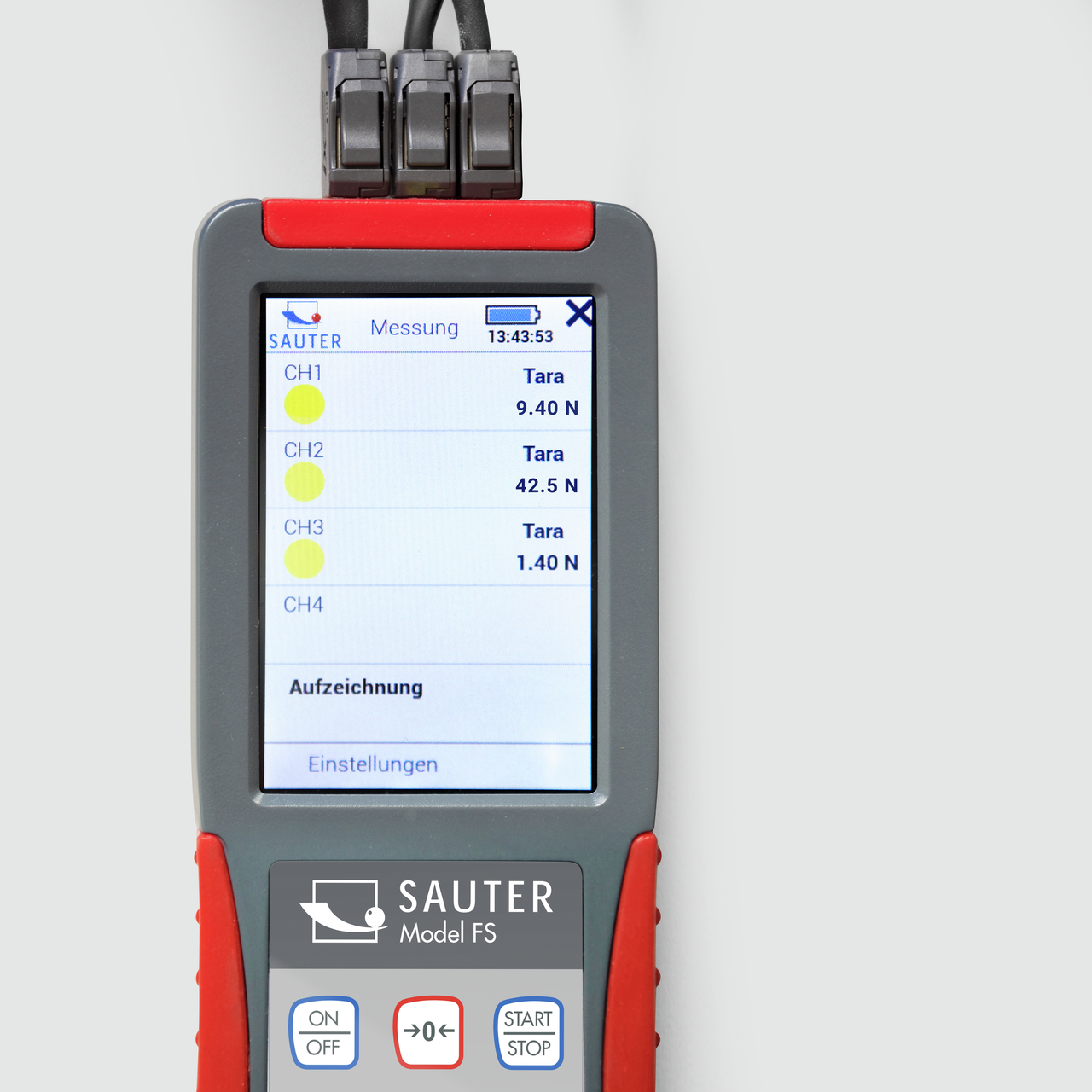

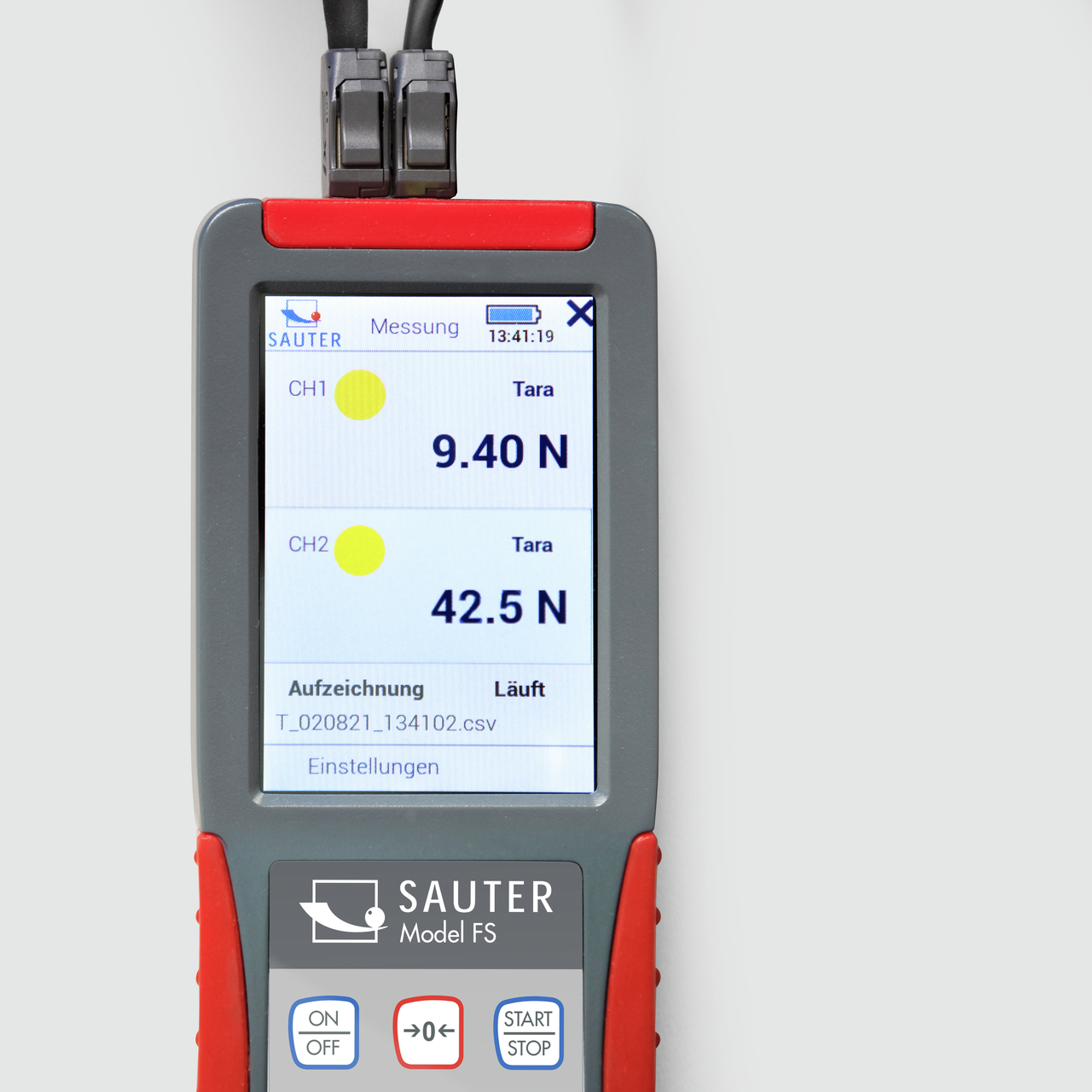

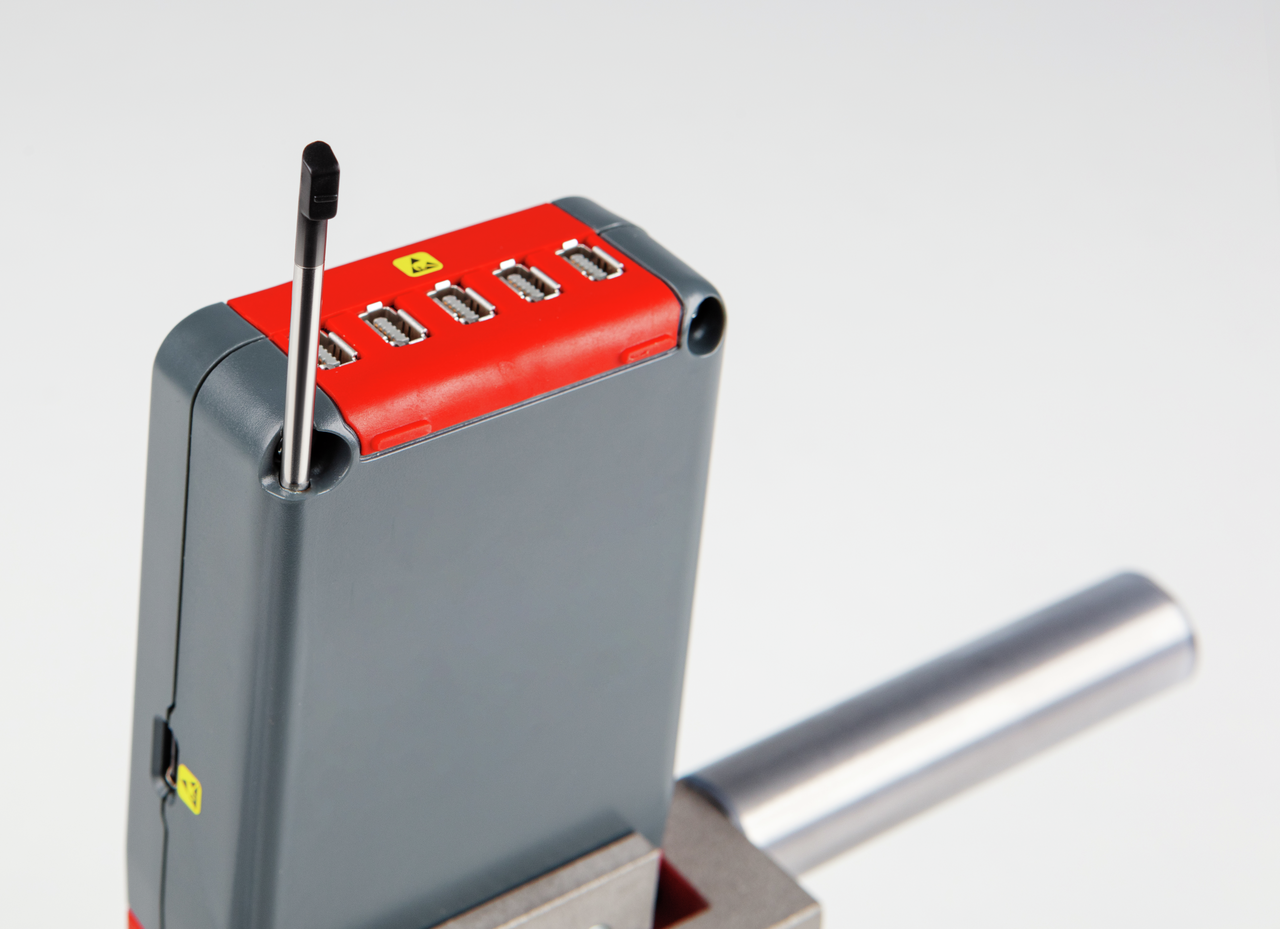

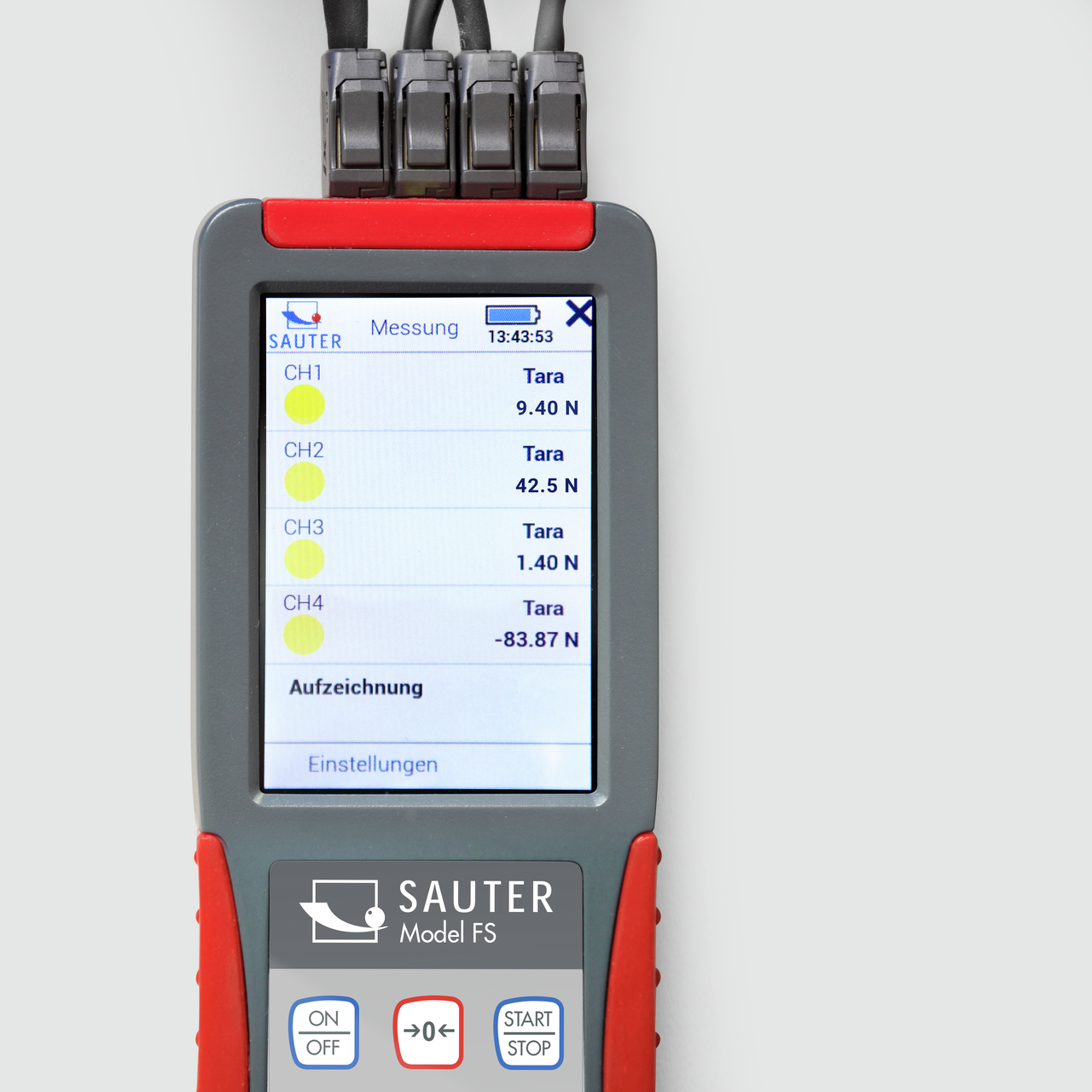

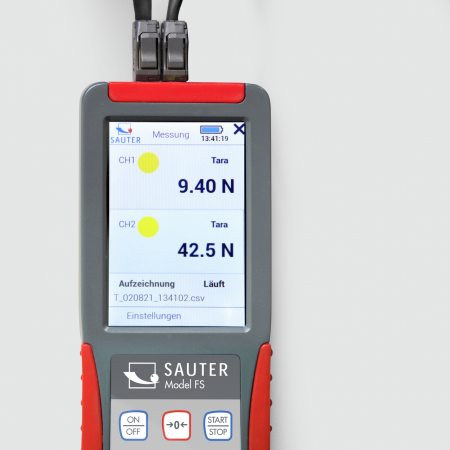

Standard version with 4 measuring channels for external force sensors
An internal load cell is possible (is deactivated if an external load cell is connected)
Suitable for 4-wire and 6-wire sensors with strain gauges
Two-point adjustment with weights or numerical adjustment possible
The specific data of an external sensor are stored directly in the connector

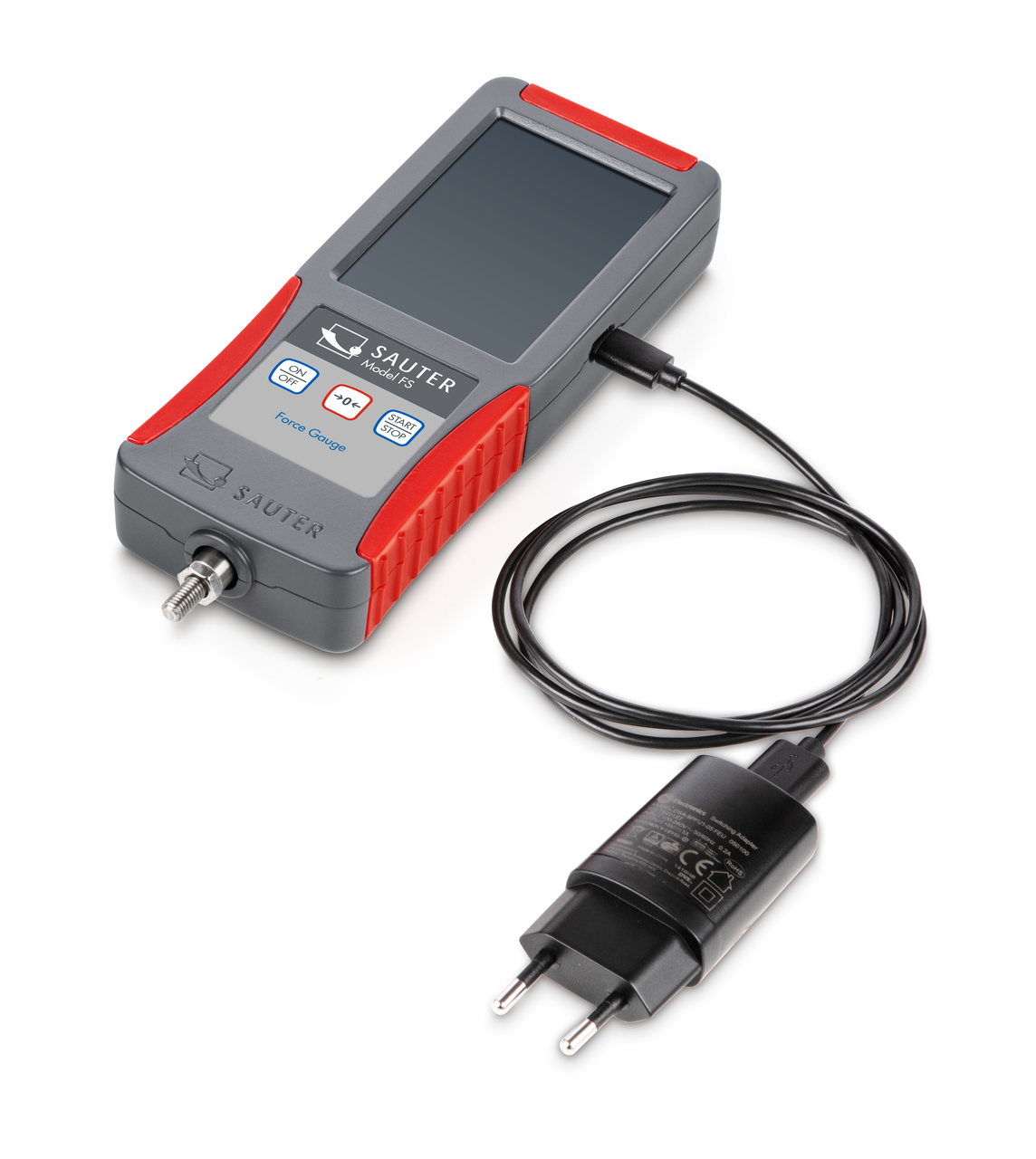

USB interface for data transfer and power supply as standard
Internal device memory (16 GB)
Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm
Tolerance function
Track function for continuous measurement display
Peak value measurement

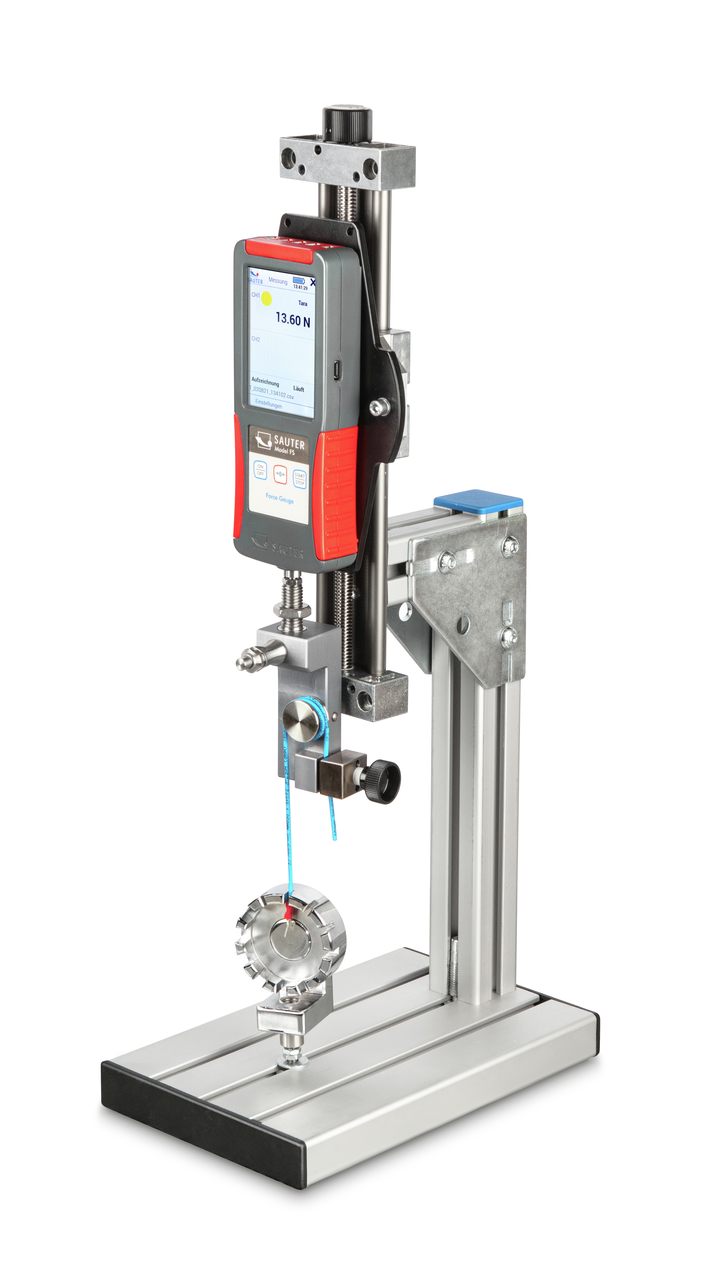

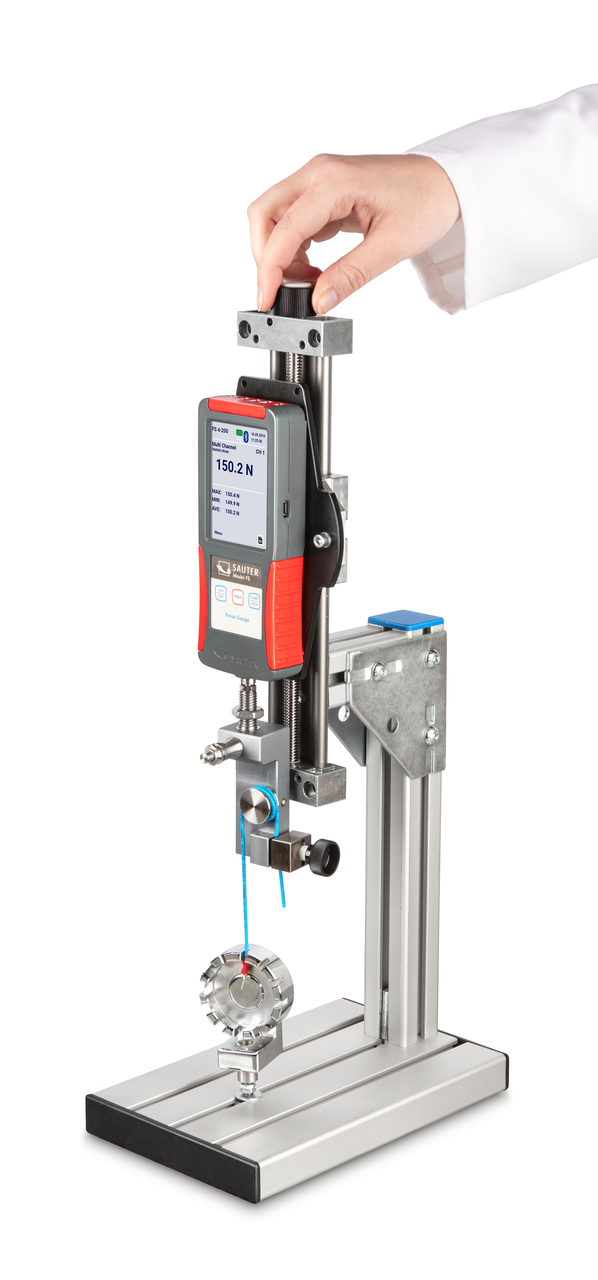

Mountable on all SAUTER test stands
Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C
Tip: Order the practical system case (systainer® T-LOC) for storing and transporting of accessories, clamps, sensors, etc. at the same time, SAUTER FS TKZ, see accessories
