Dispozitiv digital pentru masurarea fortei SAUTER FS 2-100KSP1
Economisesti: 731,13 RON
SPECIFICATII TEHNICE:
BROSURA PRODUS:
MANUAL DE OPERARE:
Categorie de produse: Masurare forta
Material Carcasa: plastic
Greutate neta: 8 kg
Durata de livrare: Consulta pagina informatii livrare!
Standard:
Optionale:
Descriere

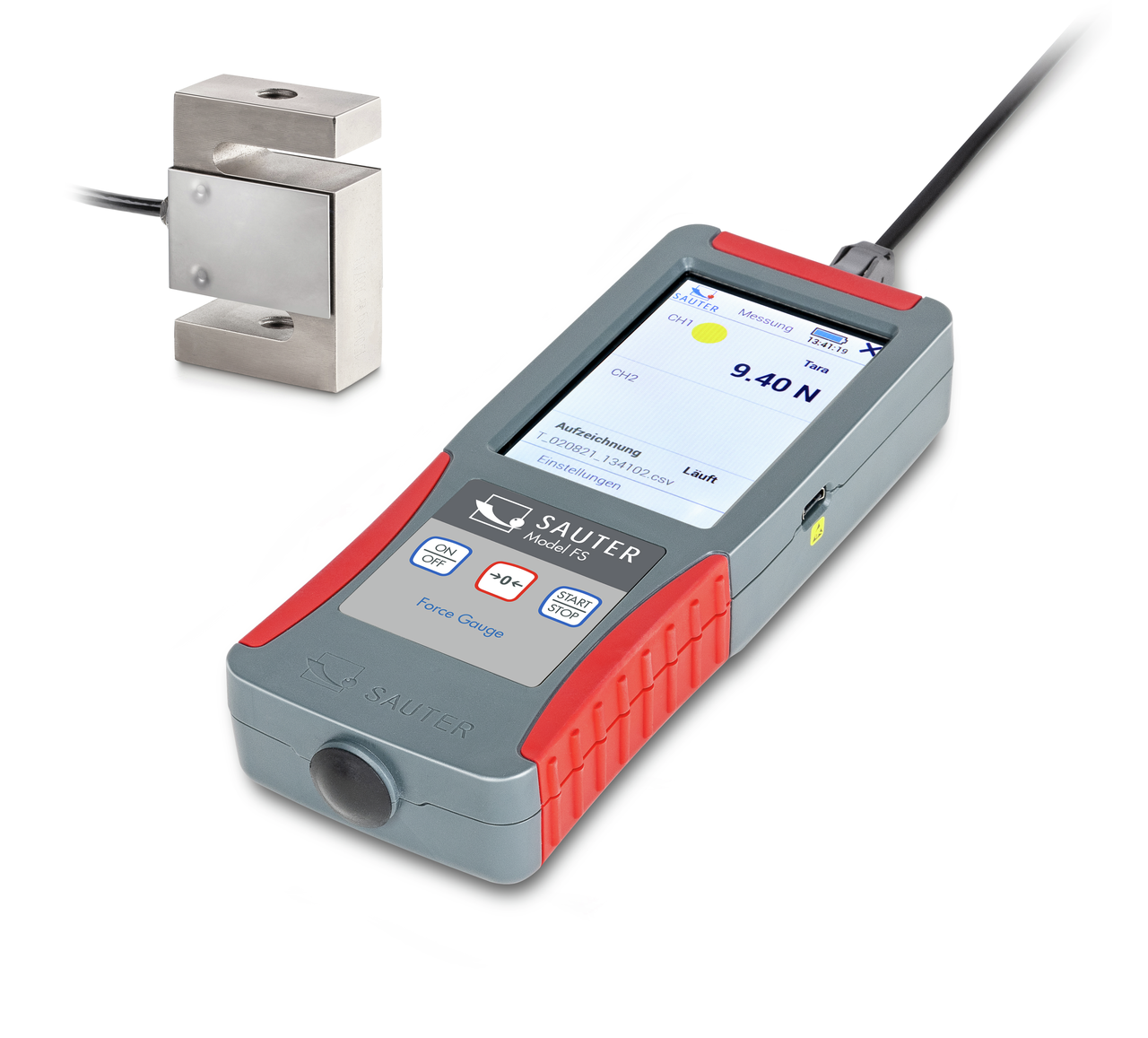

Premium force-measuring device FS 2
- Measurement of forces in different tensile or compression directions possible with only one measuring device
- 3,5" touchscreen
- Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
- The specific data of an external sensor are stored directly in the connector
- Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm
- Track function for continuous measurement display
- Peak value measurement
- Tolerance function
- Internal device memory (16 GB)
- USB interface for data transfer and power supply as standard
- Two-point adjustment with weights or numerical adjustment possible
- Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C
4-wire “S” measuring cell made of nickel-plated steel for force and mass measurement CS 10000-3P1
- Accuracy class in accordance with OIML C3
- Nominal sensitivity: 2 mV/V
- Protection against dust and water splashes IP67 (in accordance with EN 60529), hermetically encapsulated
- Area of application: for tensile and compressive force measurement
Timp de incarcare baterie: 8 h
Timp de functionare baterie: 5 h
Tensiune de intrare alimentare: 100 V - 240 V, 50 / 60 Hz
Tip adaptor alimentare: EURO
Tip sursa de alimentare: USB including power supply
Numar UN: 3481
Greutate bruta: 10 kg
