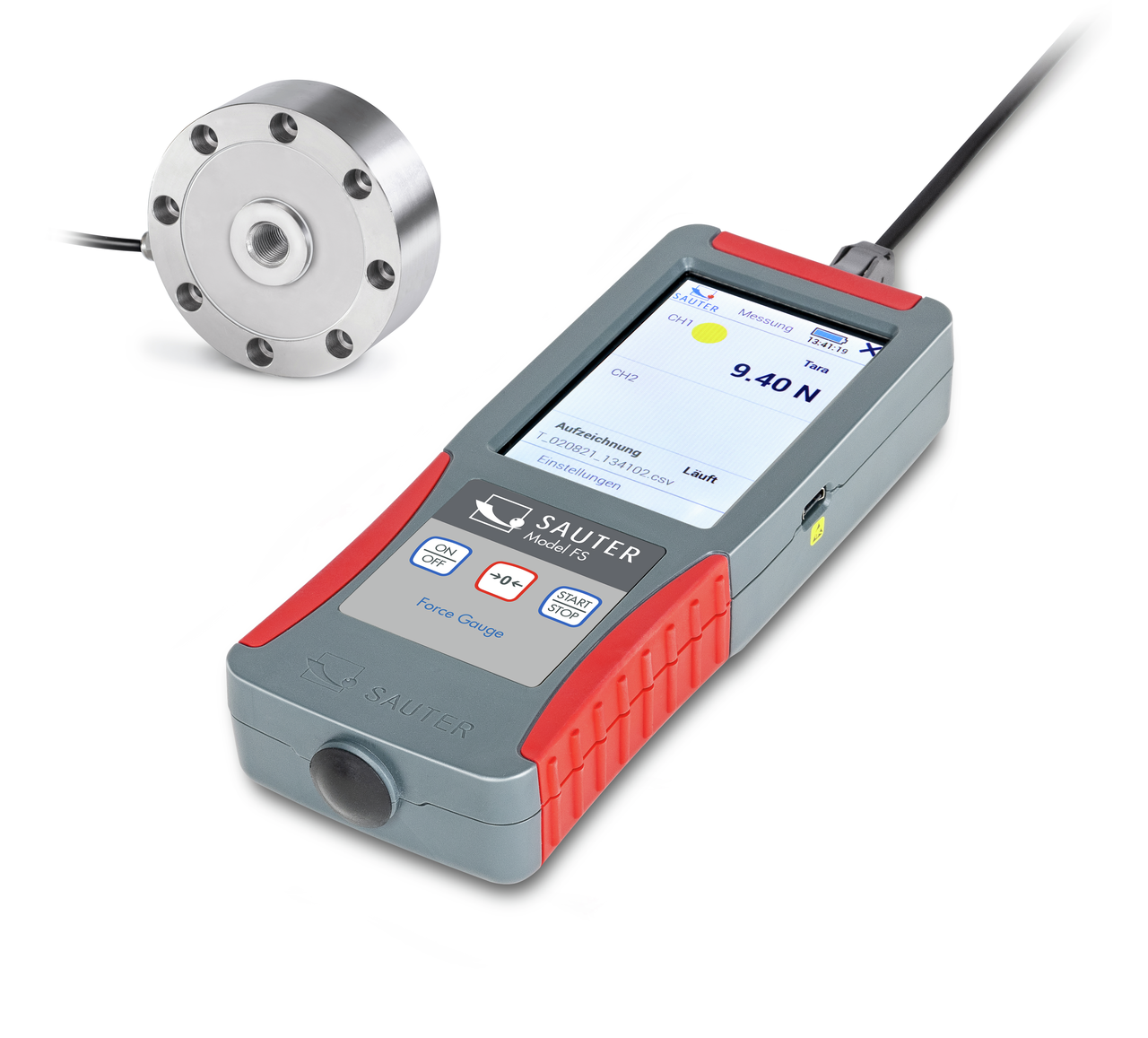

Dispozitiv digital pentru masurarea fortei SAUTER FS 2-10KRY1
Economisesti: 607,81 RON
SPECIFICATII TEHNICE:
BROSURA PRODUS:
MANUAL DE OPERARE:
Categorie de produse: Masurare forta
Material Carcasa: plastic
Greutate neta: 2,0 kg
Durata de livrare: Consulta pagina informatii livrare!
Standard:
Optionale:
Descriere
Premium force-measuring device FS 2
- Measurement of forces in different tensile or compression directions possible with only one measuring device
- 3,5" touchscreen
- Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
- The specific data of an external sensor are stored directly in the connector
- Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm
- Track function for continuous measurement display
- Peak value measurement
- Tolerance function
- Internal device memory (16 GB)
- USB interface for data transfer and power supply as standard
- Two-point adjustment with weights or numerical adjustment possible
- Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C
Load cell made of alloyed steel CR 1000-1Y1
- Accuracy class in accordance with OIML C1
- High precision (comprehensive Error 0,05% F.S.)
- Nominal sensitivity: 2 mV/V
- Protection against dust and water splashes IP68 (in accordance with EN 60529), hermetically encapsulated
- Area of application: for tensile and compressive force measurement
Timp de incarcare baterie: 8 h
Timp de functionare baterie: 5 h
Tensiune de intrare alimentare: 100 V - 240 V, 50 / 60 Hz
Tip adaptor alimentare: EURO
Tip sursa de alimentare: USB including power supply
Numar UN: 3481
Greutate bruta: 3,0 kg
Servicii
Accesorii
Recomandari
Alimentare electrica YKA-01
Celula de sarcina SAUTER CO 0.5-Y5
Celula de sarcina SAUTER CO 1000-Y1
Celula de sarcina SAUTER CO 1000-Y2
Celula de sarcina SAUTER CO 100-Y1
Celula de sarcina SAUTER CO 100-Y2
Celula de sarcina SAUTER CO 10-Y1
Celula de sarcina SAUTER CO 10-Y2
Celula de sarcina SAUTER CO 10-Y3
Celula de sarcina SAUTER CO 10-Y4
Celula de sarcina SAUTER CO 10-Y5
Celula de sarcina SAUTER CO 1-Y5
Celula de sarcina SAUTER CO 2000-Y1
Celula de sarcina SAUTER CO 2000-Y2

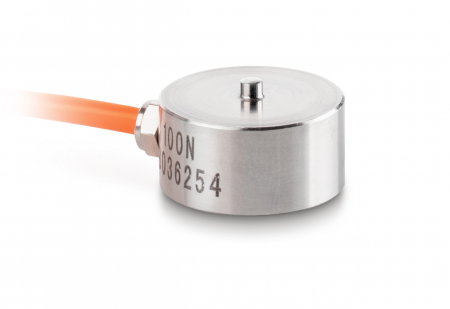

Celula de sarcina SAUTER CO 200-Y1

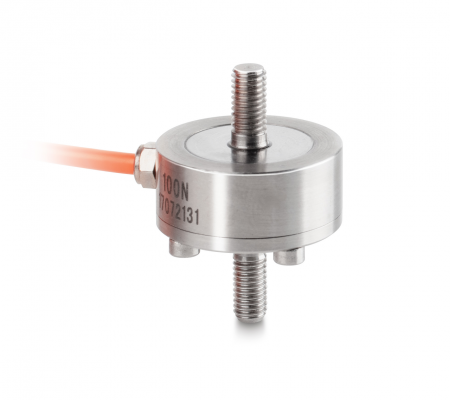

Celula de sarcina SAUTER CO 200-Y2
