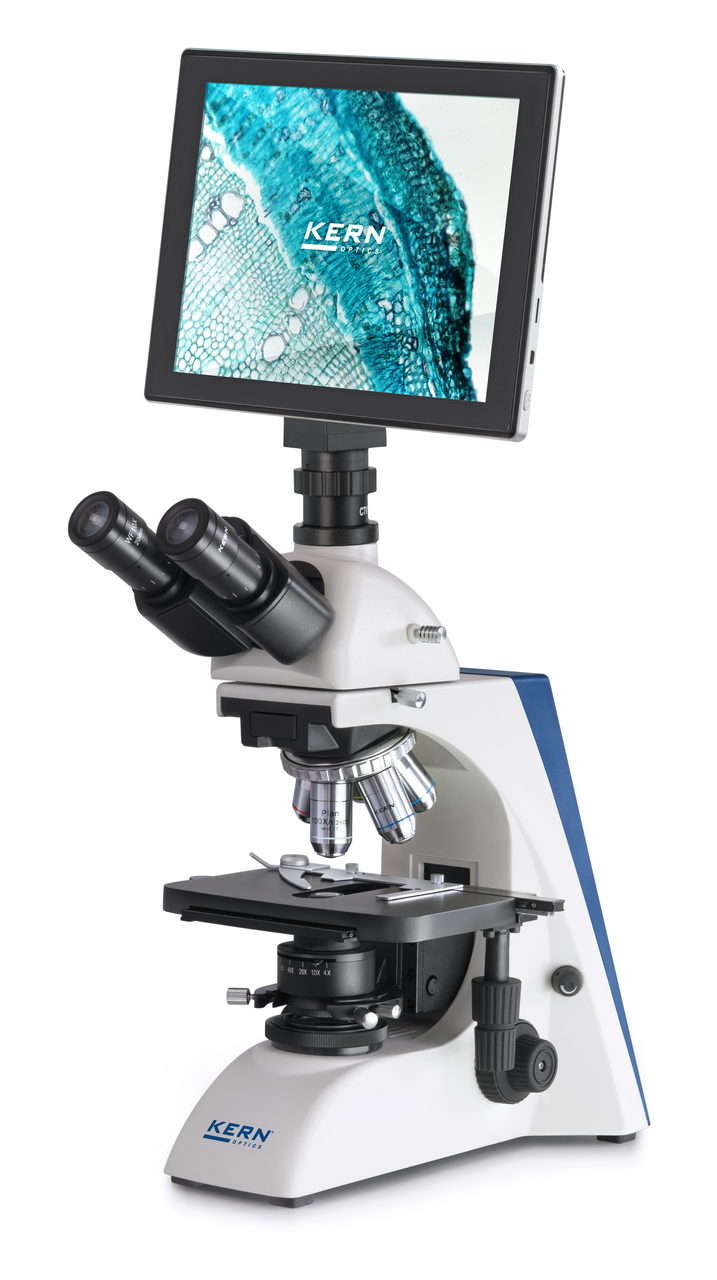

Microscop Digital KERN OBN 135T241

• The laboratory microscopes from the OBN series are also available to you as a comprehensive digital solution with an mounted tablet camera for your live investigations. Naturally, the appropriate C-mount adapter is included with the delivery
• The mounted KERN ODC 241 tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen. Ideally suited for school pupils and students in education or for demonstration purposes in the laboratory
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.

OBN 135

• The OBN- series stands out because of its unbeatable and consistently high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user.
• Strong and continuously dimmable 3W-LED illumination
• This series has a professional Koehler illumination unit with an adjustable field diaphragm as well as a height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diaphragm.
• The extremely large mechanical stage with ergonomic, coaxial coarse and fine focusing knob on both sides enables you to adjust and focus your sample rapidly and accurately

ODC 241

• As well as a live transfer of theimage to the Android tablet, the integrated 5-MP cameraalso means that images and videos can becreated for the documentation.Simple measuring functions, such as, for example, functionsfor measuring distance, surfaces andangles as well as a manual counting function arealso available
• Automatic white balance and automatic contrast adjustment can be performed quickly and easily, which enables efficient working procedures
• A range of additional functions are provided through the integrated interfaces, such as, for example
  - Data storage on a USB stick or SD card
  - Connection to a USB mouse
  - Transfer of the live image to an external screen using HDMI
  - Transfer of stored data to external receivers using WLAN
• The delivery includes the tablet camera with pre-installed software as well as the power pack
